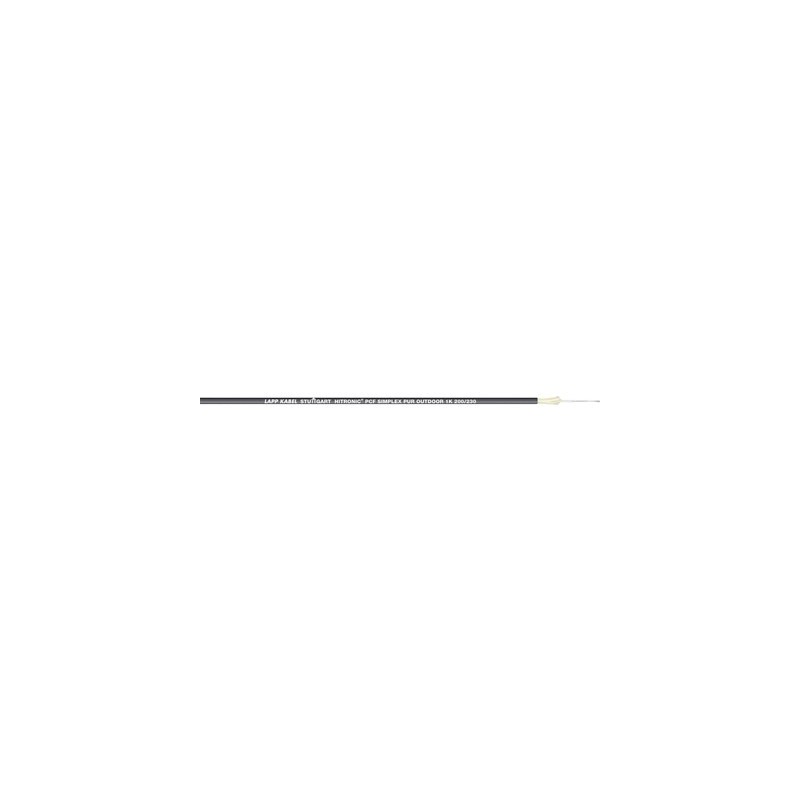

28600701 HITRONIC PCF SIMPLEX PUR Outdoor LAPP HITRONIC PCF SIMPLEX PUR Outdoor
28600701
HITRONIC PCF SIMPLEX PUR Outdoor
LAPP
100 m.
HITRONIC PCF SIMPLEX PUR Outdoor
HITRONIC® PCF SIMPLEX Cable
Cables > Fibre optic cable
HITRONIC cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲HITRONIC® PCF SIMPLEX cable for different applications, sub-cable diameter 2.9 mm, cable colour black; A-V(ZN)11Y
For direct connector assembly
Benefits
- Transmission lengths up to 500 m
- Suitable for direct connector assembly
- High mechanical strength
- UV-resistant
- EMC protection
Application range
- For data transmission in field bus systems, such as PROFIBUS, INTERBUS etc.
- Industrial environments
Product features
- Possible transmission wavelengths:
650 nm and 850 nm - Outer sheath flame-retardant and halogen-free
Product Make-up
- Tight-buffered fibres
- Aramid yarns as strain relief
- PUR outer sheath
- Colour: black (RAL 9005)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000034
- ETIM 5.0 Class-Description: Fibre optic cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000034
- ETIM 6.0 Class-Description: Fibre optic cable
Dimensions
- 2.9mm
Fibre type
- PCF - K200/230
- PCF - Polymer Cladded Fibre
Minimum bending radius
- Static: ≥ 15 x outer diameter
- Dynamic: ≥ 20 x outer diameter
Standard designation
- A-V(ZN)11Y
Optical fibre type
- Core material: glass
- Cladding material: fluoropolymers
Permissible tensile force
- Fixed installation: 200 N
Temperature range
- Operation: -10°C to +60°C
- Installation: -10°C to +50°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 28600701 HITRONIC PCF SIMPLEX PUR Outdoor 28600701 EN_28600701.pdf | 171 Kbytes |
|
