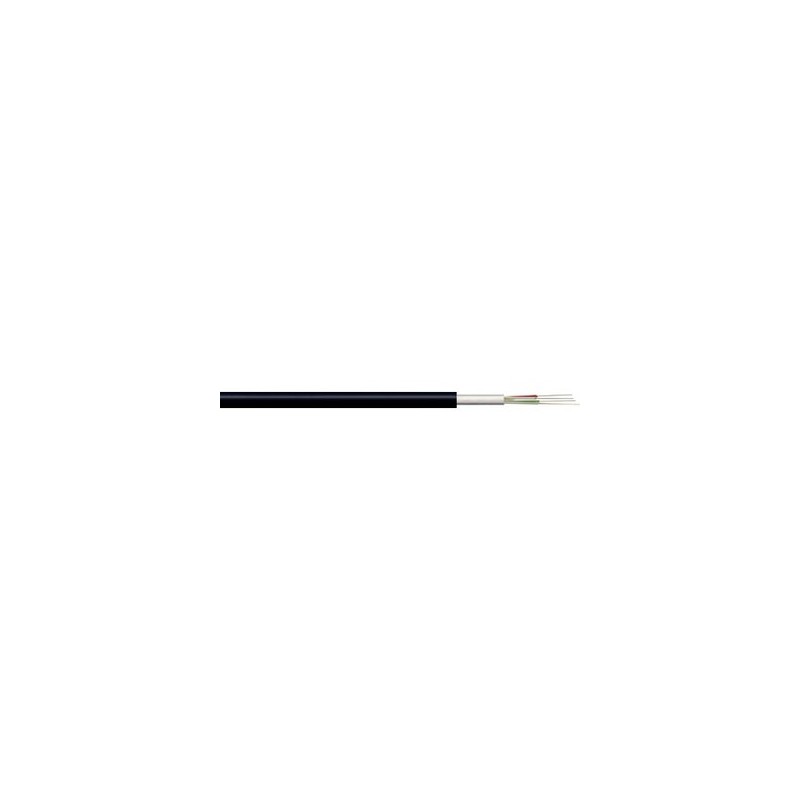

26609996 HITRONIC HVN-Mini1200 8x12E 9/125 OS2 LAPP Mini outdoor cable designed for
26609996
HITRONIC HVN-Mini1200 8x12E 9/125 OS2
LAPP
HITRONIC HVN-Mini1200 8x12E 9/125 OS2
Cables > Fibre optic cable
HITRONIC cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲HITRONIC® HVN-Mini-Kabel for pipe systems, cable with reduced outer diameter; A-DQ(ZN)B2Y with single-mode or multimode fibres
Benefits
- Suitable for blowing into ducts
- Compact dimensions
- UV-resistant
longitudinally and laterally watertight - Zero electromagnetic interference as the cable contains no metal (totally dielectric)
Application range
- Backbone-Area, FTTH applications
- Telecommunications network
- WAN applications
- For installations by blowing
- Methods of deployment: for blowing or pulling into ducts
Product features
- Stranded loose tubes with up to 144 fibres
(12 loose tubes with each 12 fibres) - Colour-coded fibres and loose tubes
- Reduced dimensions
- Halogen-free, low-friction outer sheath
- UV-resistant
Product Make-up
- Up to 12 stranded gel-filled loose tubes
- Central GRP strength element
- Reinforced glass yarn strain relief
- PE outer sheath
- Colour: black (RAL 9005)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000034
- ETIM 5.0 Class-Description: Fibre optic cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000034
- ETIM 6.0 Class-Description: Fibre optic cable
Fibre type
- GOF - Glass Optical Fibre
- Single-mode
E9/125 OS2
Standard designation
- A-DQ(ZN)2Y
Optical fibre type
- Core material: glass
- Cladding material: glass
Permissible bending radius
- Static: ≥ 15 x outer diameter
- Dynamic: ≥ 20 x outer diameter
Temperature range
- Fixed installation: -40°C to +70°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 26609996 HITRONIC HVN-Mini1200 8x12E 9/125 OS2 26609996 26609944_EN_LAPP_PRO210603ENGB.pdf | 314 Kbytes |
|
