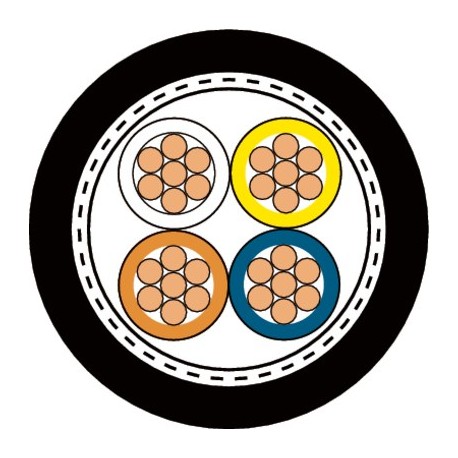

2170901 ETHERLINE Y CAT.5e BK 2x2xAWG22/7 LAPP ETHERLINE Y CAT.5e BK 2x2xAWG22/7
2170901
ETHERLINE Y CAT.5e BK 2x2xAWG22/7
LAPP
100 m.
ETHERLINE Y CAT.5e BK 2x2xAWG22/7
ETHERLINE® Y CAT.5e BK
Cables > Data and communication cable
Etherline Industrial cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Industrial Ethernet cable Cat.5 for special applications, for PROFINET application Type C; design 2x2xAWG22/7, PVC jacket
- For PROFINET applications
- CAT.5-Performance
Benefits
- UV and weather-resistant in black
- Can be used in dry or damp rooms
- Screened against interference
- Suitable for outdoor use, UV-resistant
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- Many applications with Industrial Ethernet, e.g. PROFINET type C, i.e. fixed installation and flexible use.
- Wiring of machines, tools, devices, appliances and control cabinets
- suitable for EtherCAT and EtherNet/IP applications
Product features
- PVC compound TM2 acc. to EN 50363-4-1
- Resistant to acids, alkalis and certain oils at room temperature
- Flame retardant acc. to IEC 60332-1-2

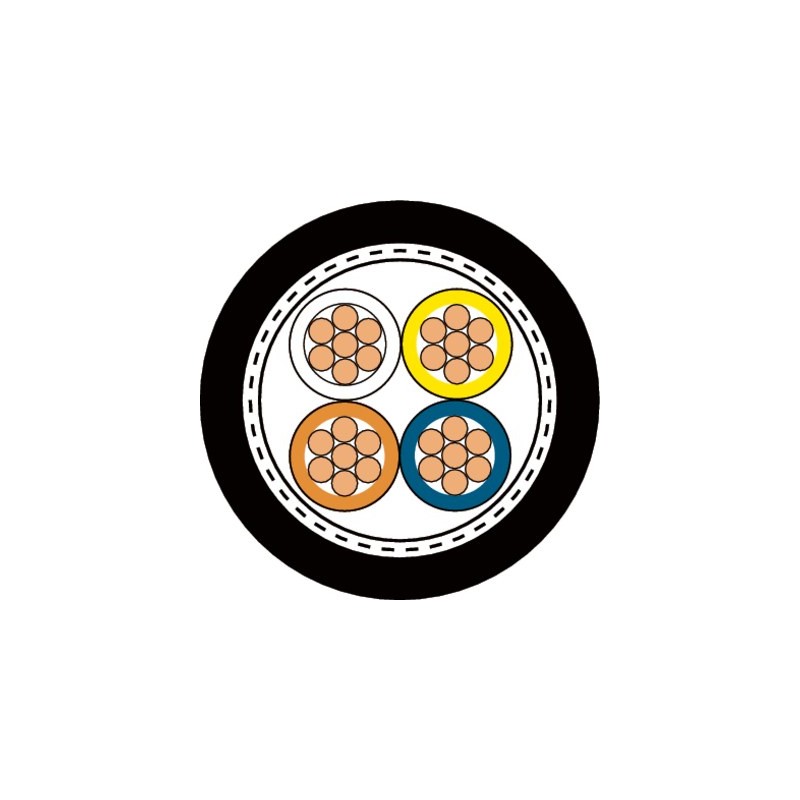

Product Make-up
- Stranded conductor, 7-wire, bare
- Core insulation: Based on Polyolefin
- Colour-coded in accordance with PROFINET for Cat.5 apllications
- Star quad
- Overall screening with copper braid and plastic-laminated aluminium foil
- PVC outer sheath, black
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- Fixed installation: 10 x outer diameter
- Flexing: 15 x outer diameter
Test voltage
- Core/core: 1000 V
- Core/screen: 500 V
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-5
Temperature range
- Flexing: -10°C to +70°C
- Fixed installation: -40°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170901 ETHERLINE Y CAT.5e BK 2x2xAWG22/7 2170901 EN_2170901.pdf | 306 Kbytes |
|
