> LAPP>UNITRONIC BUS cabling>2170216 UNITRONIC BUS IBS FD P 3X2X0,25 LAPP UNITRONIC BUS IBS FD P 3X2X0,25
Previous Product Next Product

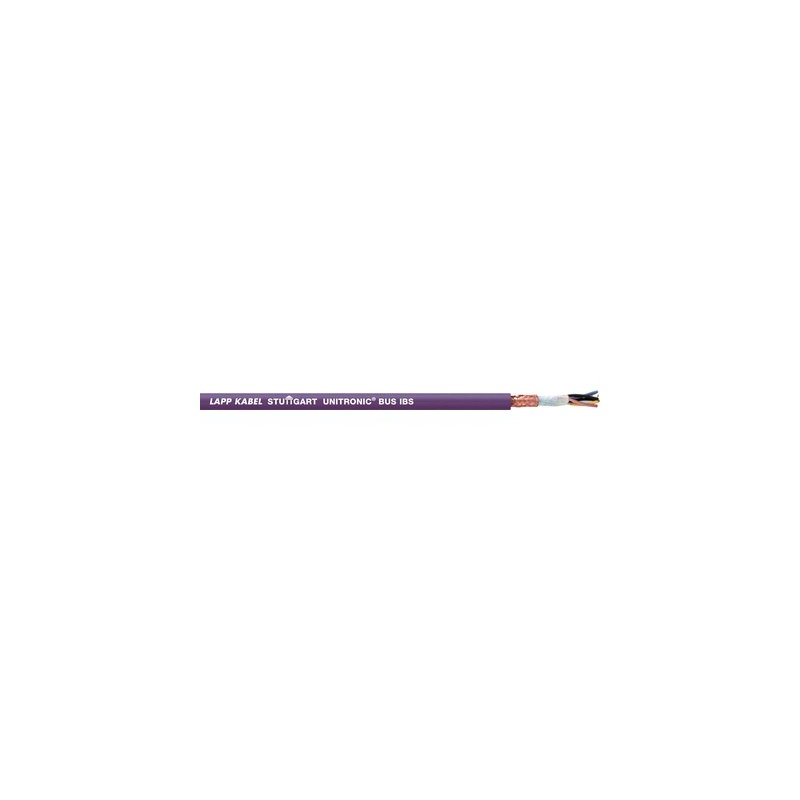

2170216 UNITRONIC BUS IBS FD P 3X2X0,25 LAPP UNITRONIC BUS IBS FD P 3X2X0,25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2170216 UNITRONIC BUS IBS FD P 3X2X0,25 LAPP UNITRONIC BUS IBS FD P 3X2X0,25

2170216

UNITRONIC BUS IBS FD P 3X2X0,25

LAPP

UNITRONIC BUS IBS FD P 3X2X0,25

UNITRONIC

More details


Cables > Data and communication cable

UNITRONIC BUS cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $4.37
Unit price: $4.37

Quantity Price
100+$3.80
200+$3.47
300+$3.36
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Remote + installation remote bus cable. PUR outer sheath, halogen free, flame retardant, core identification code DIN 47100. Temp. range from -30°C bis +80°C

Benefits

  • Applications:fixed Installation, high flexible use, outdoor use/direct burial

Application range

  • Remote bus/ installation remote bus cable

Product features

  • UNITRONIC®
    BUS IBS
    fixed installation
    UNITRONIC®
    BUS IBS Combi
    with power supply
    UNITRONIC®
    BUS IBS A
    UL-verified
  • UNITRONIC®
    BUS Yv
    outdoor use/ direct burial
    UNITRONIC®
    BUS Yv Combi
    with power supply
  • UNITRONIC®
    BUS IBS FD P
    fixed installation
    UNITRONIC®
    BUS IBS FD P Combi
    with power supply
    UNITRONIC® BUS IBS FD P Combi A
    UL-verified

Norm references / Approvals

  • Refer to data sheet for more details
  • According to DIN EN 61158

Product Make-up

  • See data sheet

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

Peak operating voltage

  • (not for power applications) 250 V

Conductor resistance

  • see data sheet

Minimum bending radius

  • Fixed installation: 8 x outer diameter
  • Flexing: 15 x outer diameter

Test voltage

  • Core/core: 1500 V rms

Characteristic impedance

  • 100 Ohm

Temperature range

  • UNITRONIC®
    BUS IBS
    fixed installation: -30°C to +80°C
    flexing: -5°C to +70°C
    UNITRONIC®
    BUS IBS FD P
    fixed installation: -40°C to +80°C
    flexing: -5°C to +70°C
  • UNITRONIC®
    BUS IBS Yv
    Fest verlegt: -40°C bis +70°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
2170216 UNITRONIC BUS IBS FD P 3X2X0,25 2170216 EN_2170207.pdf 283 Kbytes 2170216 UNITRONIC BUS IBS FD P 3X2X0,25 2170216 EN_2170207.pdf
