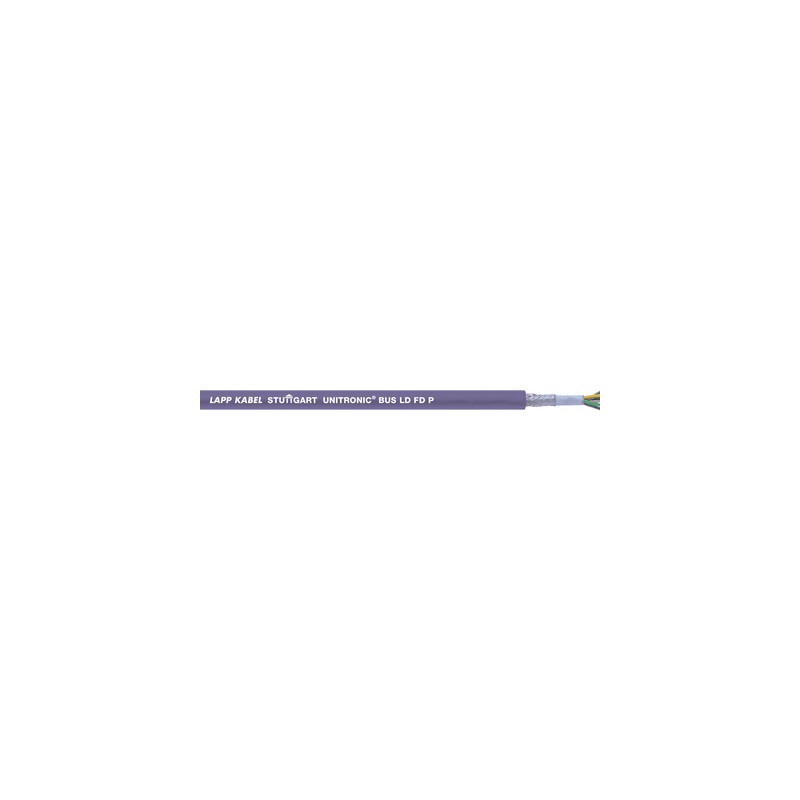

2170215 UNITRONIC BUS LD FD P 3X2X0,25 LAPP UNITRONIC BUS LD FD P 3X2X0,25

Benefits

• Suitable for multiple Bus systems based on RS485 / RS422
• PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
• Under consideration of the temperature range also suitable for outdoor use

Application range

• For highly flexible applications (power chains, moving machine parts)
• Bus cables for bus systems such as e.g. Modbus, SUCOnet P, Modulink P, VariNet-P)

Product features

• The stated bit rates result in the following cable lengths (maximum) of one bus segment:
• 9.6-93.75 kbit/s = 1200m
• 187.5 kbit/s = max. 1,000 m
• 500 kbit/s = max. 400 m
• UV-resistant (but colour may change after some time)

Norm references / Approvals

• UNITRONIC® BUS LD FD P A:
  UL versions with certification:
  UL/CSA type CMX acc. to UL 444
  and CSA C22.2 no. 214-02
• Flame-retardant according IEC 60332-1-2

Product Make-up

• Extra-fine wire strand made of bare copper
• Colour code DIN 47100
• Core insulation: PE
• Overall screening of braided tinned-copper strands
• Outer sheath: PUR, violet (RAL 4001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Mutual capacitance

• (800 Hz) max. 60 nF/km

Peak operating voltage

• (not for power applications) 250 V

Conductor resistance

• (loop): max. 159.8 ohm/km

Minimum bending radius

• Fixed installation: 6 x core diameter
  One bend at end of core:
  3 x cable diameter
• Flexing: 15 x outer diameter

Test voltage

• Core/core: 1500 V rms

Characteristic impedance

• 100 - 120 Ohm

Temperature range

• Fixed installation: -40°C to +80°C
• Flexing: -30°C to +70°C
