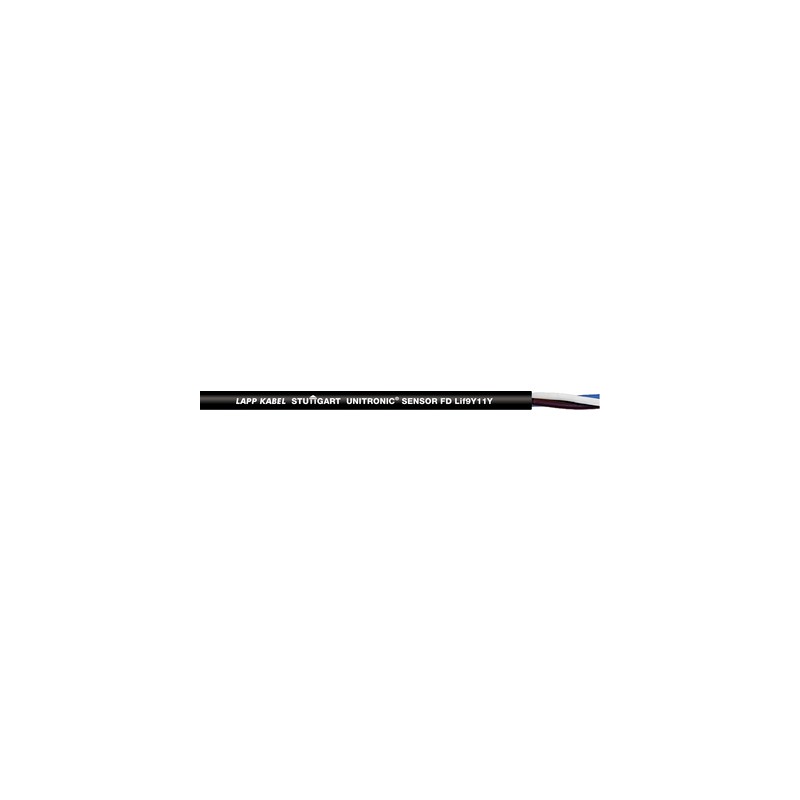

7038885 UNITRONIC SENSOR FD Lif9YC11Y 3x0,34 LAPP UNITRONIC SENSOR FD Lif9YC11Y 3x0,34
7038885
UNITRONIC SENSOR FD Lif9YC11Y 3x0,34
LAPP
UNITRONIC SENSOR FD Lif9YC11Y 3x0,34
UNITRONIC® SENSOR FD
UNITRONIC BUS cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Cables for sensor/actuator cabling in rough environments. For use in drah chains, halogenfree, to connect to M8, M12 connectors.
For increased mechanical stress and harsh operating conditions
Benefits
- Designs for highly flexible use
- Abrasion-resistant
- Wear-resistant
- Space-saving due to compact dimensions
Application range
- Automation technology
- Sensor/ actuator cabling
- Mechanical and plant engineering
- Assembly and production lines
Product features
- UV-resistant
- Halogen-free according to VDE 0472-815
- flame-retardant according to IEC 60332-2-2, UL 1581 FT-2
- Suitable for drag chains
- Designed for 4 million alternating bending cycles and travel distances up to 10 m
Norm references / Approvals
- UL AWM Style 20549
Product Make-up
- Extra-fine wire strand made of bare copper wires
- Core insulation: PP
- Colour-code:
3-pin: bn, bu, bk
4-pin: bn, wh, bu, bk
5-pin: bn, wh, bu, bk, gy
8-pin: bn, wh, gn, ye, gy, pk, bu, rd - Outer sheath: PUR, black
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001578
- ETIM 6.0 Class-Description: Flexible cable
Peak operating voltage
- 300 V (not for power applications)
Conductor stranding
- Extra-fine wire acc. to VDE 0295, class 6/ IEC 60228 class 6
Minimum bending radius
- Fixed installation: 5 x outer diameter
- Flexing: 10 x outer diameter
Temperature range
- Occasional flexing: -25°C to +80°C
- Fixed installation: -40°C to +80°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 7038885 UNITRONIC SENSOR FD Lif9YC11Y 3x0,34 7038885 EN_7038867.pdf | 348 Kbytes |
|
