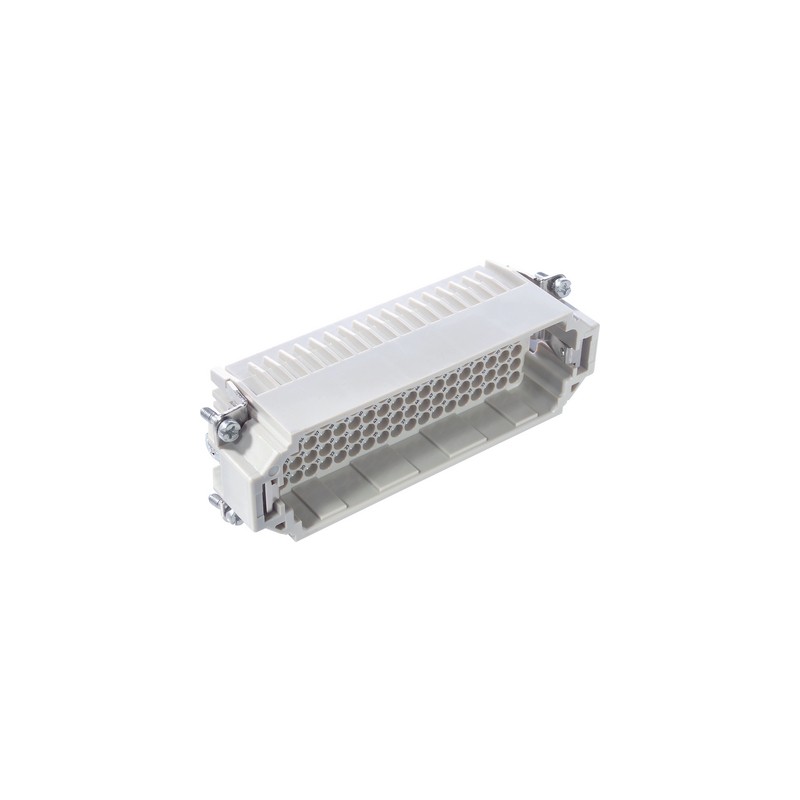

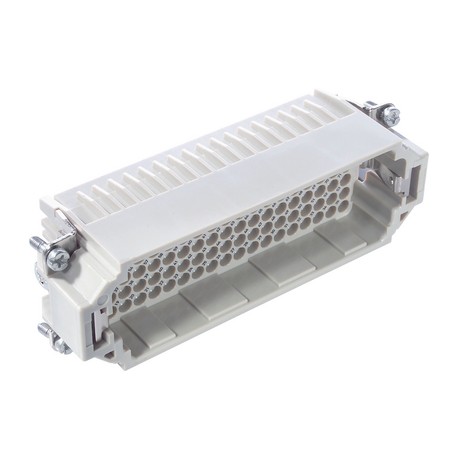

11286300 EPIC H-DD 108 BCM 1-108 FEMALE INSERT LAPP EPIC H-DD 108 BCM 1-108 FEMALE INSERT
11286300
EPIC H-DD 108 BCM 1-108 FEMALE INSERT
LAPP
5
EPIC H-DD 108 BCM 1-108 FEMALE INSERT
EPIC® H-DD 108
Connectors > Contact insert for rectangular connectors
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The insert for rectangular connectors offers a high number of contacts and it is ideal for use in the plastics industry.
- Highest packing density for compact connectors
- Also as EPIC® H-DD 216 available
Benefits
- The H-DD series with machined contacts is designed for a high number of pins in very tight spaces. This allows for smaller housing types to be chosen.
Application range
- Mechanical engineering
- Light & sound technology
- Plastics industry
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 250 V
UL: 600 V
CSA: 600 V
Rated impulse voltage
- 2.5 kV
Rated current (A)
- IEC: 10 A
UL: 8.5 A
CSA: 10 A
Pollution degree
- 2
Contact resistance
- < 3 mOhm
Contacts
- Copper alloy, hard silver/gold-plated
Number of contacts
- 108 + PE
Termination methods
- Crimp termination: 0.14 - 2.5 mm²
Cycle of mechanical operation
- 100
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 11286300 EPIC H-DD 108 BCM 1-108 FEMALE INSERT 11286300 EN_11285300.pdf | 536 Kbytes |
|
