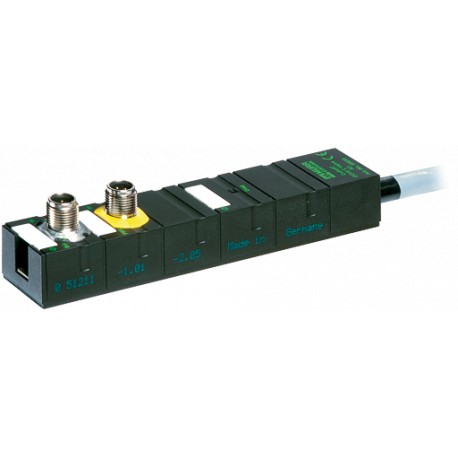

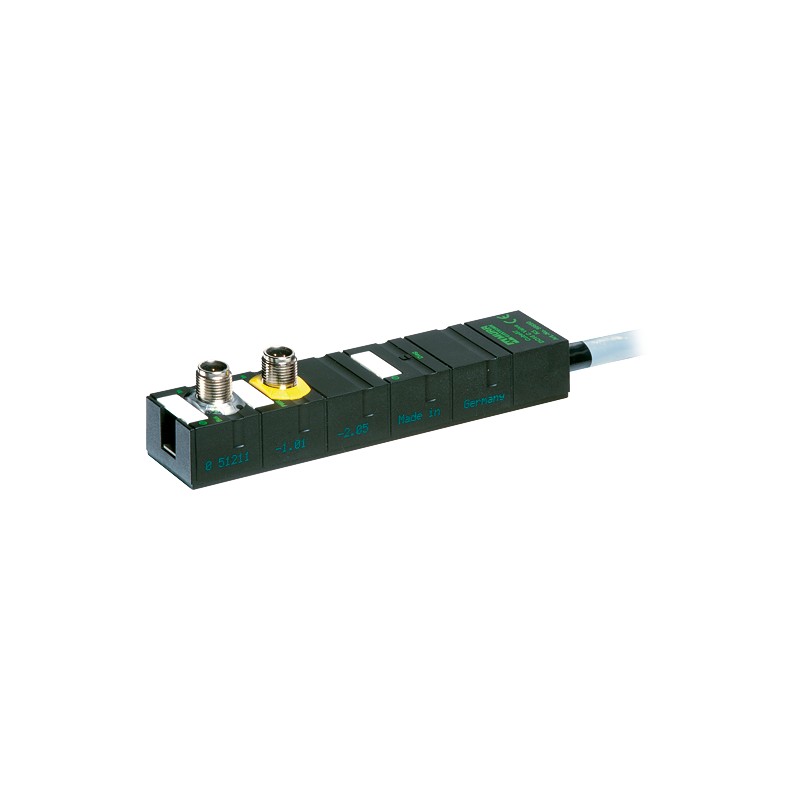

56650 MURRELEKTRONIK Cube67 Valve Interface, I/O Compact Module DO16, Festo CPV (Sub-D 25 pol., 0.5 m, safet..
56650
MURRELEKTRONIK
Cube67 Valve Interface, I/O Compact Module DO16, Festo CPV (Sub-D 25 pol., 0.5 m, safety outputs (K3)
Cube67 Valve-Interface, I/O Compact Module
BUS systems
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲DO16 - 0.5 A Valve (C) 0.5 m (K3)
Multipole plug (0.5 A)
FESTO - CPV (SUB-D25)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
| Protection | IP67 |
|---|---|
| Mounting method | 2-hole screw mounting |
| Temperature range | 0...+55 °C (storage temperature -20...+70 °C) |
| Dimensions H×W×D | 150×30×34.5 mm |
| Actuator supply UA | 24 V DC (EN 61131-2), max. 4× 2 A |
|---|---|
| Switching current per output | max. 0.5 A (short-circuit and overload protected) |
| No./diameter of wires | 4× 4× 0.14 mm² |
|---|---|
| Material (jacket) | PVC, cross-link safe |
| Cable Length | 0.5 m |
| Current consumption | max. 50 mA |
|---|---|
| LED display | US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK) |
| Fieldbus | via internal system connection |
|---|---|
| Sensor-system/actuator supply | via internal system connection (max. 1× 4 A) / actuators via external cable (max. 4× 2 A) |
| I/O ports | FESTO - CPV (SUB-D25) |
| Communication status | via LED |
|---|---|
| Diagnostic via LED | per module |
| Diagnostic via BUS | per module and channel |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
| Actuator warning | per channel via BUS |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879048415 |
| eClass | 27371604 |
| Packaging unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 36 Mbytes |
|
| 56650 56650 EN_56650.pdf | 146 Kbytes |
|
