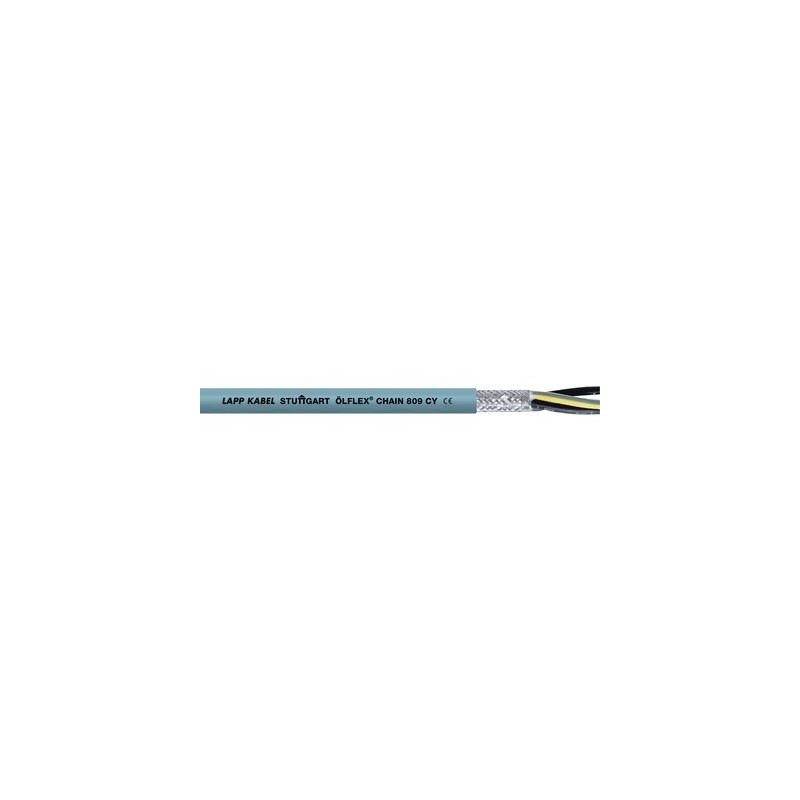

1026780 ÖLFLEX CHAIN 809 CY 12G1,5 LAPP Highly flexible, screened control cable with PVC core insulation and..

Benefits

• Good combination of quality and price
• Thin and light, without inner sheath
• Multi-standard certification reduces part varieties and saves costs
• Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers
• Copper screening complies with EMC requirements and protects against electromagnetic interference

Application range

• In power chains or moving machine parts
• In EMC-sensitive environments
• Suitable for use in measuring, control and regulating circuits
• Wiring of machines, tools, devices, appliances and control cabinets
• Assembly and production lines

Product features

• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
• Flammability:
  UL/CSA: VW-1, FT1
  IEC/EN: 60332-1-2
• EMC-compliant
• Low-adhesive surface

Norm references / Approvals

• UL AWM Style 20886
• cUL AWM II A/B FT1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Fine-wire, bare copper strand
• Core insulation: PVC
• Cores twisted in layers
• Non-woven wrapping
• Tinned-copper braiding
• PVC outer sheath, grey (similar RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-334

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Torsion movement in WTG

• TW-0 & TW-1, refer to Appendix T0

Minimum bending radius

• Flexing: up from 10 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• VDE: U0/U: 300/500 V
• UL & CSA: 1000 V

Test voltage

• Core/core: 4000 V
• Core/screen: 2000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexing: 0°C to +70°C
  (UL/CSA: +80°C)
• Fixed installation: -40°C to +70°C
  (UL/CSA +80°C)

Bending cycles & operation parameters

• See Selection Table A2-1 in the appendix of our online catalogue
