10075000 H-B 16 SGRL 21 ZW. BOX MOUNT BASE LAPP H-B 16 SGRL 21 ZW. BOX MOUNT BASE
10075000
H-B 16 SGRL 21 ZW. BOX MOUNT BASE
LAPP
5
H-B 16 SGRL 21 ZW. BOX MOUNT BASE
EPIC® H-B 16 SGRL
Connectors > Housing for rectangular connectors
EPIC rectangular
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info

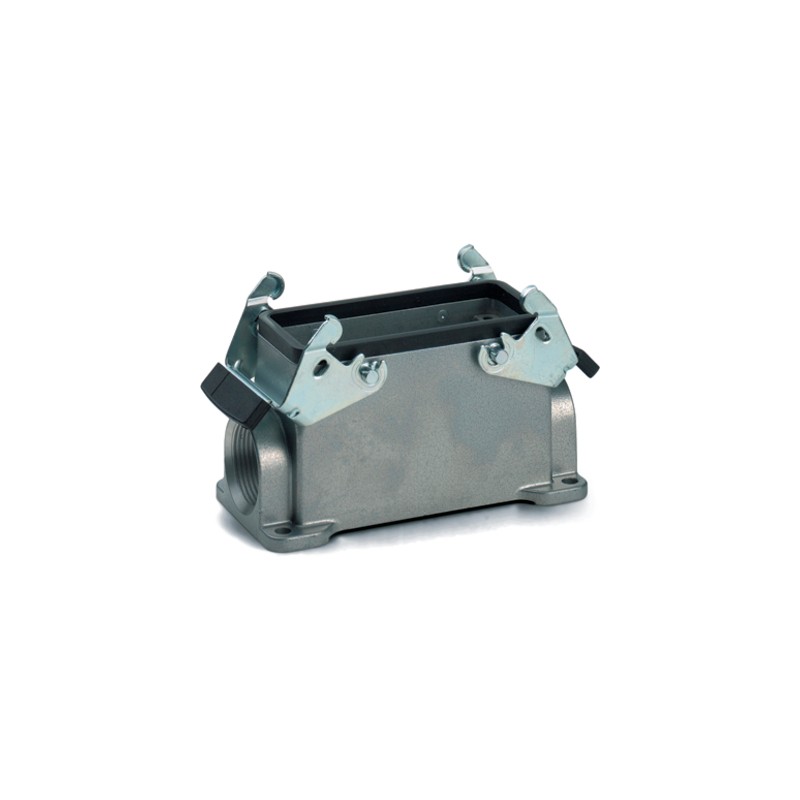

▲The metal housing for rectangular connectors can be used, for example, in investment construction. The housing has 2 double levers and 2 cable entries.
- Double lever version with 2 levers for increased safety
- For easy introduction of two cables
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Surface-mount base, low version
- Dual levers
- 2 cable entries
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 10075000 H-B 16 SGRL 21 ZW. BOX MOUNT BASE 10075000 EN_10075000.pdf | 343 Kbytes |
 |
