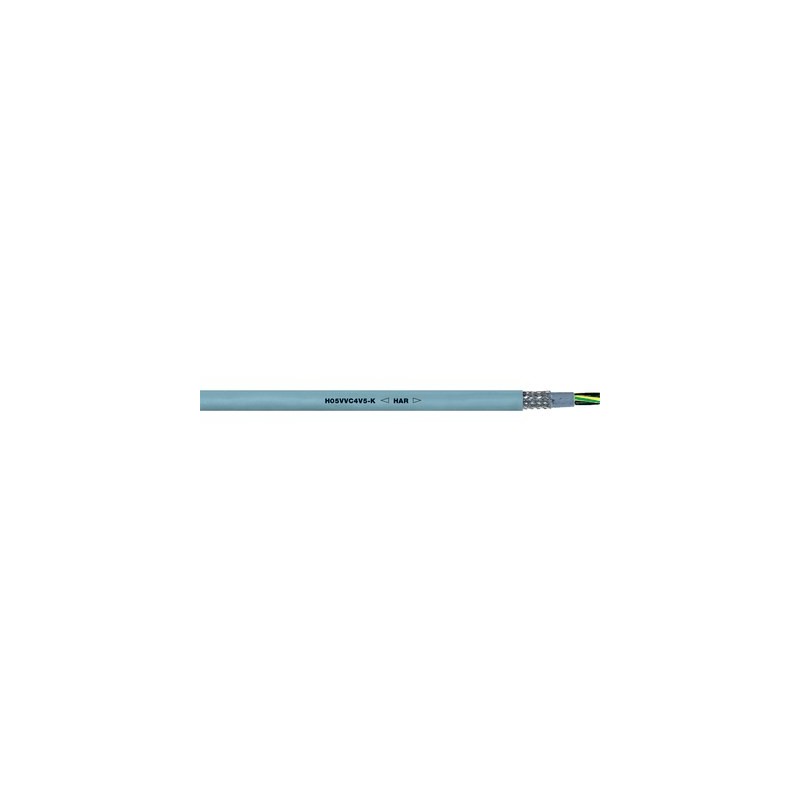

0035722 ÖLFLEX 140 CY H05VVC4V5-K 5G1 LAPP Harmonised PVC control cable (EN 50525-2-51)

Benefits

• High acceptance in Europe due to Harmonisation

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
• Machine tools
• Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
• For fixed installation under medium mechanical load conditions, and applications with occasional flexing at free, non-continuously recurring movement without tensile load or compulsory guidance
• In EMC-sensitive environments
  (electromagnetic compatibility)

Product features

• Flame-retardant according IEC 60332-1-2
• Oil-resistant according to EN 50363-4-1: TM5
• High degree of screening
  low transfer impedance
  (max. 250 Ω/km at 30 MHz)

Norm references / Approvals

• EN 50525-2-51

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC core insulation
• Cores twisted in layers
• PVC inner sheath, grey
• Tinned-copper braiding
• PVC outer sheath, high oil-resistance, grey (similar to RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-334

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Minimum bending radius

• Occasional flexing: 20 x outer diameter
• Fixed installation: 6 x outer diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 2000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +70°C
