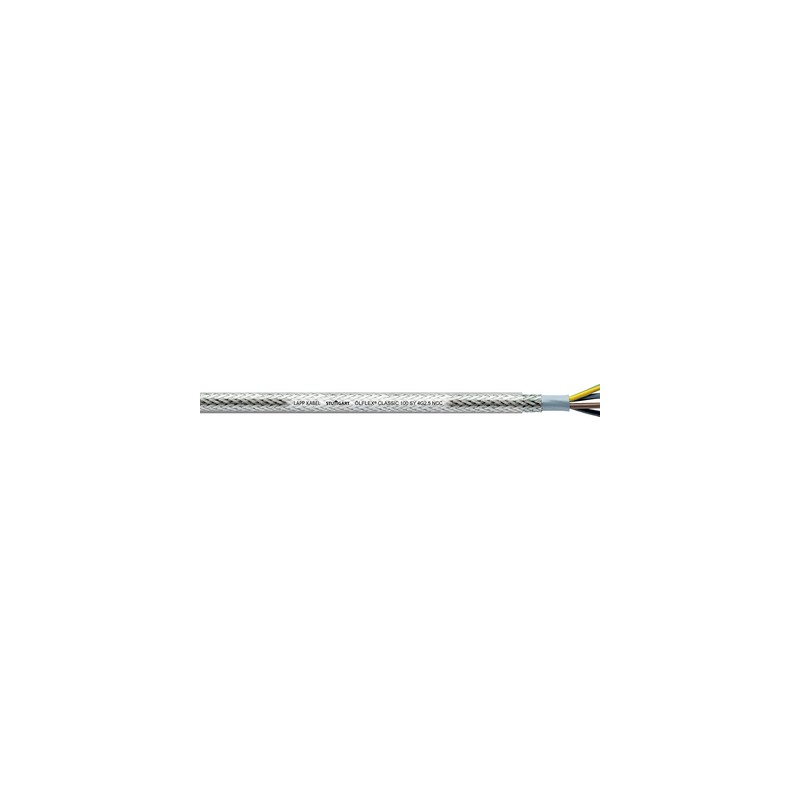

00161103 ÖLFLEX CLASSIC 100 SY 4G10 LAPP Colour-coded PVC control cable with steel wire braiding

Benefits

• Extra mechanical protection due to braided steel wire

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
• Areas with high mechanical stress

Product features

• Flame-retardant according IEC 60332-1-2
• Good chemical resistance, see catalogue appendix T1

Norm references / Approvals

• Based on IEC 60227-5 and EN 50525-2-51

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Cores twisted in layers
• PVC inner sheath, grey
• Braid of galvanized steel wires
• PVC outer sheath, transparent

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: ÖLFLEX® colour code, refer to Appendix T7

Conductor stranding

• Fine wire according to VDE 0295,
  class 5/IEC 60228 class 5

Minimum bending radius

• Occasional flexing: 20 x outer diameter
• Fixed installation: 6 x outer diameter

Nominal voltage

• Up to 1.5 mm²: U0/U: 300/500 V
• From 2.5 mm²: U0/U: 450/750 V
  From 2.5 mm², in the case of fixed and protected installations: U0/U: 600/1000 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
