> LAPP>flexible data cable transfer from special cable>0012622 UNITRONIC EB CY (TP) 4x2x0,75 LAPP UNITRONIC EB CY (TP) 4x2x0,75
Previous Product Next Product

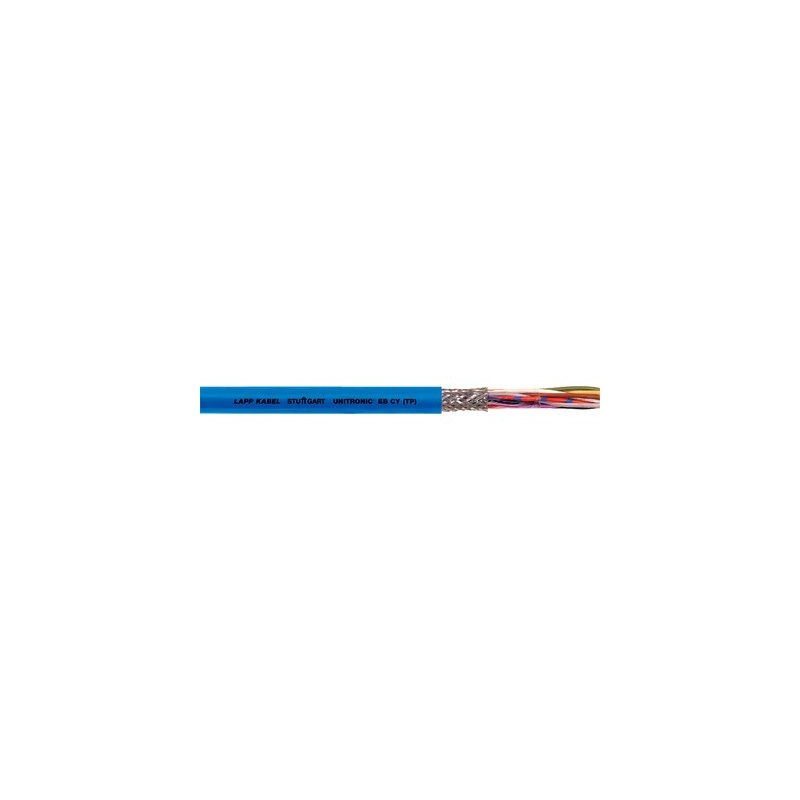

0012622 UNITRONIC EB CY (TP) 4x2x0,75 LAPP UNITRONIC EB CY (TP) 4x2x0,75 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

0012622 UNITRONIC EB CY (TP) 4x2x0,75 LAPP UNITRONIC EB CY (TP) 4x2x0,75

0012622

UNITRONIC EB CY (TP) 4x2x0,75

LAPP

UNITRONIC EB CY (TP) 4x2x0,75

UNITRONIC® EB CY (TP)

More details


Cables > Data and communication cable

flexible data cable transfer from special cable

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $5.38
Unit price: $5.38

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


UNITRONIC® EB CY (TP): Low-frequency PVC data cable, DIN 47100 coded, Twisted Pair, Screened, Blue jacket, Intrinsically safe circuits, EN 60079-14/ VDE 0165-1

  • Hazard protection type -i- is required where there is a risk of explosion
  • CPR: Article number choice under www.lappkabel.com/cpr

Benefits

  • Overall braid minimises electrical
    interference
  • Decoupling of circuits by means of
    twisted-pair (TP) design (crosstalk effects)

Application range

  • Reliable data transmission in intrinsically safe circuits
  • In EMC-sensitive environments
    (electromagnetic compatibility)

Product features

  • For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on VDE 0812

Product Make-up

  • Fine-wire strand made of bare copper wires
  • Core insulation made of PVC
  • TP structure
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: sky blue (RAL 5015)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • DIN 47100, refer to Appendix T9

Mutual capacitance

  • C/C approx. 100 nF/km
  • C/S approx. 140 nF/km

Inductivity

  • approx. 0.65 mH/km

Conductor stranding

  • Strand, fine-wire in accordance with IEC 60228 Cl. 5

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Test voltage

  • 2500 V

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

Datasheet - PDF

▲
Title: Size: Type:
0012622 UNITRONIC EB CY (TP) 4x2x0,75 0012622 EN_0012622.pdf 189 Kbytes 0012622 UNITRONIC EB CY (TP) 4x2x0,75 0012622 EN_0012622.pdf
