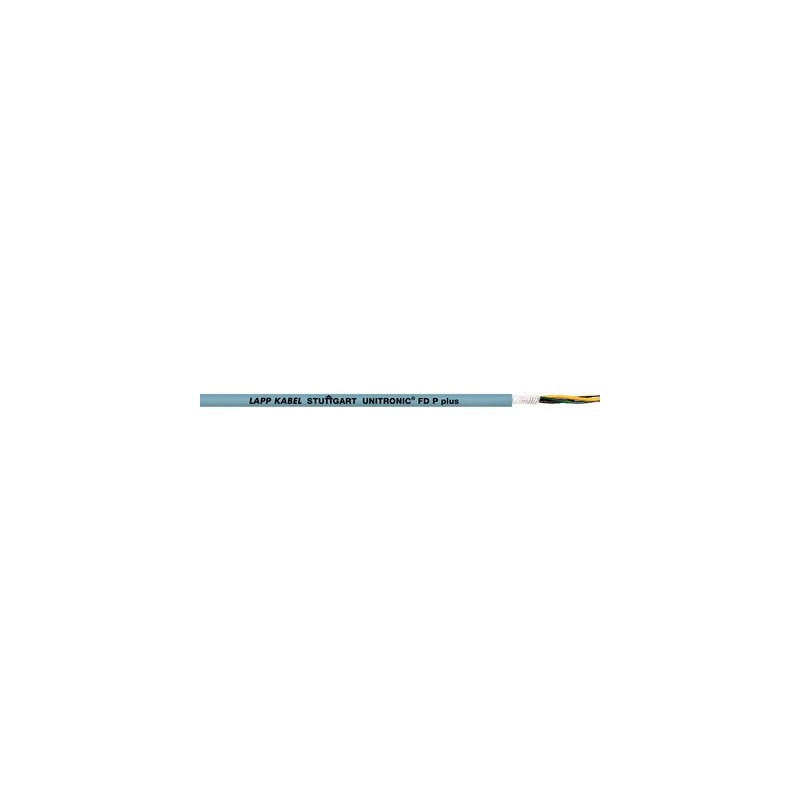

0028667 UNITRONIC FD P plus 2X0,34 LAPP UNITRONIC FD P PLUS A 2X0,34

Benefits

• Well-proven and reliable
• Wide temperature range for applications in harsh climatic environments
• UL AWM voltage rating 1000V in case of internal wiring (for instance, inside Industrial Platform under Field Labeling) allows for internal laying next to power cables with applied UL rating of 1kV
• In the USA inside of industrial machines and in chain track inside Industrial Platform under Field Labeling (subject to AHJ approval), per NFPA 79, Section 12.9.2 (condition 3 under 12.9.2: Thru 1 mm² and <16 AWG)

Application range

• Highly flexible data cable with PUR outer sheath, meets the highest service life requirements, even under harsh climatic conditions
• Suitable for use in measuring, control and regulating circuits
• Sophisticated design for high-performance chain/ track use
• For use in chain/carrier: Please respect the assembly guidelines listed in Appendix T3

Product features

• PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
• Commonly for outdoor use (not in North America), thanks to UV and ozone resistance
• Flame retardance ratings: IEC 60332-1-2, FT2 (Horizontal flame test)
• Halogen-free, has low capacitance and is flexible down to -40°C
• Low-adhesive surface, resistant to hydrolysis and microbes, oil resistant

Norm references / Approvals

• Based on VDE 0812
• cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II

Product Make-up

• Extra-fine wire strand made of bare copper wires
• Core insulation: Based on Polyolefin
• Non-woven wrapping
• Outer sheath made of special PUR compound
  Outer sheath colour: grey (RAL 7001)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Core identification code

• DIN 47100, refer to Appendix T9

Mutual capacitance

• C/C approx. 60 nF/km

Inductivity

• approx. 0.65 mH/km

Conductor stranding

• Stranded, extra-fine wire

Minimum bending radius

• Flexing: 5 x outer diameter
• Fixed installation: 3 x outer diameter

Test voltage

• 1500 V

Temperature range

• Flexing: -40°C to +80°C
• Fixed installation: -40°C to +80°C
  cRUus AWM: max. +80°C
