Z-SS-60-ADD/6-45 288790 EATON ELECTRIC 288790 Z-SS-60-ADD/6-45
Z-SS-60-ADD/6-45
288790
EATON-MOELLER
288790 Z-SS-60-ADD/6-45
Z-SS-60-ADD/6-45
Dual adapter
Low-voltage industrial components > Busbar adapter
Circuit Breakers PKZ
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info

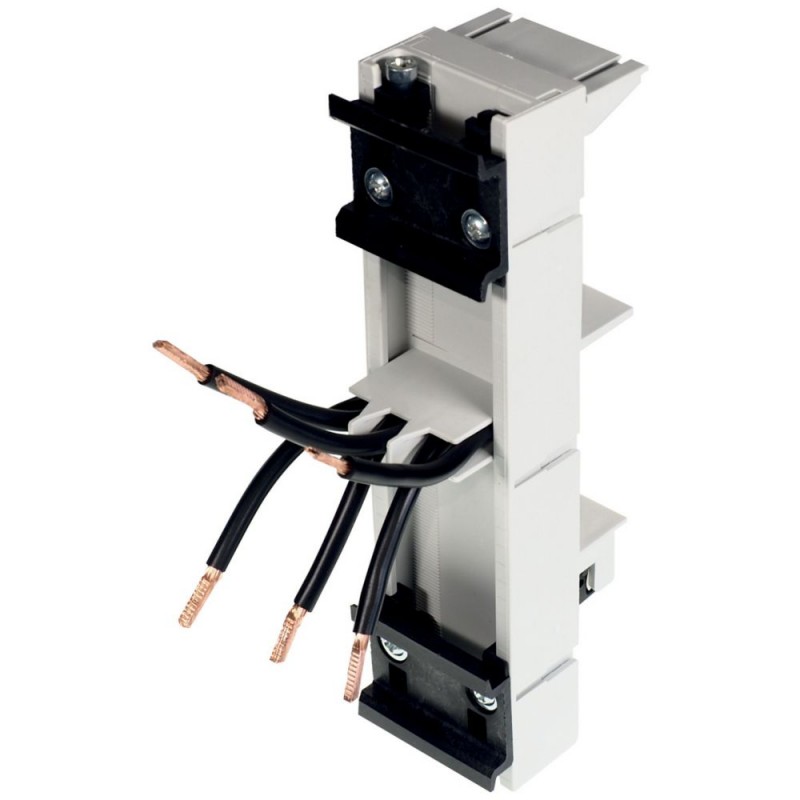

▲Dual adapter
Busbar dual adapter, for 60-mm system, with 2x mounting rail, adjustable, center feeder unit per phase 6mm² cable, Ie=32A, width=45mm, for busbars 12x5/10 to 30x5/10, can be used e.g. for DIN fuse devices
General specifications
Product name
Eaton xEffect SASY 60i MCB adapter
Part no.
Z-SS-60-ADD/6-45
EAN
4015082887902
Product Length/Depth
182 millimetre
Product height
80 millimetre
Product width
47 millimetre
Product weight
0.34 kilogram
Compliances
RoHS conform
Product Tradename
xEffect SASY 60i
Product Type
Busbar system component
Product Sub Type
MCB adapter
Delivery program
Type
60 mm system
Busbar dual adapters for modular installation devices
Busbar dual adapters for modular installation devices
Nominal current
35 A
Technical Data - Electrical
Voltage rating at AC
690 V AC
Rated operation current (Ie)
35 A
Electric connection type
3 conductors AWG 10
Technical Data - Mechanical
Rail width
30 mm
Number of DIN rails
2
Busbar distance
60 mm
Busbar thickness - min
5 mm
Busbar thickness - max
10 mm
Busbar adapter width
45 mm
Adapter width
45 mm
Terminal capacity
6 mm²
Additional information
Functions
Busbar dual adapters for modular installation devices
Dual adapter
Dual adapter
Special features
Dual adapter (six 6 mm² connection cables), 2 mounting rails
Mounted by latching onto de-energized busbar
Mounted by latching onto de-energized busbar
Suitable for
Mounting on flat copper busbars with 60 mm interval between busbar centres
Used with
12 x 5/10 mm
25 x 5/10 mm
Double T profile
30 x 5/10 mm
15 x 5/10 mm
Suitable for 5 and 10 mm busbar and double T thickness.
20 x 5/10 mm
Busbar dual adapters for modular installation devices
60 mm system
25 x 5/10 mm
Double T profile
30 x 5/10 mm
15 x 5/10 mm
Suitable for 5 and 10 mm busbar and double T thickness.
20 x 5/10 mm
Busbar dual adapters for modular installation devices
60 mm system
Technical data ETIM 8.0
Low-voltage industrial components (EG000017) / Busbar adapter (EC001531)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Busbar trunking system (LV circuitry) / Busbar adapter (low-voltage switching technology) ([email protected] [ACN951011])
Mounting rail armament
2 mounting rails
Type of electric connection
3 conductors AWG 10
Rated current In
35 A
Min. busbar thickness
5 mm
Max. busbar thickness
10 mm
Width of the adapter
45 mm
Rail width
30 mm
Busbar distance
60 mm
