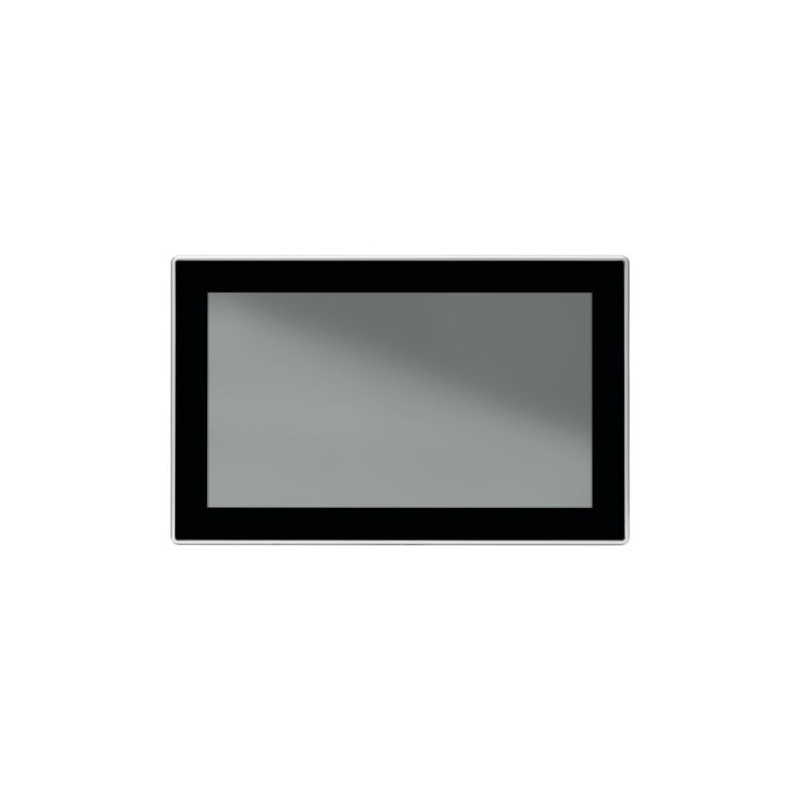

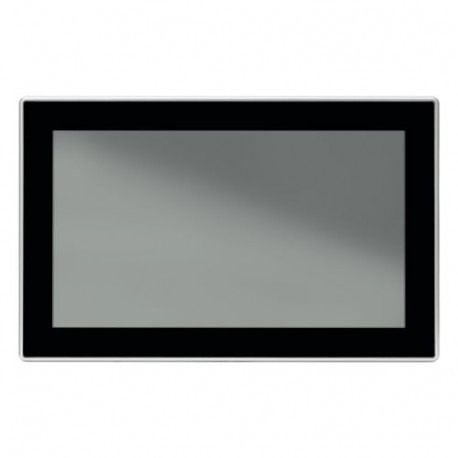

XP-504-15-A10-A01-2B 199998 Y7-199998 EATON ELECTRIC XP-504-15-A10-A01-2B
XP-504-15-A10-A01-2B
199998
Y7-199998
EATON-MOELLER
XP-504-15-A10-A01-2B
Panel-PC, capacitive multi-touch (PCT), 15.6", 2xEthernet, 4xUSB3.0, 1xRS232/RS422/485, 1x HDMI, 1 xDP, Slot for SD card, Galileo Runtime License, Windows 10 Enterprise LTSC, ATEX certification
Panel-PC, Capacitive multitouch (PCT), 15.6z, 2 x Ethernet, 4 x USB3.0, 1 x RS-232, Windows 10, Galileo or 3rd party
PLC's > Industrial PC
HMI Touch Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Panel-PC, capacitive multi-touch (PCT), 15.6", 2xEthernet, 4xUSB3.0, 1xRS232/RS422/485, 1x HDMI, 1 xDP, Slot for SD card, Galileo Runtime License, Windows 10 Enterprise LTSC, ATEX certification
PC with integrated terminal, up to two XP-504 series terminals can be connected.
Delivery program
Product range
Visualisation solutions XP
Product range
IPC XP-504
Subrange
Panel-PC
Function
Industrial PC
Description
Panel PC, industrial PC for flush mounting with
Capacitive multi-touch screen (PCT)
up to two XP-504 series terminals can be connected
Capacitive multi-touch screen (PCT)
up to two XP-504 series terminals can be connected
Common features of the model series
DualCore CPU 1,60 GHz
Powerful graphic processor
8 GB RAM
64 GB mSATA
8-GB SD card
Powerful graphic processor
8 GB RAM
64 GB mSATA
8-GB SD card
Display - Type
Color display, TFT
Touch-technology
Capacitive multi-touch technology (PCT)
Number of colours
16.7 mil.
Resolution
1366 x 768
WXGA Pixel
WXGA Pixel
Portrait format
yes (at max.T + 45°C)
Screen diagonal
15.6
widescreen Inch
widescreen Inch
Model
Glass front in aluminum frame, housing made from galvanized sheet steel, aluminum heat sink
Operating system
Windows 10 Enterprise LTSC
PLC-licence
Not offered by Eaton
License certificates for onboard interfaces
Not required
built-in interfaces
2 x Ethernet 1000/100/10 Mbps
4 x USB 3.0
1 x RS232/RS422/485
1 x DP
1 x HDMI
4 x USB 3.0
1 x RS232/RS422/485
1 x DP
1 x HDMI
Front type
Tempered glass with anti-reflective coating
Utilization
Flush mounting
Slots
for SD card: 1
Memory card automation
Optionally with SD card -> article no. 181638
Pluggable communication cards (optional)
no
Touch sensor
Multi-touch touch panel
Heat dissipation
43.2 W
Technical data
Display
Display - Type
Color display, TFT
Screen diagonal
15.6
widescreen Inch
widescreen Inch
Resolution
1366 x 768
WXGA Pixel
WXGA Pixel
Visible screen area
344.23 x 193.54 mm
Format
16:9
Viewing range [[left/right/up/down]]
85°/85°/80°/80° ° (Degrees)
Number of colours
16.7 mil.
Contrast ratio (Normally)
Normally 500:1
Brightness
Normally 400 cd/m2
Back-lighting
LED
dimmable via software
dimmable via software
Service life of back-lighting
Normally 50000 h
Operation
Technology
Projected Capacitive Touch (PCT)
Touch sensor
Multi-touch touch panel
System
Processor
Intel Atom E3950 QuadCore 2 GHz
Internal memory
64 GB mSATA
External memory
SD card type: SD or SDHC in accordance with the SDA 2.0 specification, min. 8 GB
Cooling
Fanless CPU and system cooling, natural convection-based passive cooling
Back-up of real-time clockBattery (service life)
austauschbar, Lithium Panasonic BR2032 (3V, 190mAh) für BIOS, typisch 5 Jahre
Back-up of real-time clockBackup (time at zero voltage)
Normally 5 years
Engineering
Visualisation software
Galileo or 3rd party
PLC-licence
Not offered by Eaton
Operating system
Windows 10 Enterprise LTSC
Interfaces, communication
built-in interfaces
2 x Ethernet 1000/100/10 Mbps
4 x USB 3.0
1 x RS232/RS422/485
1 x DP
1 x HDMI
4 x USB 3.0
1 x RS232/RS422/485
1 x DP
1 x HDMI
USB Host
4 x USB 3.0
RS-232
Not galvanically isolated, 9-pin D-sub plug, UNC
RS-485
Not galvanically isolated, 9-pin D-sub plug, UNC
Slots
for SD card: 1
Ethernet
1000/100/10 Mbps
Power supply
Nominal voltage
24 V DC SELV (safety extra low voltage)
permissible voltage
18-36 V DC
Power consumption [Pmax.]
43.2 W
Heat dissipation
43.2 W
Current consumption [I]
max. 1.8 A A
General
Housing material
Frame made of milled aluminum
Front type
Tempered glass with anti-reflective coating
Dimensions (W x H x D)
412.1 x 261.6 x 89 mm
flush mounted
Clearance: W x H ≥ 50 mm (1.97"), T ≥ 20 mm (0.79")
Inclination from vertical: +45° ≦ α ≦ -10° at operating temperatures ≦ 45°C (113°F) (if using natural convection)
Mounting plate: min. 1.5 mm (0.06"), max. 4 mm (0.16")
Inclination from vertical: +45° ≦ α ≦ -10° at operating temperatures ≦ 45°C (113°F) (if using natural convection)
Mounting plate: min. 1.5 mm (0.06"), max. 4 mm (0.16")
Weight
4.9 kg
Degree of protection (IEC/EN 60529, EN50178, VBG 4)
IP65 (in the front as per EN 60529-1), IP20 (on rear as per EN 60529-1), NEMA12 (as per NEMA 250-2003)
ApprovalsApprovals
UL
Approvalscertificate
CE, UKCA
ApprovalsExplosion protection (according to ATEX 94/9/EC)
II 3D Ex tc IIIC T70°C U
Applied standards and directivesEMC
according to 2004/108/EC
Applied standards and directivesEmitted interference
As per EN 55022:2010 Class A and EN 61000-6-4:2007
Applied standards and directivesInterference immunity
As per EN 55024:2010 and EN 61000-6-2:2005
EN 61131-2:2007
EN 61131-2:2007
Free fall, packaged
gemäß ICE/EN 60068-2-32 m
RoHS
conform
Environmental conditions
Climatic environmental conditionsAir pressure (operation)
795 - 1080 hPa
TemperatureStorage / Transport [ϑ]
-20 - +60 °C
TemperatureOperating ambient temperature min.
0 °C
TemperatureOperating ambient temperature max.
+45 °C
Relative humidityCondensation
Non-condensing
Relative humidityRelative humidity
20–85%, non-condensing
Design verification as per IEC/EN 61439
Technical data for design verification
Static heat dissipation, non-current-dependent [Pvs]
36 W
Operating ambient temperature min.
0 °C
Operating ambient temperature max.
+45 °C
Degree of Protection
IP65 (in the front as per EN 60529-1), IP20 (on rear as per EN 60529-1)
NEMA12 (as per NEMA 250-2003)
UL: 50E, Type 4X (indoor use), Type 12 (at the front)
NEMA12 (as per NEMA 250-2003)
UL: 50E, Type 4X (indoor use), Type 12 (at the front)
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Is the panel builder's responsibility.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Approvals
Product Standards
UL61010-1
UL File No.
E205091
CSA File No.
UL report applies to both US and Canada
North America Certification
UL recognized, certified by UL for use in Canada
Specially designed for North America
No
Degree of Protection
IEC: IP65
Dimensions
XP-504 industrial PC with 15.6" screen diagonal
a, b ≧ 50 mm, c ≧ 20 mm, ϑ 0 ≦ T ≦ 45 °C
1,5 mm ≦ d ≦ 4 mm, e = 388 mm , f = 239 mm, ⍺ = 10°
| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 18 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 4 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Suitable for operating system Windows 9x (EF003041) | No |
| Suitable for operating system Windows 2000 (EF003043) | No |
| Suitable for operating system Windows XP (EF003044) | No |
| Suitable for operating system Windows ME (EF003045) | No |
| Suitable for operating system Windows CE (EF003046) | No |
| Suitable for operating system Linux (EF003047) | No |
| Suitable for operating system Windows Vista (EF007091) | No |
| Suitable for operating system Windows 2003 Server (EF007090) | No |
| Suitable for operating system Windows 7 (EF008526) | No |
| Suitable for operating system Windows 8 (EF009923) | No |
| Suitable for other operating system (EF003048) | No |
| Preinstalled operating system (EF007535) | Windows 10 |
| Max. main memory (EF003123) | 8 MB |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Operating temperature (EF002393) | 0 °C |
| Construction type housing (EF004008) | Other |
| With hard disc (EF002000) | No |
| Processor type (EF003122) | Intel Atom |
| Processor clock rate (EF011957) | 2 GHz |
| With graphic card (EF003130) | No |
| With sound card (EF003131) | No |
| With optical drive (EF012515) | No |
| With floppy disc drive (EF003128) | No |
| Number of free AGP-slots (EF003133) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| With other storage media (EF003129) | Yes |
| Number of free ISA-slots (EF003135) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Number of other free slots (EF003137) | 0 |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | Yes |
| Rack-assembly possible (EF007018) | No |
| Number of storage media bays (EF011958) | 1 |
| Suitable for safety functions (EF001597) | No |
| Width (EF000008) | 261.6 mm |
| Height (EF000040) | 89 mm |
| Depth (EF000049) | 412.1 mm |
| Memory capacity hard disc (EF004682) | 0.064 TB |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XP-504-15-A10-A01-2B Y7-199998 199998 EN_199998.pdf | 267 Kbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
