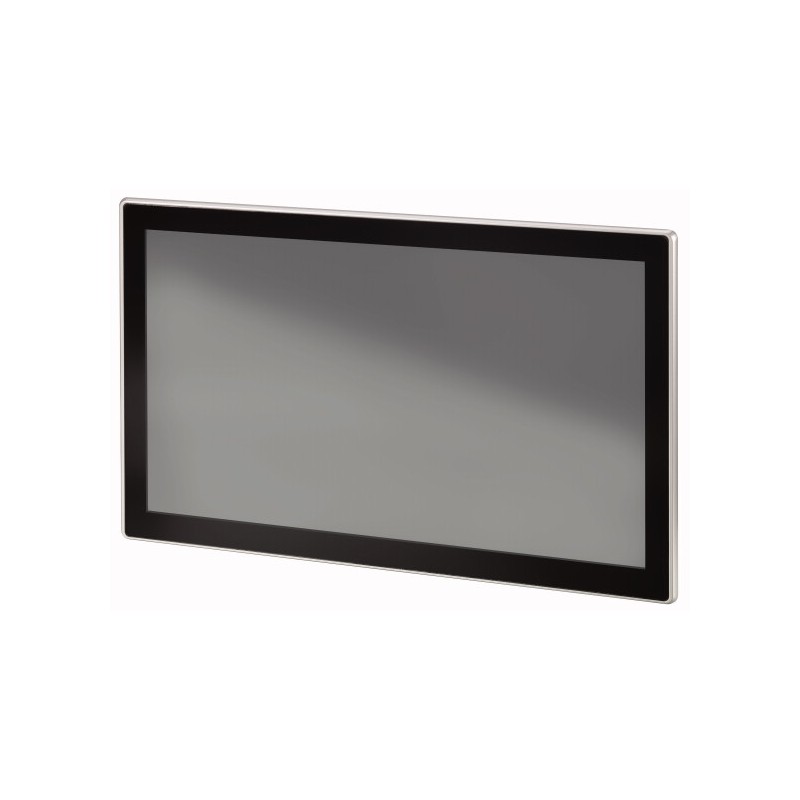

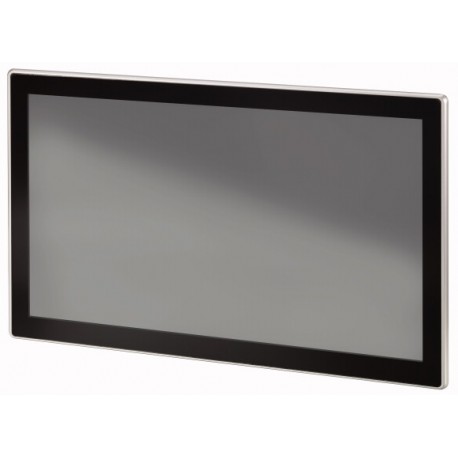

XP-503-21-A10-A00-2B 199700 EATON ELECTRIC Panel PC with capacitive multi-touch (PCT), 21. 5", 2xEthernet, 2..
XP-503-21-A10-A00-2B
199700
EATON-MOELLER
Panel PC with capacitive multi-touch (PCT), 21. 5", 2xEthernet, 2xUSB3.0, 1xRS232, 1xRS485, Galileo Runtime License, Windows 10 Enterprise LTSC
HMI Touch Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Panel PC with capacitive multi-touch (PCT), 21. 5", 2xEthernet, 2xUSB3.0, 1xRS232, 1xRS485, Galileo Runtime License, Windows 10 Enterprise LTSC
The XP500 series from Eaton, developed specifically for the needs of the machine building and plant engineering industries, enhances the field of automation with the contemporary and familiar control interfaces and operating controls that are now prevalent in consumer electronics. Projected Capacitive Touch (PCT) technology provides intuitive ease of use, and the multitouch functionality allows users to press functional buttons on the screen either with multiple fingers on one hand or using two hands. Just like on modern touchpads and smartphones, the operator can zoom into and scroll across elements and documents from the integrated help system using two fingers. The high-precision sensors prevent unintended commands or machine starts. For example, critical functions can only be activated by pressing multiple control fields at the same time, significantly enhancing system safety in comparison to single-touch panels. XP500 Panel PCs run on Windows 10 Enterprise LTSC. The devices are available with the following three widescreen display sizes: 10.1", 15.6", and 21.5". Their slim design, featuring a non-reflective glass front, delivers a modern look. Thanks to the rugged, scratch-resistant front and open device concept on the Panel PCs make them suitable for use in almost all branches of industry involved in mechanical and plant engineering.
Delivery program
Product range
Visualisation solutions XP
Product range
XP-503
Function
Industrial PC
Description
Panel PC with capacitive multitouch display
Common features of the model series
1.65 GHz dual-core CPU
Powerful graphic processor
4GB DDR3-RAM
Min. 32 GB SSD
min. 4 GB of CFast removable memory
2x Ethernet interface 10/100/1000 Mbps
2x USB host 3.0
1x RS232
1x RS485
1x DVI-I
Windows Embedded Standard 7
Galileo Open Runtime License
Approvals CE, cUL508, CUL Class 1 Div 2 in preparation
Powerful graphic processor
4GB DDR3-RAM
Min. 32 GB SSD
min. 4 GB of CFast removable memory
2x Ethernet interface 10/100/1000 Mbps
2x USB host 3.0
1x RS232
1x RS485
1x DVI-I
Windows Embedded Standard 7
Galileo Open Runtime License
Approvals CE, cUL508, CUL Class 1 Div 2 in preparation
Display - Type
Color display, TFT
Touch-technology
Capacitive multi-touch technology (PCT)
Number of colours
16.7 mil.
Resolution
WUXGA
1920 x 1080 Pixel
1920 x 1080 Pixel
Portrait format
no
Screen diagonal
21.5
widescreen Inch
widescreen Inch
Model
Die-cast aluminum enclosure and glass front in aluminum frame
Operating system
Windows
PLC-licence
Not offered by Eaton
License certificates for onboard interfaces
Not required
built-in interfaces
2 x Ethernet 1000/100/10 Mbps
2 x USB host 3.0
1 x RS232
1 x RS485
1 x DVI-I
2 x USB host 3.0
1 x RS232
1 x RS485
1 x DVI-I
Front type
Tempered glass with anti-reflective coating
Utilization
Flush mounting
Slots
For CFast memory cards: 1
Memory card automation
For CFast memory cards
Pluggable communication cards (optional)
no
Touch sensor
Multi-touch touch panel
Heat dissipation
41 W
Technical data
Display
Display - Type
Color display, TFT
Screen diagonal
21.5
widescreen Inch
widescreen Inch
Resolution
WUXGA
1920 x 1080 Pixel
1920 x 1080 Pixel
Visible screen area
476.64 x 268.11 mm
Format
16:9
Viewing range [[left/right/up/down]]
89°/89°/89°/89° ° (Degrees)
Number of colours
16.7 mil.
Contrast ratio (Normally)
Normally 5000:1
Brightness
Normally 300 cd/m2
Back-lighting
LED
Service life of back-lighting
Normally 50000 h
Operation
Technology
Projected Capacitive Touch (PCT)
Touch sensor
Multi-touch touch panel
System
Processor
x86, DualCore 1.65Ghz
Internal memory
4 GB of DDR3 RAM, min. 32 GB SSD
External memory
Min. 4 GB of CFast removable memory
Cooling
Fanless CPU and system cooling, natural convection-based passive cooling
Back-up of real-time clockBattery (service life)
Replaceable, Lithium CR2032 (220 mAh, 3V)
Back-up of real-time clockBackup (time at zero voltage)
Normally 5 years
Engineering
Visualisation software
Galileo or 3rd party
PLC-licence
Not offered by Eaton
Operating system
Windows
Interfaces, communication
built-in interfaces
2 x Ethernet 1000/100/10 Mbps
2 x USB host 3.0
1 x RS232
1 x RS485
1 x DVI-I
2 x USB host 3.0
1 x RS232
1 x RS485
1 x DVI-I
USB Host
2 x USB 3.0
RS-232
Not galvanically isolated, 9-pin D-sub plug, UNC
RS-485
Not galvanically isolated, 9-pin D-sub plug, UNC
Slots
For CFast memory cards: 1
Ethernet
10/100/1000 Mbps
Power supply
Nominal voltage
24 V DC SELV (safety extra low voltage)
permissible voltage
18-36 V DC
Heat dissipation
41 W
Current consumption [I]
max. 1.7 A A
General
Housing material
Aluminium die-cast
Front type
Tempered glass with anti-reflective coating
Dimensions (W x H x D)
536 x 328 x 84 mm
flush mounted
Clearance: W x H ≥ 50 mm (1.97"), T ≥ 20 mm (0.79")
Inclination from vertical: ⍺ ≦ ± 10 ° (if using natural convection)
Mounting plate: min. 1.5 mm (0.06"), max. 4 mm
Inclination from vertical: ⍺ ≦ ± 10 ° (if using natural convection)
Mounting plate: min. 1.5 mm (0.06"), max. 4 mm
Weight
7.55 kg
Degree of protection (IEC/EN 60529, EN50178, VBG 4)
IP65 (in the front as per EN 60529-1), IP20 (on rear as per EN 60529-1), NEMA12 (as per NEMA 250-2003)
ApprovalsApprovals
cUL (UL508)
Approvalscertificate
CE
Approvalsshipping classification
DNV GL
Approvals
Applied standards and directivesEMC
according to 2004/108/EC
Applied standards and directivesEmitted interference
As per EN 55022:2010 Class A and EN 61000-6-4:2007
Applied standards and directivesInterference immunity
As per EN 55024:2010 and EN 61000-6-2:2005
EN 61131-2:2007
EN 61131-2:2007
Free fall, packaged
gemäß ICE/EN 60068-2-32 m
RoHS
conform
Environmental conditions
Climatic environmental conditionsAir pressure (operation)
795 - 1080 hPa
TemperatureStorage / Transport [ϑ]
-20 - +60 °C
TemperatureOperating ambient temperature min.
0 °C
TemperatureOperating ambient temperature max.
+50 °C
Relative humidityCondensation
Non-condensing
Relative humidityRelative humidity
10 - 90%, non condensing
Design verification as per IEC/EN 61439
Technical data for design verification
Static heat dissipation, non-current-dependent [Pvs]
41 W
Operating ambient temperature min.
0 °C
Operating ambient temperature max.
+50 °C
Degree of Protection
IP65 (in the front as per EN 60529-1), IP20 (on rear as per EN 60529-1)
NEMA12 (as per NEMA 250-2003)
NEMA12 (as per NEMA 250-2003)
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply to plastic enclosures.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
PLC's (EG000024) / Panel PC (EC001414)
Information, communication and media technology / Computer system for industrial use / Industrial PC / Panel PC ([email protected] [AFR616003])
Supply voltage AC 50 Hz
0 - 0 V
Supply voltage AC 60 Hz
0 - 0 V
Supply voltage DC
18 - 36 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
Number of HW-interfaces SCSI
0
Number of HW-interfaces PS2
0
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
TFT
Screen diagonal
21.5 inch
Number of pixels, horizontal
1920
Number of pixels, vertical
1080
Preinstalled operating system
Other
Max. main memory
4000 MB
Integrated keyboard
No
Number of function buttons
0
Number of buttons with LED
0
Number of system buttons
0
With touch screen
Yes
Mouse-cursor control integrated
Yes
Degree of protection (IP), front side
IP65
Degree of protection (NEMA)
12
Operation temperature
0 - 50 °C
With hard disc
No
With CD-ROM drive
No
With DVD-drive
No
With CD-RW drive
No
With DVD RW drive
No
With floppy disc drive
No
With other storage media
No
Customer individual configuration
Yes
Number of free AGP-slots
0
Number of free PCI-slots
0
Number of free ISA-slots
0
Number of free PCMCIA-slots
0
Rail mounting possible
No
Wall mounting/direct mounting
No
Front build in possible
Yes
Rack-assembly possible
No
Mounting type, table foot
No
Mounting type, gallows mounting
No
Suitable for safety functions
No
Width of the front
536 mm
Height of the front
328 mm
Built-in depth
75.5 mm
Approvals
Product Standards
UL508, cULus; CE
UL File No.
E205091
CSA File No.
C22.2. No. 142-M1987
North America Certification
UL listed, certified by UL for use in Canada
Specially designed for North America
No
Current Limiting Circuit-Breaker
No
Degree of Protection
IEC: IP65, UL/CSA Type: -
Dimensions
XP-503 industrial PC with 21.5" screen diagonal
a, b ≧ 50 mm, c ≧ 20 mm, ϑ 0 ≦ T ≦ 50 °C
1,5 mm ≦ d ≦ 4 mm, e = 388 mm , f = 239 mm, ⍺ = 10°
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XP-503-21-A10-A00-2B 199700 EN_199700.pdf | 323 Kbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
