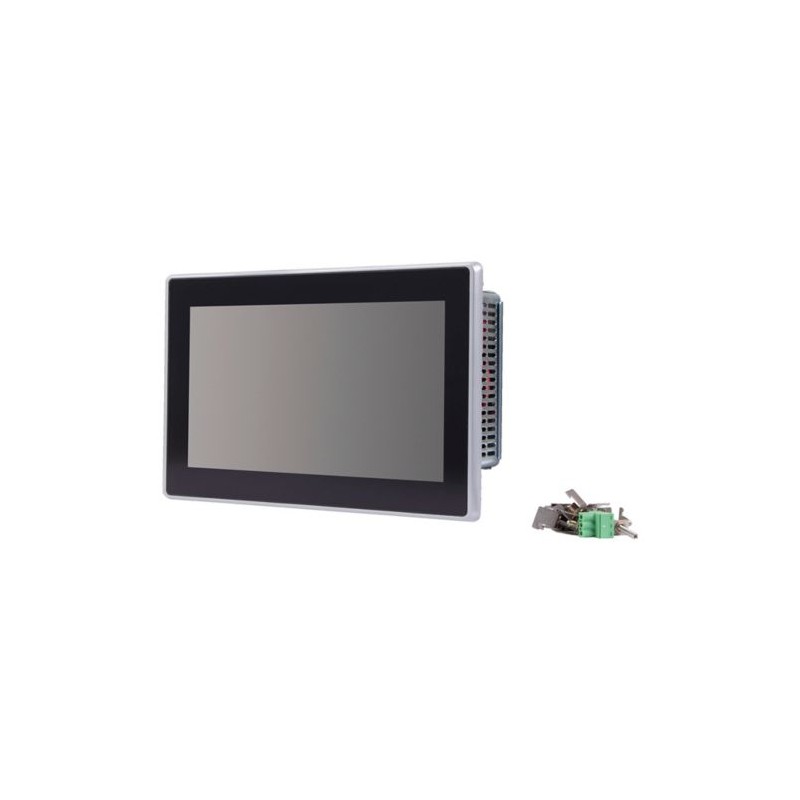

XP-503-10-A10-A00-1B 10, 1" panel PC with capacitive multi-touch (PCT), 2xEthernet, 2xUSB3.0, 1xRS232, 1xRS485, Galileo Runtime License

Capacitive Multi-Touch Panel PC; 10.1"; 2 x Ethernet; 2 x USB 3.0;

Panel PC, Capacitive multitouch (PCT), 10.1", 2 x Ethernet, 2 x USB 3.0, 1 x RS232, 1 x RS485, Windows 7, Galileo Runtime License

More details


PLC's > Panel PC

HMI Touch Terminals

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Panel PC, Capacitive multitouch (PCT), 10.1", 2 x Ethernet, 2 x USB 3.0, 1 x RS232, 1 x RS485, Windows 7, Galileo Runtime License
Panel PC, Touch technology: Multi-touch touch panel touch sensor, Capacitive multitouch (PCT), Screen size (diagonal): 10.1 Inch, Interfaces: 2 x Ethernet, 2 x USB 3.0, 1 x RS232, 1 x RS485, Operating system: Windows Embedded Standard 7, Software: Galileo or 3rd party, Galileo Open Runtime License, Main memory: 4000 MB, Degree of Protection (front side): IP65, Display type: Tempered glass with anti-reflective coating, TFT , the operator can zoom into and scroll across elements and documents from the integrated help system using two fingers. The high-precision sensors prevent unintended commands or machine starts. For example, critical functions can only be activated by pressing multiple control fields at the same time, significantly enhancing system safety in comparison to single-touch panels. XP500 Panel PCs run on Windows Embedded 7. The devices are available with the following three widescreen display sizes: 10.1", 15.6", and 21.5". Their slim design, featuring a non-reflective glass front, delivers a modern look. Thanks to the rugged , scratch-resistant front and open device concept on the Panel PCs make them suitable for use in almost all branches of industry involved in mechanical and plant engineering.

General specifications
Product name
Eaton XP Panel PC
Part no.
XP-503-10-A10-A00-1B
EAN
7640130098145
Product Length/Depth
276 millimetre
Product height
81 millimetre
Product width
179 millimetre
Product weight
2.7 kilogram
Certifications
UL508
CUL508
UL File No.: E205091
DNV GL
CSA File No.: C22.2. No. 142-M1987
EMC according to 2014/30/EU
Certified by UL for use in Canada
CULus
UL
CE
Product Tradename
XP
Product Type
Panel PC
Product Sub Type
None
Catalog Notes
For CFast memory cards
License certificates for onboard interfaces not required
Not offered by Eaton
Features & Functions
Enclosure material
Aluminum (die-cast)
Features
Min. 32 GByte SSD
1 x RS485
Powerful graphic processor
2 x Ethernet interface 10/100/1000 Mbps
4 GByte DDR3-RAM
Fanless CPU and system cooling, natural convection-based passive cooling
1.65 GHz dual-core CPU
min. 4 GByte of CFast removable memory
2 x USB host 3.0
1 x DVI-I
Customer individual configuration
1 x RS232
Fitted with:
2 x Ethernet 1000/100/10 Mbps (built-in interface)
2 x USB host 3.0 (built-in interface)
1 x RS232 (built-in interface)
Touch screen
1 x RS485 (built-in interface)
1 x DVI-I (built-in interfaces)
Functions
Mouse-cursor control integrated
General information
Current consumption
1.2 A max.
Degree of protection
NEMA 12
IP20, rear (according to EN 60529-1)
Degree of protection (front side)
IP65
Emitted interference
Class A (according to EN 55022:2010 and EN 61000-6-4:2007)
Interfaces
Ethernet (10/100/1000 Mbps)
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
2 x USB 3.0 Host
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
Interference immunity
According to EN 55024:2010
According to EN 61131-2:2007
According to EN 61000-6-2:2005
Model
Die-cast aluminum enclosure and glass front in aluminum frame
Mounting method
Front build in possible
Flush mounting - Clearance: Width x Height ≥ 50 mm (1.97"), Depth ≥ 20 mm (0.79")
Flush mounting - Inclination from vertical: ⍺ ≤ ± 10 ° (if using natural convection)
Flush mounting
Flush mounting - Mounting plate: min. 1.5 mm (0.06"), max. 4 mm
Number of slots
1 (for CFast memory cards)
Product category
Panel PC
Protocol
EtherNet/IP
MODBUS
Other bus systems
RoHs conformity
Yes
Software
Galileo Open Runtime License
Galileo or 3rd party
Type
Industrial PC
Voltage type
DC
Climatic environmental conditions
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 90 % (non-condensing)
Electrical rating
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage
18-36 V DC, Power supply, permissible voltage
Supply voltage at AC, 50 Hz - min
0
Supply voltage at AC, 50 Hz - max
0
Supply voltage at DC - min
18
Supply voltage at DC - max
36
Display
Display contrast ratio
500:1
Display lighting
Single LED (side-light type)
Display size
222.72 x 125.28 mm
16:9
Display type
Tempered glass with anti-reflective coating
TFT
Display viewing angle
70°/70°/70°/50° (left/right/up/down)
Lifespan
50,000 h (Service life of back-lighting)
Luminance intensity
550 cd/m²
Number of colors of the display
262144
Pixel resolution
WSVGA
1024 x 600
Screen size (diagonal)
10.1 in
Touch technology
Multi-touch touch panel touch sensor
Capacitive multitouch (PCT)
System
Backup time
5 years, typ. (time at zero voltage)
Battery runtime
Back-up of real-time clock: CR 2032 (220 mA/h, 3 V), replaceable
External memory
Min. 4 GB of CFast removable memory
Internal memory
4 GByte of DDR3 RAM, min. 32 GByte SSD
Memory capacity
4,000 MB
Operating system
Windows Embedded Standard 7
Processor
X86, DualCore 1.65Ghz
Design verification
Equipment heat dissipation, current-dependent Pvid
29 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
29 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 8.0

Programmable logic controllers PLC (EG000024) / Panel PC (EC001414)
Information, communication and media technology / Computer system for industrial use / Industrial PC / Panel PC ([email protected] [AFR616003])
Supply voltage AC 50 Hz
0 - 0 V
Supply voltage AC 60 Hz
0 - 0 V
Supply voltage DC
18 - 36 V
Voltage type of supply voltage
DC
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
Number of HW-interfaces SCSI
0
Number of HW-interfaces PS2
0
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Type of display
TFT
Screen diagonal
10.1 inch
Number of pixels, horizontal
1,024
Number of pixels, vertical
600
Preinstalled operating system
Windows Embedded Standard 7
Max. main memory
4,000 MB
Integrated keyboard
No
Number of function buttons
0
Number of buttons with LED
0
Number of system buttons
0
With touch screen
Yes
Mouse-cursor control integrated
Yes
Degree of protection (IP), front side
IP65
Degree of protection (NEMA)
12
Operating temperature
0 - 50 °C
With hard disc
No
With CD-ROM drive
No
With DVD-drive
No
With CD-RW drive
No
With DVD RW drive
No
With floppy disc drive
No
With other storage media
No
Customer individual configuration
Yes
Number of free AGP-slots
0
Number of free PCI-slots
0
Number of free ISA-slots
0
Number of free PCMCIA-slots
0
Rail mounting possible
No
Wall mounting/direct mounting
No
Front built-in possible
Yes
Rack-assembly possible
No
Mounting type, table foot
No
Mounting type, gallows mounting
No
Suitable for safety functions
No
Width of the front
276 mm
Height of the front
179 mm
Built-in depth
73.5 mm

Datasheet - PDF

▲
