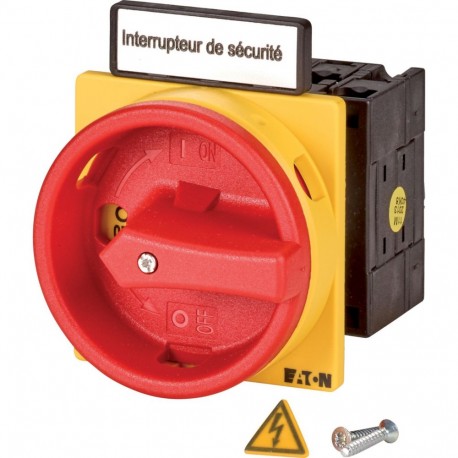

T3-2-2092CH/EA/SVB-SI-CHF 172963 Y7-172963 EATON ELECTRIC SUVA safety switches, 32 A, Emergency-Stop functio..
T3-2-2092CH/EA/SVB-SI-CHF
172963
Y7-172963
EATON-MOELLER
SUVA safety switches, 32 A, Emergency-Stop function, Lockable in the 0 (Off) position, flush mounting, with warning label „Interrupteur de sécurité“
T3-2-2092CH/EA/SVB-SI-CHF
Eaton Moeller® series T3 SUVA safety switches, T3, 32 A, flush mounting, 2 N/O, 2 N/C, Emergency switching off function, with warning label „Interrupteur de sécurité“
SUVA safety switch, Product range: SUVA safety switches, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: with warning label „Interrupteur de sécurité“, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Low-voltage industrial components > Switch disconnector
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | Yes |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 32 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 32 A |
| Rated operation power at AC-3, 400 V (EF001364) | 11 kW |
| Rated short-time withstand current lcw (EF007050) | 0.65 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 15 kW |
| Switching power at 400 V (EF009166) | 15 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 1 kA |
| Number of poles (EF001391) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Door coupling rotary drive |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 65 mm |
| Height (EF000040) | 74 mm |
| Depth (EF000049) | 127 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| T3-2-2092CH/EA/SVB-SI-CHF Y7-172963 172963 ES_172962.pdf | 397 Kbytes |
|
