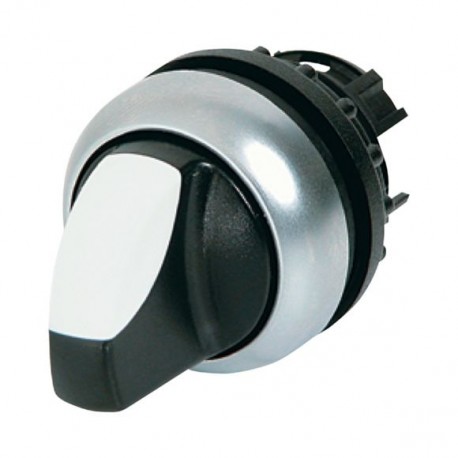

M22-WK3 216870 Y7-216870 EATON ELECTRIC Selector switch, toggle, 3 positions, black, momentary
M22-WK3
216870
Y7-216870
EATON-MOELLER
Selector switch, toggle, 3 positions, black, momentary
M22-WK3
Eaton Moeller® series M22 Selector switch, RMQ-Titan, With thumb-grip, momentary, 3 positions, Bezel: titanium
Changeover switch, Product range: RMQ-Titan, Single unit, Design: With thumb-grip, momentary, 3 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, with plunger bridge for the middle contact, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66
Low-voltage industrial components > Front element for selector switch
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Often bought together
▲Best sellers
▲More info
▲General specifications
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
EN 60947-5
IEC 60947-5
VDE
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
CSA
UL Category Control No.: NKCR
UL File No.: E29184
CE
IEC/EN 60947
VDE 0660
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 3 |
| Type of control element (EF006976) | Toggle |
| Suitable for lighting (EF001142) | No |
| Colour control element (EF007167) | Black |
| Colour indicator light cap (EF007165) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Titanium |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-WK3 Y7-216870 216870 EN_289241.pdf | 3 Mbytes |
|
