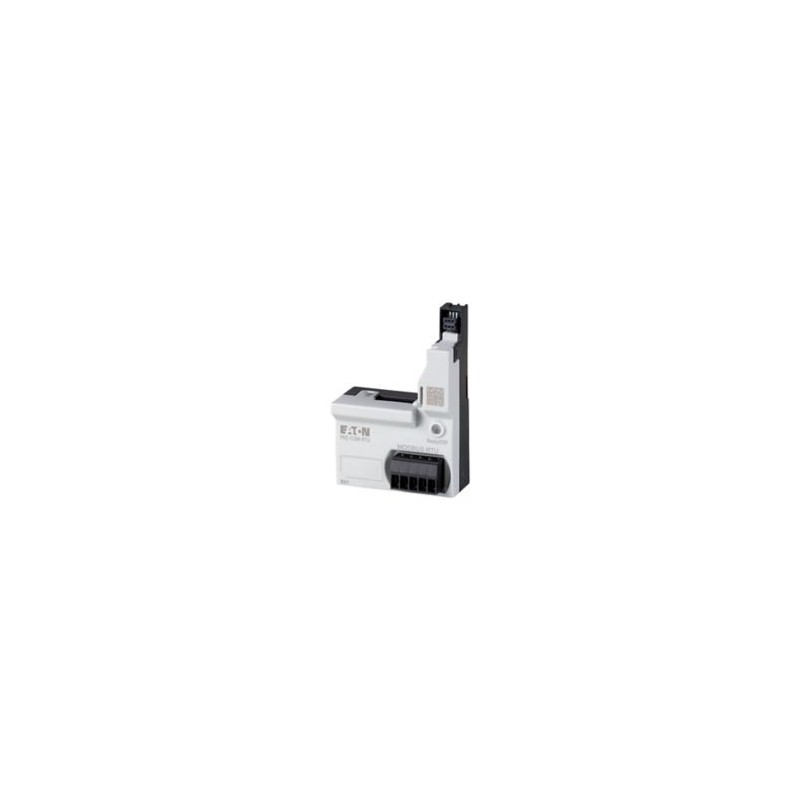

PKE-COM-RTU 199344 EATON ELECTRIC Function element for connecting interface to Modbus RTU
PKE-COM-RTU
199344
EATON-MOELLER
Function element for connecting interface to Modbus RTU
Circuit Breakers PKZ
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Function element for connecting interface to Modbus RTU
Function element, For connecting the PKE with PKE-XTU(W)CP-... trip blocks to modbus RTU, Fitted on PKE motor-protective circuit-breaker, Messages: Contactor state PKE, All phase currents in %, Thermal load as a %, Trip indications (Overload, Short-circuit,...), Set value of overload releases, Set short-circuit release value, Part no. of trip block, Trip and switch-on counter, Commands: Remote disconnection of motor-protective circuit-breaker, Plug with connection terminals included in delivery., For use with PKE12, PKE32, PKE65
Delivery program
Product range
Accessories
Accessories
Modbus RTU PKE module
Function
For connecting the PKE with PKE-XTU(W)CP-... trip blocks to modbus RTU
Description
Fitted on PKE motor-protective circuit-breaker
Messages
Contactor state PKE
All phase currents in %
Thermal load as a %
Trip indications (Overload, Short-circuit,...)
Set value of overload releases
Set short-circuit release value
Part no. of trip block
Trip and switch-on counter
All phase currents in %
Thermal load as a %
Trip indications (Overload, Short-circuit,...)
Set value of overload releases
Set short-circuit release value
Part no. of trip block
Trip and switch-on counter
Commands
Remote disconnection of motor-protective circuit-breaker
Information about equipment supplied
Plug with connection terminals included in delivery.
For use with
PKE12
PKE32
PKE65
PKE32
PKE65
Instructions
For motor-starter combinations, please use the following connectors:
PKZM0-XDM15ME (for motor-starter combinations with DILM7…15 to 7.5 kW (400 V, 50 Hz)
PKZM0-XDM32ME (for motor-starter combinations with DILM17…38 to 18.5 kW (400 V, 50 Hz)
PKZM0-XDM15ME (for motor-starter combinations with DILM7…15 to 7.5 kW (400 V, 50 Hz)
PKZM0-XDM32ME (for motor-starter combinations with DILM17…38 to 18.5 kW (400 V, 50 Hz)
Technical data
General
Standards
IEC/EN 61131-2
Dimensions (W x H x D)
45 x 41 x 67,5 mm
Weight
0.04 kg
Mounting
an PKE12/32/65
Mounting position
as PKE12/35/65
Ambient conditions, mechanical
Protection type (IEC/EN 60529, EN50178, VBG 4)
IP20
Vibrations (IEC/EN 61131-2:2008)Constant amplitude 3,5 mm
5 - 8.4 Hz
Vibrations (IEC/EN 61131-2:2008)Constant acceleration 1 g
8.4 - 150 Hz
Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms
9 Impacts
Drop to IEC/EN 60068-2-31 [Drop height]
50 mm
Free fall, packaged (IEC/EN 60068-2-32)
0.3 m
Electromagnetic compatibility (EMC)
Overvoltage category
II
Pollution degree
2
Electrostatic discharge (IEC/EN 61131-2:2008)Air discharge (Level 3)
8 kV
Electrostatic discharge (IEC/EN 61131-2:2008)Contact discharge (Level 2)
4 kV
Electromagnetic fields (IEC/EN 61131-2:2008)80 - 1000 MHz
10 V/m
Electromagnetic fields (IEC/EN 61131-2:2008)1.4 - 2 GHz
3 V/m
Electromagnetic fields (IEC/EN 61131-2:2008)2 - 2.7 GHz
1 V/m
Radio interference suppression
EN 55011 Class A
Burst (IEC/EN 61131-2:2008, Level 3)Signal cable
1 kV
Radiated RFI (IEC/EN 61131-2:2008, Level 3)
10 V
Climatic environmental conditions
Operating ambient temperature (IEC 60068-2)Ambient temperature
-25 - +60 °C
Condensation
Take appropriate measures to prevent condensation
Storage [ϑ]
-30 - +70 °C
Relative humidity, non-condensing (IEC/EN 60068-2-30)
5 - 95 %
Design verification as per IEC/EN 61439
Technical data for design verification
Static heat dissipation, non-current-dependent [Pvs]
0.5 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 8.0
Programmable logic controllers PLC (EG000024) / Fieldbus, decentr. periphery - communication module (EC001604)
Electric engineering, automation, process control engineering / Control / Field bus, decentralized peripheral / Field bus, decentralized peripheral - communications module ([email protected] [BAA073013])
Supply voltage AC 50 Hz
0 - 0 V
Supply voltage AC 60 Hz
0 - 0 V
Supply voltage DC
15 - 15 V
Voltage type of supply voltage
DC
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for SERCOS
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard eGPRS
No
Radio standard GSM
No
Radio standard LTE
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP20
With potential separation
Yes
Fieldbus connection over separate bus coupler possible
No
Rail mounting possible
No
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
67.5 mm
Height
65 mm
Depth
75 mm
Approvals
Product Standards
UL508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.
E36332
UL Category Control No.
NKCR
CSA File No.
165628
North America Certification
UL listed, CSA certified
Specially designed for North America
No
