NZM4-XKV95-2KB

119861

Y7-119861

EATON-MOELLER

Connection width extension, 3p, 2 studs, size 3

NZM4-XKV95-2KB

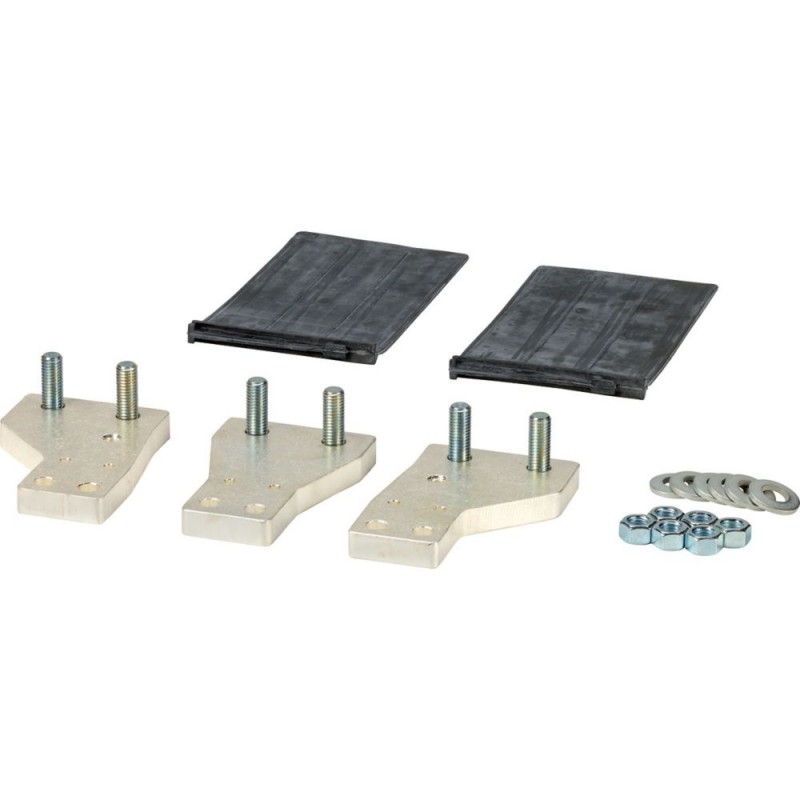

Eaton Moeller series NZM - Molded Case Circuit Breaker. Connection width extension, 3p, 2 studs, size 3

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 pole circuit-breakers. Threaded studs for cable lugs up to 4 x 300 mm² can be fitted to circuit-breaker with screw connection. Phase isolator, insulation plate and 2 control circuit terminals included as standard. can be used for: NZM4, N(S)4

More details


Low-voltage industrial components > Wiring set for power circuit breaker

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $612.60
Unit price: $612.60
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM connection type
Catalog Number
119861
Model Code
NZM4-XKV95-2KB
EAN
4015081177127
Product Length/Depth
128 mm
Product Height
130 mm
Product Width
120 mm
Product Weight
3.3 kg
Compliances
UL/CSA
IEC
RoHS conform
Certifications
UL listed
UL (File No. E31593)
UL489
IEC60947
CE marking
CSA (Class No. 1432-01)
UL (Category Control Number DIHS)
CSA-C22.2 No. 5-09
CSA certified
CSA (File No. 22086)

Product specifications

Type
AccessoryConnection width extensionTerminal
Special features
Two M12 threaded studs
Amperage Rating
1600 A
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM4
Used with
NZM4, N(S)4
Suitable for
Copper cable lugs
Three-pole
Number of poles
Three-pole
Terminal capacity (copper strip)
10 segments of 80 mm x 1 mm (2x)
Model
Other
Terminal capacity (stranded cable)
95 mm² - 300 mm² (4x)
500 AWG/kcmil (4x)
Terminal capacity (copper busbar)
10 mm x 80 mm (2x)

ETIM for 119861 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 3
Model (EF000010) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZM4-XKV95-2KB Y7-119861 119861 EN_119860.pdf 627 Kbytes NZM4-XKV95-2KB Y7-119861 119861 EN_119860.pdf
