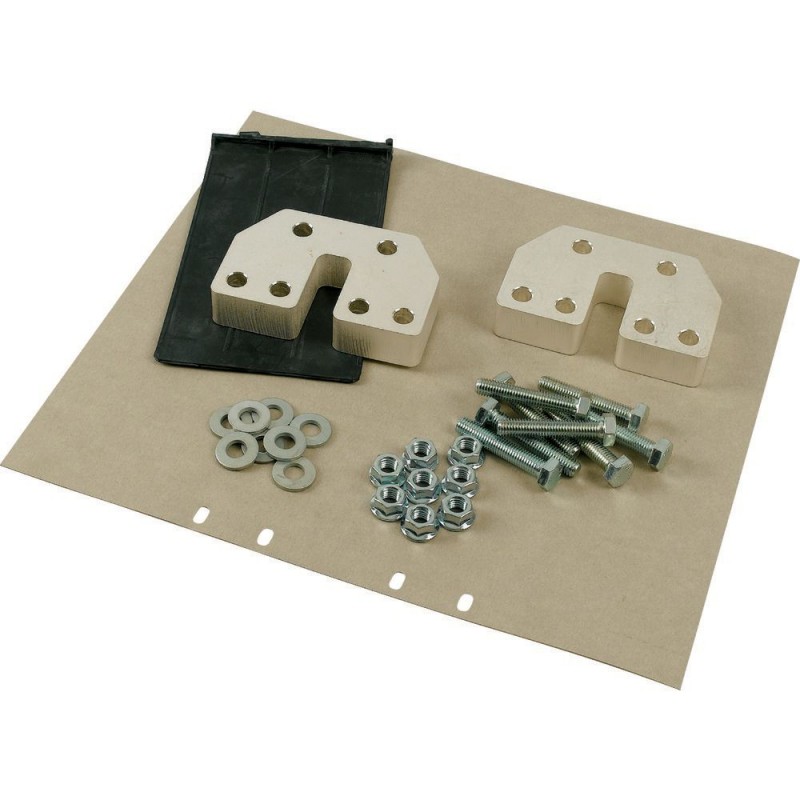

NZM4-4-XKVI2P 180020 Y7-180020 EATON ELECTRIC Link set, +insulating plates, 4p, /2p View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM4-4-XKVI2P 180020 Y7-180020 EATON ELECTRIC Link set, +insulating plates, 4p, /2p

NZM4-4-XKVI2P

180020

Y7-180020

EATON-MOELLER

Link set, +insulating plates, 4p, /2p

NZM4-4-XKVI2P

Eaton Moeller series NZM - Molded Case Circuit Breaker. Link set, +insulating plates, 4p, /2p

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Notes: type contains parts for both switch sides for 4 pole N..-S1(15)-DC(-PV-NA) switches, that are used as 1 pole switches for DC. The links are used to connect contacts in series. Jumper kit with cover for use with: N4-4-..S1(15)-DC, N4-4-...S1(15)-PV-NA

More details


Low-voltage industrial components > Wiring set for power circuit breaker

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $497.83
Unit price: $497.83
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM link kit
Catalog Number
180020
Model Code
NZM4-4-XKVI2P
EAN
4015081751730
Product Length/Depth
240 mm
Product Height
210 mm
Product Width
100 mm
Product Weight
4.244 kg
Compliances
IEC
UL489B
RoHS conform
Certifications
UL (File No. E471671)
UL 489B
CE marking
IEC 60947-3
UL listed

Product specifications

Used with
N4-4-(800)(1000)(1250)(1400)-S1(-S15)-DC
N4-4-...-S1(-S15)-PV-NA
Type
AccessoryDC link kitTerminal
Special features
Jumper kit with insulating plates, phase isolators IP00 and heat sinks
Amperage Rating
1400 A (40 °C), 1260 A (65 °C)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply to plastic enclosures.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM4
Suitable for
Two-pole
Voltage rating (UL CSA 13)
Max. 1500 V DC
Degree of protection
IP20
Number of poles
Two-pole
Model
Other

ETIM for 180020 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 2
Model (EF000010) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
