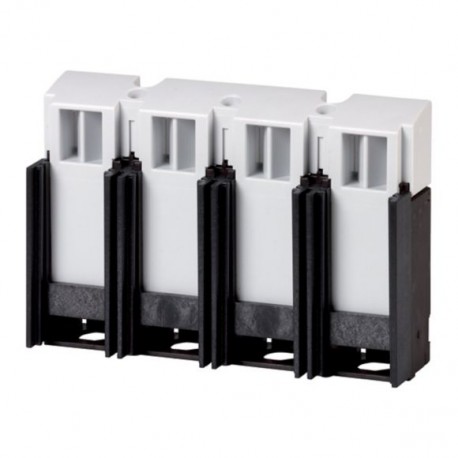

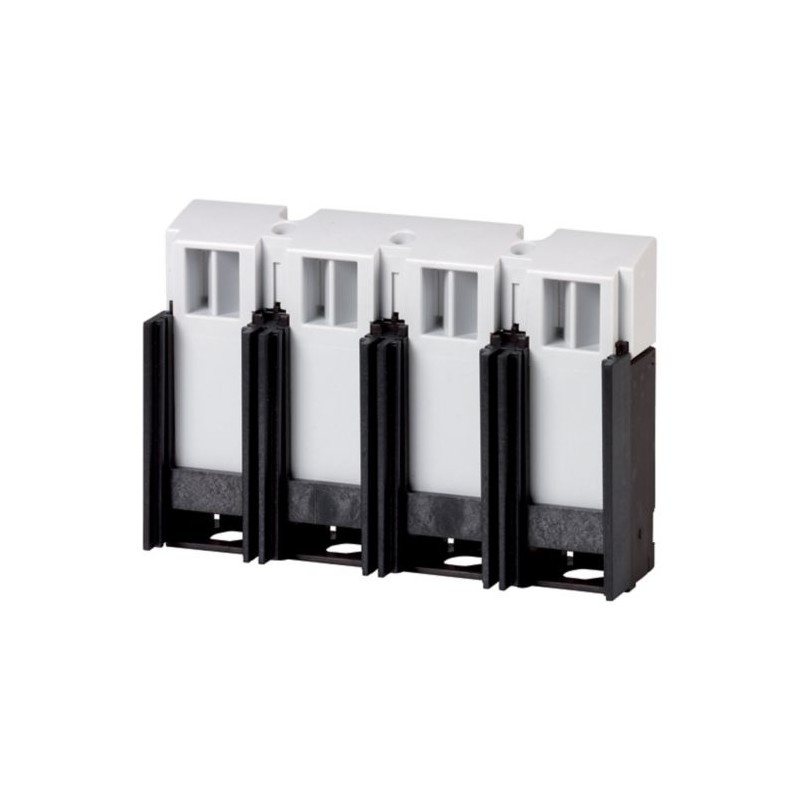

+NZM3-4-XKR13U 118909 Y7-118909 EATON ELECTRIC Connection block for component adapters bottom 4p, size 3. Ca.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

+NZM3-4-XKR13U 118909 Y7-118909 EATON ELECTRIC Connection block for component adapters bottom 4p, size 3. Ca..

+NZM3-4-XKR13U

118909

Y7-118909

EATON-MOELLER

Connection block for component adapters bottom 4p, size 3. Can only be sold assembled.

+NZM3-4-XKR13U

Connection block for component adapters bottom 4p, size 3

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. and part no. suffix include parts for one switch side at top or bottom (with NZM3 top only). Required with component adapter and switch with connection on rear. Can be used for NZM3-4, PN3-4, N(S)3-4

More details


Low-voltage industrial components > Wiring set for power circuit breaker

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Connection block for component adapters bottom 4p, size 3
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. and part no. suffix include parts for one switch side at top or bottom (with NZM3 top only). Required with component adapter and switch with connection on rear. Can be used for NZM3-4, PN3-4, N(S)3-4

General specifications
Product name
Eaton Moeller series NZM multi-function device adapter
Part no.
+NZM3-4-XKR13U
EAN
4015081171088
Product Length/Depth
180 millimetre
Product height
30 millimetre
Product width
110 millimetre
Product weight
0.3 kilogram
Compliances
IEC
RoHS conform
Certifications
UL (Category Control Number DIVQ)
UL489
CSA (File No. 22086)
CSA-C22.2 No. 5-09
Specially designed for North America
CSA certified
UL listed
CSA (Class No. 1432-01)
CE marking
UL (File No. E31593)
IEC60947-2
Product Tradename
NZM
Product Type
Accessories
Product Sub Type
Multi-function device adapter
Delivery program
Type
60 mm systemAccessoryAccessory, multifunction component adapterConnection blockConnection block for component adapter
Number of poles
Four-pole
Amperage Rating
630 A
Special features
Current limiting circuit breakerFor NZM3 component adapter, connection on bottom
Frame
NZM3
Suitable for
Four-pole
Used with
NZM3-4
PN3-4
Feeder circuits, branch circuits
N(S)3-4
Technical Data - Electrical
Voltage rating (UL CSA 13)
Max. 480 Y / 277 V
Technical Data - Mechanical
Mounting position
Fitted at the bottom
Degree of protection
IP20
Special features
Current limiting circuit breakerFor NZM3 component adapter, connection on bottom
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Model
Other

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Wiring set for power circuit breaker (EC002050)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Wiring set for circuit breaker (ecl@ss13-27-37-04-24 [ACN957016])
Suitable for number of poles
4
Model
Other

ETIM for 118909 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 4
Model (EF000010) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
+NZM3-4-XKR13U Y7-118909 118909 EN_118909.pdf 111 Kbytes +NZM3-4-XKR13U Y7-118909 118909 EN_118909.pdf
