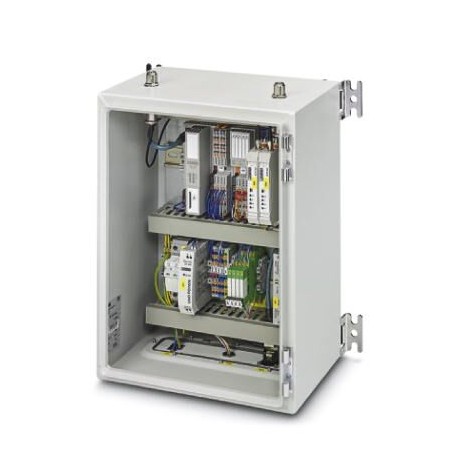

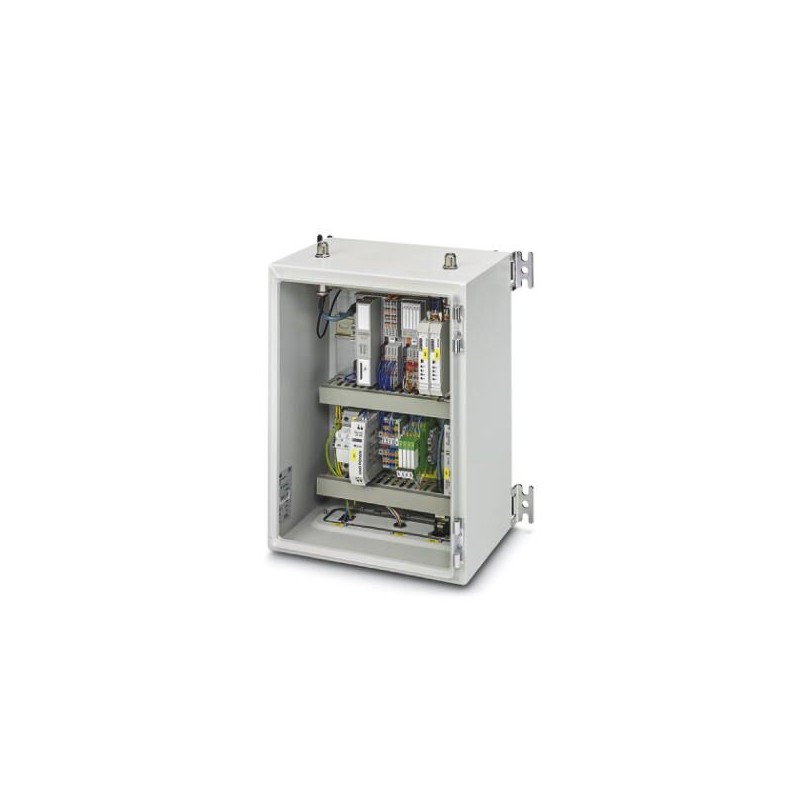

WIL-ID-S-915MHZ 1095656 PHOENIX CONTACT Sensor-supported evaluation unit, component of the ID-S ice detectio..
WIL-BI-IDS-915-00
1095656
PHOENIX_CONTACT
Sensor-supported evaluation unit, component of the ID-S ice detection system, communication via 915 MHz frequency band as well as Modbus/TCP and PROFINET
Industry Solutions (IS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Ambient conditions
| Ambient temperature (operation) | -25 °C ... 50 °C |
|---|---|
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above mean sea level) |
| Permissible humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Dimensions
| Outer dimensions: width, height, depth | 300 mm x 400 mm x 210 mm |
|---|---|
| 354 mm x 467 mm x 210 mm (With wall mounting brackets and connections) |
Technical characteristics
| Nominal power | 30 W |
|---|---|
| Nominal current IN | 0.13 A |
| Nominal voltage UN | 230 V AC (50 Hz) |
| Control voltage | 24 V DC |
| Nominal current control voltage | 1.25 A |
| Recommended backup fuse for 230 V AC | 6 A (Characteristic B, 1-pos.) |
| Recommended backup fuse | 6 A (Characteristic B, 1-pos.) |
| Frequency range | 902 MHz ... 928 MHz (typical: 915 MHz) |
Classifications
