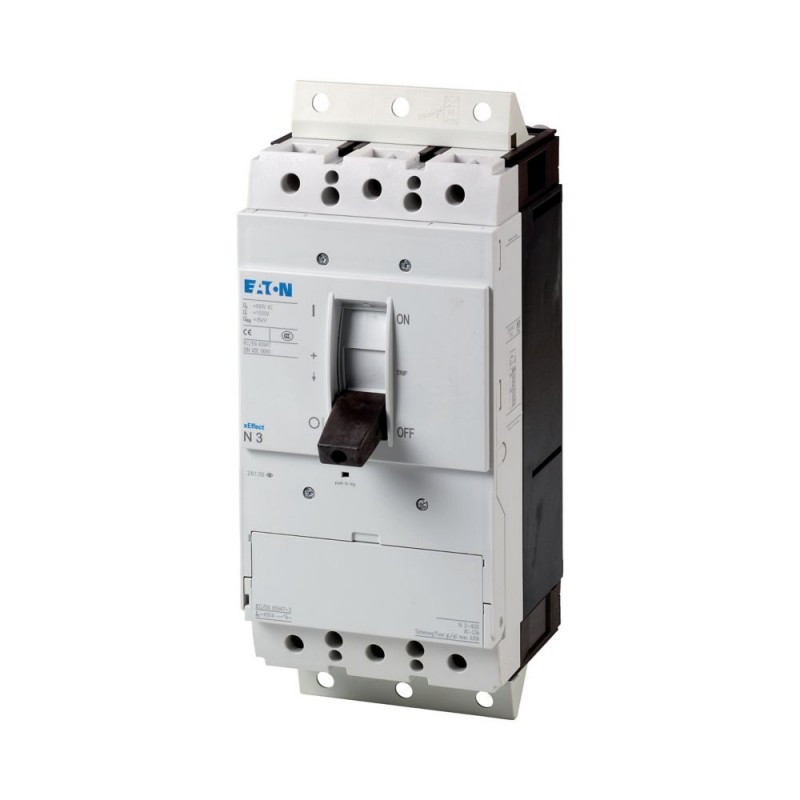

N3-400-SVE 168544 Y7-168544 EATON ELECTRIC Switch-disconnector 3p + plug-in contacts
N3-400-SVE
168544
Y7-168544
EATON-MOELLER
Switch-disconnector 3p + plug-in contacts
N3-400-SVE
Eaton Moeller series NZM - Molded Case Circuit Breaker. Switch-disconnector 3p + plug-in contacts, 400A
Series NZM circuit-breakers cover all application cases with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to the use of modular function groups.
Low-voltage industrial components > Switch disconnector
Circuit Breakers NZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton Moeller series NZM switch-disconnector
Catalog Number
168544
Model Code
N3-400-SVE
EAN
4015081650194
Product Length/Depth
335 mm
Product Height
215.2 mm
Product Width
140 mm
Product Weight
5.42 kg
Compliances
RoHS conform
Product specifications
Special features
Busbar tag shroud to VDE 0160 Part 100.Main switch characteristics including positive drive to IEC/EN 60204 and VDE 0113.Isolating characteristics to IEC/EN 60947-3 and VDE 0660.Rated current = rated uninterrupted current: 400 A
Amperage Rating
400 A
Voltage rating
690 V - 690 V
Features
Motor drive optional
Version as emergency stop installation
Version as maintenance-/service switch
Version as main switch
Version as emergency stop installation
Version as maintenance-/service switch
Version as main switch
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Mounting Method
Intermediate mounting
Built-in device plug-in technique
Distribution board installation
Ground mounting
Built-in device plug-in technique
Distribution board installation
Ground mounting
Equipment heat dissipation, current-dependent
43.2 W
Rated short-time withstand current (Icw)
12 kA
Degree of protection
IP20
Electrical connection type of main circuit
Screw connection
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
40 °C
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Rated operating power at AC-23, 400 V
200 kW
Rated operating power at AC-3, 400 V
0 kW
Degree of protection (IP), front side
IP20
Number of poles
Three-pole
Handle color
Black
Functions
Interlockable
Voltage release optional
Voltage release optional
Number of switches
1
Rated conditional short-circuit current (Iq)
0 kA
Rated operating voltage (Ue) at AC - max
690 V
Rated permanent current at AC-21, 400 V
0 A
Rated permanent current at AC-23, 400 V
0 A
Switching power at 400 V
0 kW
Handle type
Rocker lever
Short-circuit protective device fuses - max
630 A gL
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | Yes |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 0 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 0 A |
| Rated operation power at AC-3, 400 V (EF001364) | 0 kW |
| Rated short-time withstand current lcw (EF007050) | 12 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 200 kW |
| Switching power at 400 V (EF009166) | 0 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 0 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Rocker lever |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
| Width (EF000008) | 140 mm |
| Height (EF000040) | 215.2 mm |
| Depth (EF000049) | 335 mm |
