> EATON - MOELLER>Auxiliary Control and Signalling Elements >M22S-DZ-X 259522 M22S-DZ-XQ ELECTRIC Release pushbutton, without button plate, Bezel: black
Previous Product Next Product

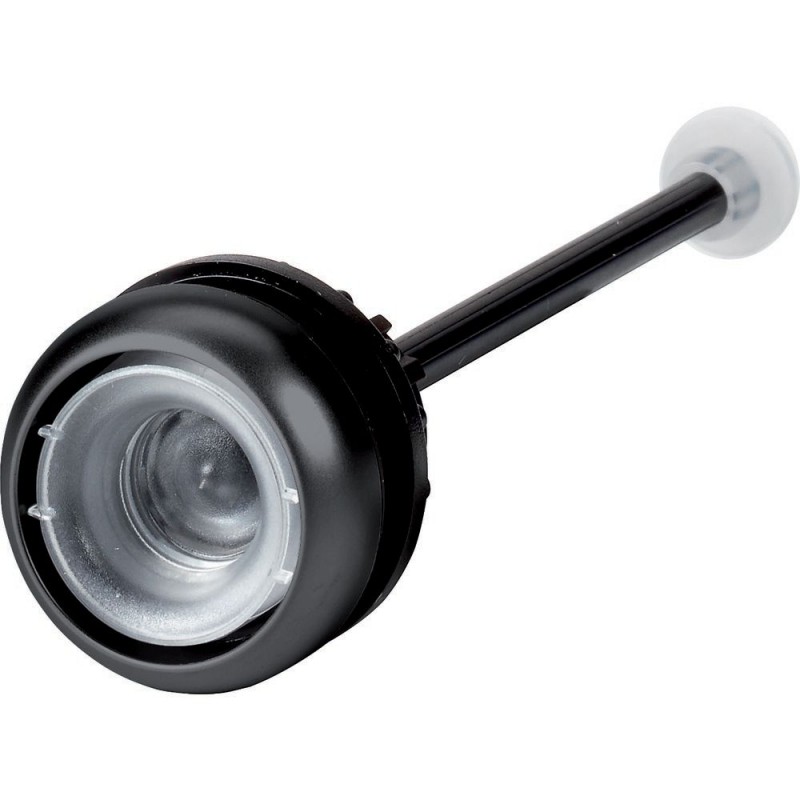

M22S-DZ-X 259522 M22S-DZ-XQ EATON ELECTRIC Release pushbutton, without button plate, Bezel: black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

M22S-DZ-X 259522 M22S-DZ-XQ EATON ELECTRIC Release pushbutton, without button plate, Bezel: black

M22S-DZ-X

259522

M22S-DZ-XQ

EATON-MOELLER

Release pushbutton, without button plate, Bezel: black

More details


Auxiliary Control and Signalling Elements

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products


More info

▲


Release pushbutton, without button plate, Bezel: black
Release pushbutton, Basic function accessories: Reset buttons, Accessories: Pushbuttons, Function: For enclosed overload relays, For enclosed overload relays, Mounting diameter: 22.3 mm, Mounting diameter: 22.3 mm, Without button plate, add button plate., Front ring: Bezel: black, Connection to SmartWire-DT: no, For use with: ZW7..., ZE, Z5, ZB12, ZB32, ZB65, ZB150

Delivery program

Accessories
General accessories
Product range
Accessories
Basic function accessories
Reset buttons
Accessories
Pushbuttons
Function
For enclosed overload relays
For enclosed overload relays
Mounting diameter: 22.3 mm
Description
Mounting diameter: 22.3 mm
Button plate

Without button plate, add button plate.

Front ring
Bezel: black
Connection to SmartWire-DT
no
For use with
ZW7...
ZE
Z5
ZB12
ZB32
ZB65
ZB150

Technical data

General
Ambient temperatureOpen
-25 - +70 °C

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 8.0

Low-voltage industrial components (EG000017) / Front element for push button (EC000221)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for push-button actuators ([email protected] [AKF028014])
Colour button
Without button plate
Number of command positions
1
Construction type lens
Round
Hole diameter
22 mm
Width opening
0 mm
Height opening
0 mm
Type of button
Flat
Suitable for illumination
No
With protective cover
No
Labelled
No
Switching function latching
No
Spring-return
Yes
With front ring
Yes
Material front ring
Plastic
Colour front ring
Black
Degree of protection (IP), front side
IP67
Degree of protection (NEMA), front side
4X

Approvals

Product Standards
UL 508; CSA-C22.2 No. 14; IEC/EN 60947; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Specially designed for North America
No

Dimensions

230X010

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
M22S-DZ-X M22S-DZ-XQ 259522 EN_259522.pdf 188 Kbytes M22S-DZ-X M22S-DZ-XQ 259522 EN_259522.pdf
