> EATON - MOELLER>Auxiliary Control and Signalling Elements >M22-WJS2H-2P 178565 ELECTRIC Joystick 2 positions horizontal 2 operating points metal shaft
Previous Product Next Product

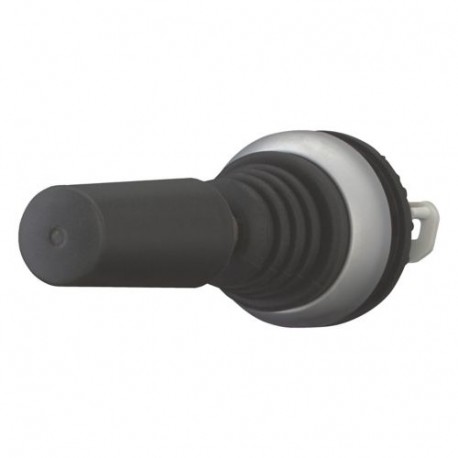

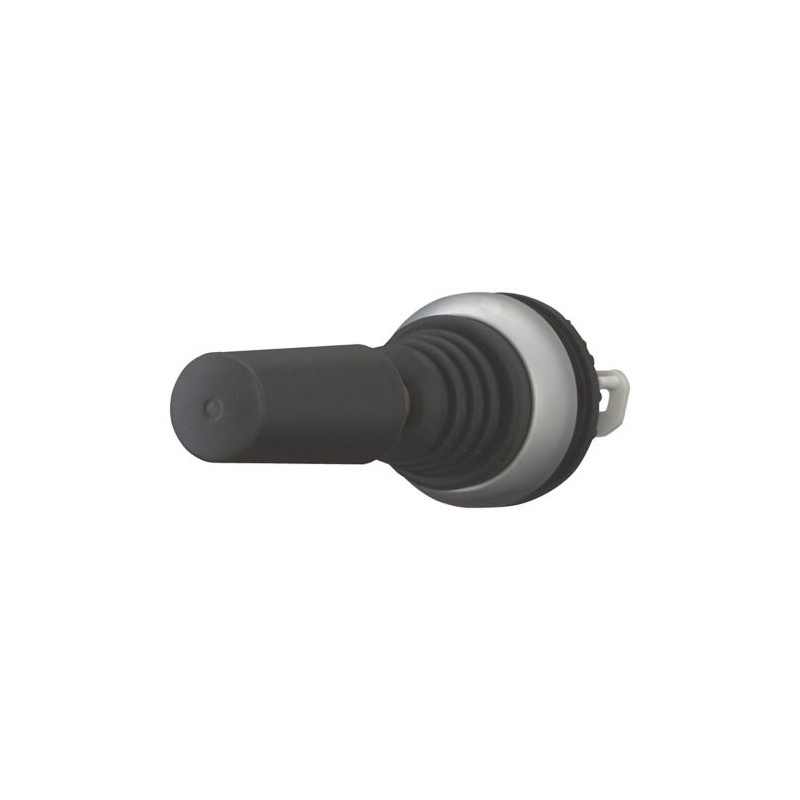

M22-WJS2H-2P 178565 EATON ELECTRIC Joystick 2 positions horizontal 2 operating points metal shaft View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

M22-WJS2H-2P 178565 EATON ELECTRIC Joystick 2 positions horizontal 2 operating points metal shaft

M22-WJS2H-2P

178565

Y7-178565

EATON-MOELLER

Joystick; 2 positions; horizontal; 2 operating points; metal shaft

M22-WJS2H-2P

Eaton Moeller® series M22 Joystick, with 2 operating points per operating direction, with metal shaft, 2 positions, Bezel: titanium, momentary, Horizontal

More details


Low-voltage industrial components > Control switch, Joystick

Auxiliary Control and Signalling Elements

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $81.76
Unit price: $81.76

Quantity Price
1+$81.76
2+$69.73
3+$64.84
4+$63.94
5+$63.94
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series M22 Joystick
Catalog Number
178565
Model Code
M22-WJS2H-2P
EAN
4015081738946
Product Length/Depth
100 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.028 kg
Certifications
VDE 0660
CE
CSA-C22.2 No. 14-13
IEC/EN 60947-5
UL File No.: E29184
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NKCR
UL
CSA
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
UL 508
Catalog Notes
These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P.

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
M22-WJS2H-2P M22-WJS2H-2P 178565 EN_289241.pdf 3 Mbytes M22-WJS2H-2P M22-WJS2H-2P 178565 EN_289241.pdf
