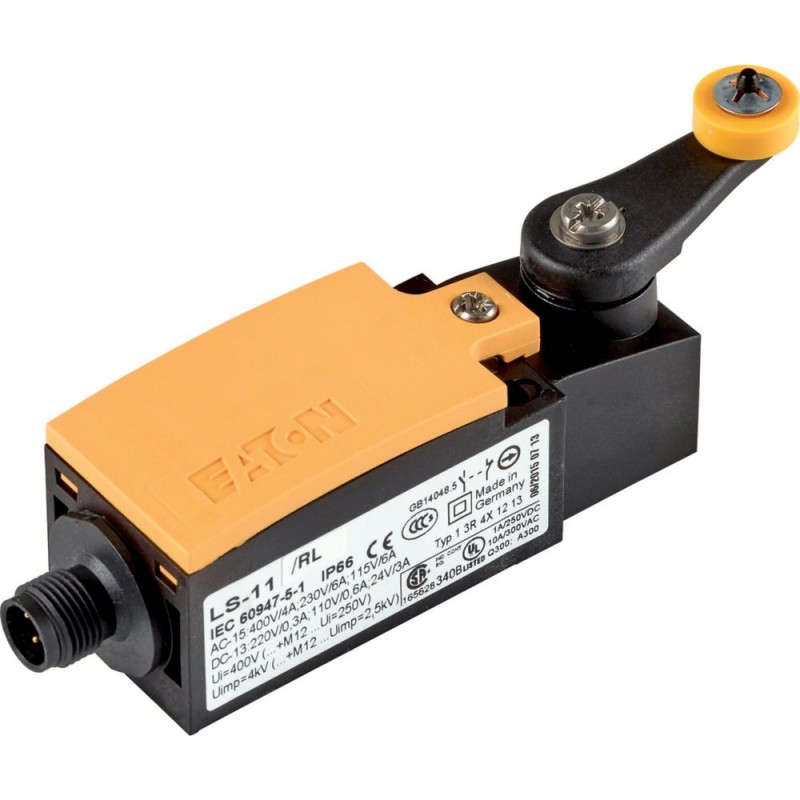

LS-11S/RL-M12A 178142 EATON ELECTRIC Position switch Insulation 1 NO + 1 NC abrupt Break in Connection M12A ..
LS-11S/RL-M12A
178142
EATON-MOELLER
Position switch; Insulation; 1 NO + 1 NC; abrupt Break in; Connection M12A; Lever rotary
LS-11S/RL-M12A
Position switch, Rotary lever, Complete device, 1 N/O, 1 NC, Snap-action contact - Yes, Cage Clamp, Yellow, Insulated material, -25 - +70 °C, with M12 connector, EN 50047 Form A
Sensors > Drive head for position switches/hinge switches
Position Switches
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Position switch, Rotary lever, Complete device, 1 N/O, 1 NC, Snap-action contact - Yes, Cage Clamp, Yellow, Insulated material, -25 - +70 °C, with M12 connector, EN 50047 Form A
IEC EN 60947-5-1, high degree of protection IP66, world-market device, modular system, Also for use in safety circuits, by positive operation and positive opening contacts. Easy mounting technology, Operating heads can be attached in any 4 directions and snapped-on simple, quick and safely using the bayonet fitting. They are equipped with Cage Clamp or screw terminals and are available with metal or insulated enclosures., suitable for use with electronic devices to IEC/EN 61131-2, M12A connection
General specifications
Product name
Eaton Moeller® series LS Position switch
Part no.
LS-11S/RL-M12A
EAN
4015081734658
Product Length/Depth
33.5 millimetre
Product height
125 millimetre
Product width
31 millimetre
Product weight
0.074 kilogram
Certifications
IEC/EN 60947
Product Tradename
LS
Product Type
Position switch
Product Sub Type
None
Catalog Notes
Cage-Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden, Germany
Contacts with safety function, by positive opening to IEC/EN 60947-5-1
Contacts with safety function, by positive opening to IEC/EN 60947-5-1
Features & Functions
Design
EN 50047 Form A
Enclosure color
Yellow Cover
Enclosure material
Insulated material
Features
Positive opening
Snap-action contact
Snap-action contact
General information
Accessories
M12 connector included.
Connection type
Cage Clamp
Degree of protection
IP66
Lifespan, mechanical
8,000,000 Operations
Operating frequency
6000 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
Rotary lever
Rated impulse withstand voltage (Uimp)
2500 V AC
Repetition accuracy
0.15 mm (Contacts/switching capacity)
Type
Position switch
Safety position switch
Safety position switch
Ambient conditions, mechanical
Mounting position
As required
Shock resistance
25 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Terminal capacity (flexible with ferrule)
1 x (0.5 - 1.5) mm²
Terminal capacity (solid)
1 x (0.5 - 2.5) mm²
Electrical rating
Rated conditional short-circuit current (Iq)
1 kA
Rated insulation voltage (Ui)
250 V
Rated operational current (Ie)
6 A at AC-15, 24 V
3 A at 24 V
1 A at AC-15, 220 V 230 V 240 V
0.3 A at 220 V
4 A at AC-15, 115 V
4 A at AC-15, 380 V 400 V 415 V
0.8 A at 110 V
3 A at 24 V
1 A at AC-15, 220 V 230 V 240 V
0.3 A at 220 V
4 A at AC-15, 115 V
4 A at AC-15, 380 V 400 V 415 V
0.8 A at 110 V
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Contacts
Supply frequency
Max. 400 Hz, Contacts
Actuator
Actuating torque of rotary drives
0.2 N·m
Actuator type
Rotary lever
Operating speed
Max. 1.5 m/s (with DIN cam, mechanical actuation)
Contacts
Control circuit reliability
1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.17 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 9.0
Sensors (EG000026) / Drive head for position switches/hinge switches (EC001483)
Electric engineering, automation, process control engineering / Sensor technology, safety-related sensor technology / Mechanical switch (sensor technology) / Drive head for position switches (ecl@ss13-27-27-06-04 [BAA083017])
Type of control element
Rotary lever
