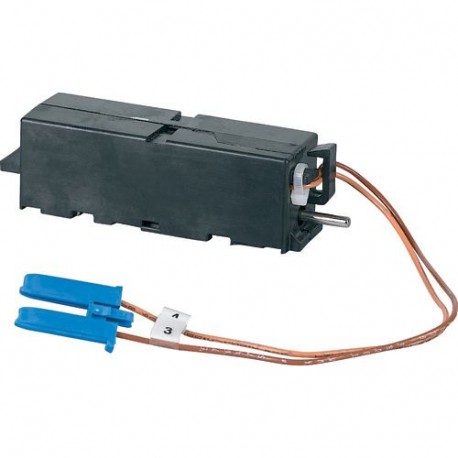

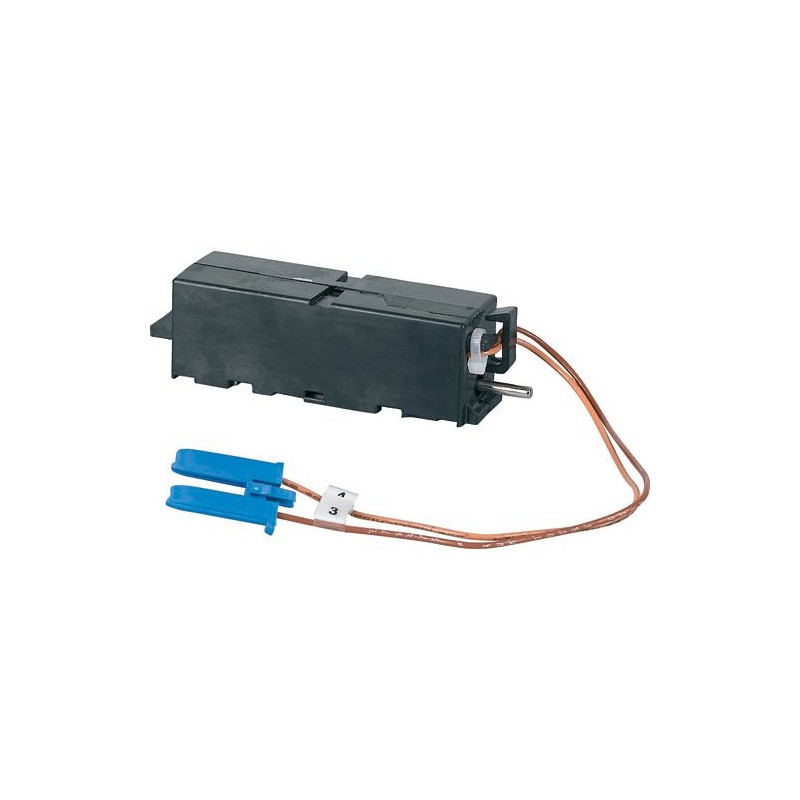

+IZMX-UVR230AD-1 184161 67C2821G32 EATON ELECTRIC Undervoltage release 220-240 VAC/DC
+IZMX-UVR230AD-1
184161
67C2821G32
EATON-MOELLER
Undervoltage release 220-240 VAC/DC. Can only be sold assembled.
+IZMX-UVR230AD-1
Undervoltage release 220-240 VAC/DC
Circuit Breakers IZM
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Undervoltage release 220-240 VAC/DC
Accessories, Undervoltage release, Cannot be combined with a second shunt release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 208 - 240 V AC 50/60 Hz, 208 - 250 V DC V, Operating range x US 0,85 - 1,1 Factor, max. holding current In 0.028 A, max. pick-up current (35ms) In 4.27 A, max. continuous power AC/DC 5 VA/W, max. pull-in power (35ms) AC/DC 910 VA/W, Circuit-breaker total switching time @ US=100% 37 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
General specifications
Product name
Eaton Moeller series IZMX/INX undervoltage release
Part no.
+IZMX-UVR230AD-1
EAN
4015081796724
Product Length/Depth
150 millimetre
Product height
100 millimetre
Product width
100 millimetre
Product weight
0.091 kilogram
Compliances
RoHS conform
Product Tradename
IZMX/INX
Product Type
Accessories
Product Sub Type
Undervoltage release
Delivery program
Type
Accessory
Special features
Cannot be combined with a second shunt release.
Retrofitting kit
Slot on the right on the adapter plate.
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Retrofitting kit
Slot on the right on the adapter plate.
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Suitable for
Power circuit breaker
Off-load switch
Off-load switch
Used with
IZMX16..., IZMX40...
INX16..., INX40...
INX16..., INX40...
Technical Data - Electrical
Voltage type
AC/DC
Control voltage operating range
208 - 250 V DC
208 - 240 V AC (50/60 Hz)
0.85 - 1.1 x Us
208 - 240 V AC (50/60 Hz)
0.85 - 1.1 x Us
Rated control supply voltage (Us) at AC, 50 Hz - min
208 V
Rated control supply voltage (Us) at AC, 50 Hz - max
240 V
Rated control supply voltage (Us) at AC, 60 Hz - min
208 V
Rated control supply voltage (Us) at AC, 60 Hz - max
240 V
Rated control supply voltage (Us) at DC - min
220 V
Rated control supply voltage (Us) at DC - max
250 V
Current rating - max
0.028 A (maximum holding current)
Rated operational current
0.028 A (maximum holding current)
Power consumption
5 VA/W AC/DC
Pick-up power consumption at 35 ms - max
910 VA/W
Circuit breaker total switching time
50 ms (Us = 100%) (IZMX16…, INX16…)
40 ms (Us = 100%) (IZMX40…, INX40…)
40 ms (Us = 100%) (IZMX40…, INX40…)
Electric connection type
Flat plug-in connection
Technical Data - Mechanical
Number of actuation per minute - max
3
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Accessory/spare part type
Remote switching
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| +IZMX-UVR230AD-1 67C2821G32 184161 EN_184161.pdf | 107 Kbytes |
|
