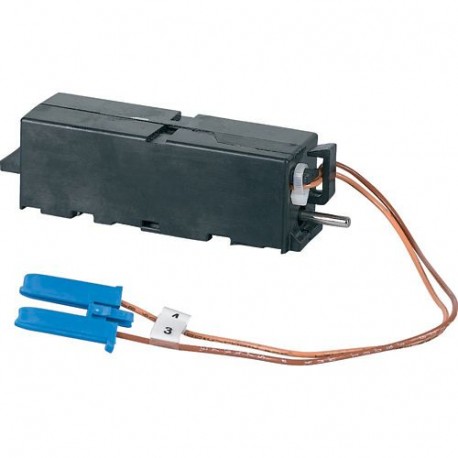

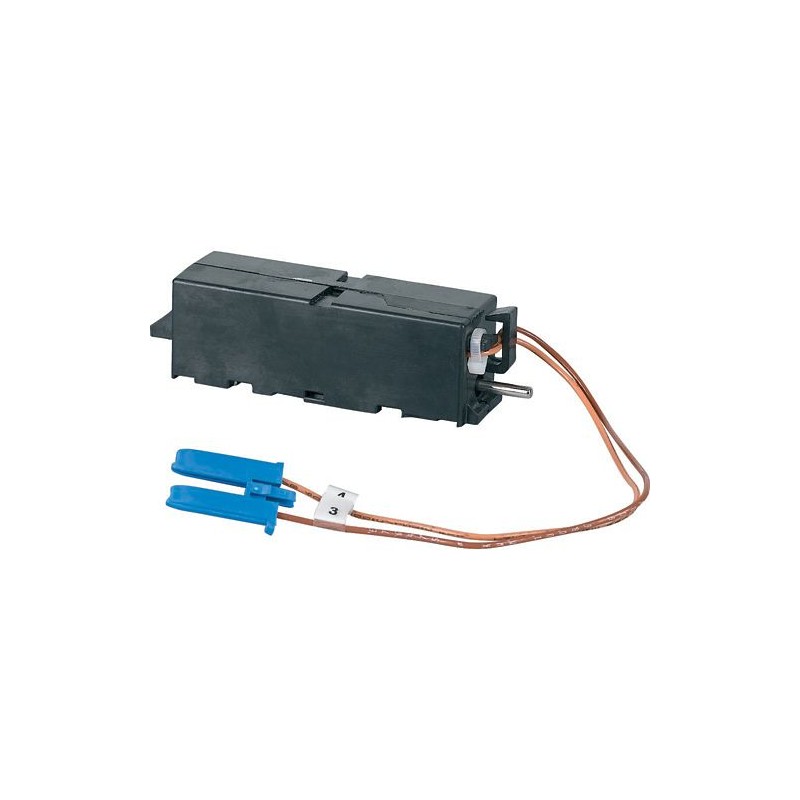

IZMX-UVR230AD-1 184162 Y7-184162 EATON ELECTRIC Undervoltage release 220-240 VAC/DC
IZMX-UVR230AD-1
184162
Y7-184162
EATON-MOELLER
Undervoltage release 220-240 VAC/DC
IZMX-UVR230AD-1
Eaton Moeller series IZMX/INX - ACB. Undervoltage release 220-240 VAC/DC, 1
Accessories, Undervoltage release, Cannot be combined with a second shunt release., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 208 - 240 V AC 50/60 Hz, 208 - 250 V DC V, Operating range x US 0,85 - 1,1 Factor, max. holding current In 0.028 A, max. pick-up current (35ms) In 4.27 A, max. continuous power AC/DC 5 VA/W, max. pull-in power (35ms) AC/DC 910 VA/W, Circuit-breaker total switching time @ US=100% 37 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
Low-voltage industrial components > Under voltage coil
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
208 - 240 V AC (50/60 Hz)
208 - 250 V DC
40 ms (Us = 100%) (IZMX40…, INX40…)
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Additional information
Off-load switch
Overload relay
Motor safety switch
IZMX16..., IZMX40...
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 208 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 208 V |
| Rated control supply voltage DC (EF003980) | 220 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Delayed (EF001541) | No |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for motor safety switch (EF005826) | Yes |
| Suitable for overload relay (EF001545) | Yes |
Datasheet - PDF
