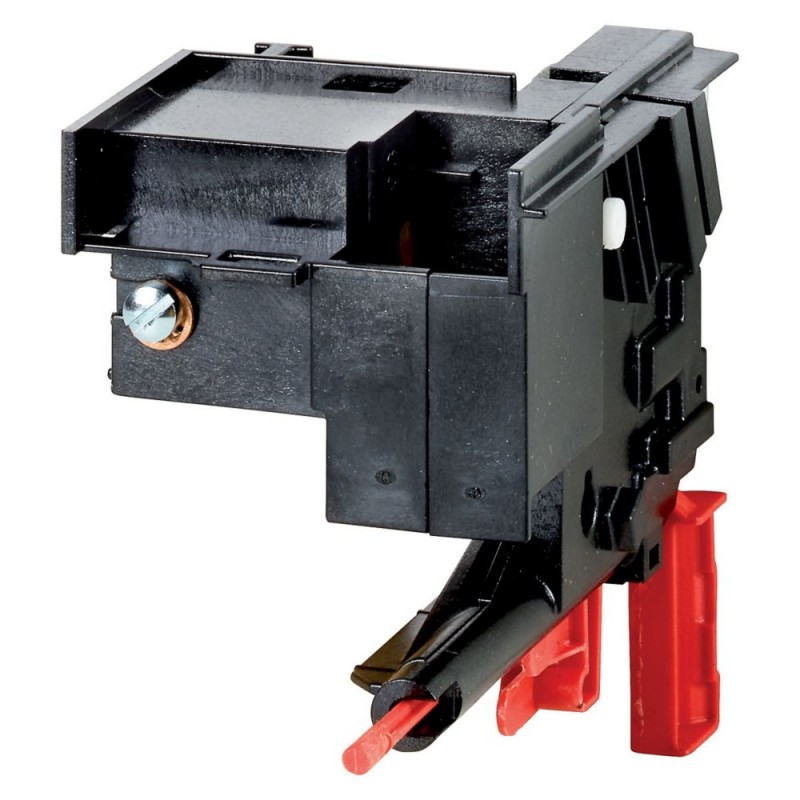

+IZMX-RR24DC-40-1 184122 68D2806G53 EATON ELECTRIC 184122 +IZMX-RR24DC-40-1. Can only be sold assembled.
+IZMX-RR24DC-40-1
184122
68D2806G53
EATON-MOELLER
184122 +IZMX-RR24DC-40-1. Can only be sold assembled.
+IZMX-RR24DC-40-1
Reset remote, 24VDC
Accessories, Remote reset, The circuit-breaker is equipped with a mechanical trip indicator (red pin)., After the remote reset coil is electrically actuated, the reclosing lockout can be reset., Cannot be combined with remote reset., Rated control voltage Us 24 V DC V, For use with IZMX40…W IZMX40…F
Low-voltage industrial components > Shunt release (for power circuit breaker)
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲Delivery program
After the remote reset coil is electrically actuated, the reclosing lockout can be reset.
Cannot be combined with remote reset.
IZMX40…F
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Initial value of the undelayed short-circuit release - setting range (EF008187) | 0 A |
| End value adjustment range undelayed short-circuit release (EF008188) | 0 A |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for motor safety switch (EF005826) | No |
| Suitable for overload relay (EF001545) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| +IZMX-RR24DC-40-1 68D2806G53 184122 EN_184122.pdf | 185 Kbytes |
|
