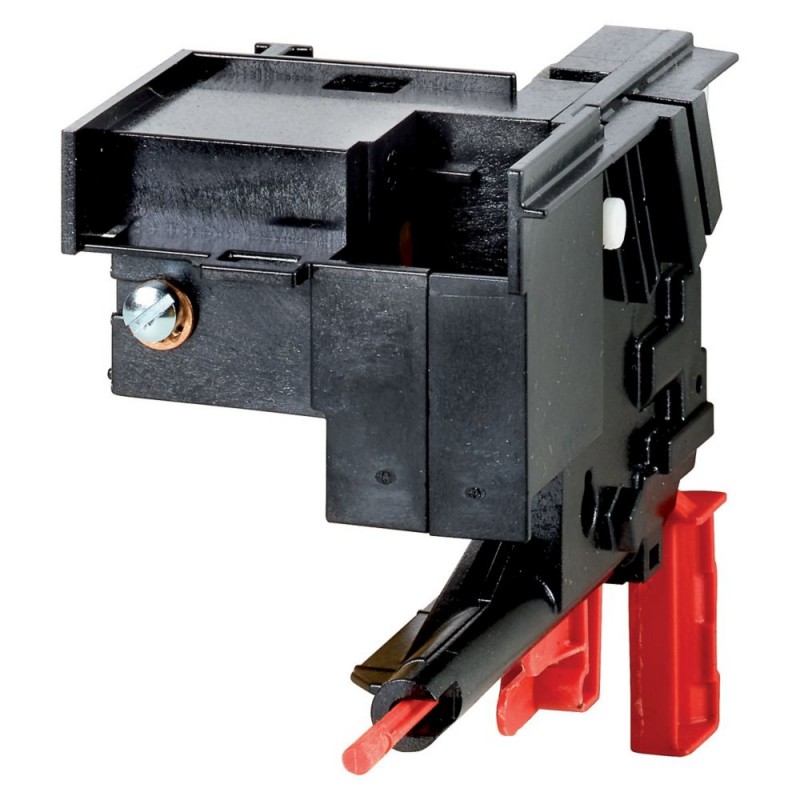

IZMX-RR24DC-40-1 184125 68D2806G63 EATON ELECTRIC 184125 IZMX-RR24DC-40-1
IZMX-RR24DC-40-1
184125
68D2806G63
EATON-MOELLER
184125 IZMX-RR24DC-40-1
IZMX-RR24DC-40-1
Reset remote, 24VDC
Circuit Breakers IZM
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲EL-Nummer (Norway)
0004398488
Reset remote, 24VDC
Accessories, Remote reset, The circuit-breaker is equipped with a mechanical trip indicator (red pin)., After the remote reset coil is electrically actuated, the reclosing lockout can be reset., Cannot be combined with remote reset., Rated control voltage Us 24 V DC V, For use with IZMX40…W IZMX40…F
Delivery program
Product range
Accessories
Accessories
Trip indication / Reset options
Accessories
Remote reset
The circuit-breaker is equipped with a mechanical trip indicator (red pin).
After the remote reset coil is electrically actuated, the reclosing lockout can be reset.
Cannot be combined with remote reset.
After the remote reset coil is electrically actuated, the reclosing lockout can be reset.
Cannot be combined with remote reset.
Rated control voltage [Us]
24 V DC V
For use with
IZMX40…W
IZMX40…F
IZMX40…F
Instructions
The retrofit kit includes the required SEC control cable terminals.
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Shunt release (for power circuit breaker) (EC001023)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Full load current trip ([email protected] [AKF016013])
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
24 - 24 V
Voltage type for actuating
DC
Initial value of the undelayed short-circuit release - setting range
0 A
End value adjustment range undelayed short-circuit release
0 A
Type of electric connection
Flat plug-in connection
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
No
Suitable for overload relay
No
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| IZMX-RR24DC-40-1 68D2806G63 184125 EN_184125.pdf | 186 Kbytes |
|
