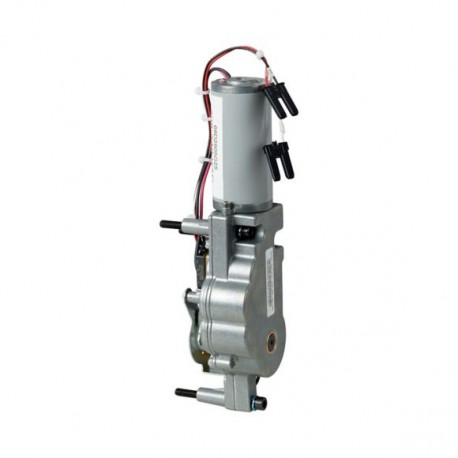

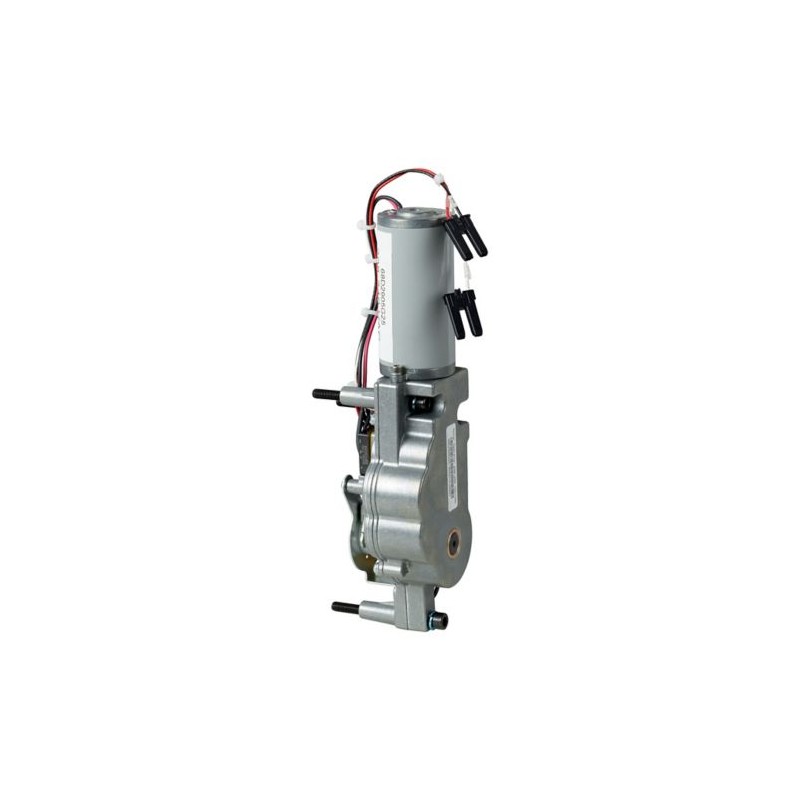

+IZMX-M40-60DC-1 184259 Y7-184259 EATON ELECTRIC Motor operator 60 VDC. Can only be sold assembled. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

+IZMX-M40-60DC-1 184259 Y7-184259 EATON ELECTRIC Motor operator 60 VDC. Can only be sold assembled.

+IZMX-M40-60DC-1

184259

Y7-184259

EATON-MOELLER

Motor operator 60 VDC. Can only be sold assembled.

+IZMX-M40-60DC-1

Motor operator 60 VDC

More details


Circuit Breakers IZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Go to successor article: IZMX-M40-60DC-1 184260

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Motor operator 60 VDC
Accessories, Motor operator, The motor automatically tensions the spring force storage mechanism for remote or local actuation., Maximum operating frequency Actuations/minute 3, Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 60 V DC V, Operating range x US 0,85 - 1,1 Factor, max. Betriebsstrom In 3 A, max. Anlaufstrom (35ms) In 13.5 A, max. Leistung AC/DC 225 VA/W, max. Anlaufleistung (35ms) AC/DC 3 VA/W, For use with IZMX40…, INX40…

General specifications
Product name
Eaton Moeller series IZMX/INX motor operator
Part no.
+IZMX-M40-60DC-1
EAN
4015081796953
Product Length/Depth
200 millimetre
Product height
100 millimetre
Product width
150 millimetre
Product weight
1.25 kilogram
Compliances
RoHS conform
Product Tradename
IZMX/INX
Product Type
Accessories
Product Sub Type
Motor operator
Delivery program
Type
Accessory
Special features
Signalling switch for “Spring-operated stored energy mechanism tensioned” message is included as standard.
Switching frequency = 60/h
The motor automatically tensions the spring force storage mechanism for remote or local actuation.
Used with
INX40…
IZMX40...
Technical Data - Electrical
Voltage type
DC
Control voltage operating range
0.85 - 1.1 x Us
60 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
60 V
Rated control supply voltage (Us) at DC - max
60 V
Rated operational current
3 A DC
Starting current rating
12 A DC
Power consumption
175 W DC
Necessary time for charging spring-operated stored energy mechanism at 1 x Us
6 s DC
Technical Data - Mechanical
Number of actuation per minute - max
3
Switch drive type
Motor drive
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Accessory/spare part type
Remote switching

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
+IZMX-M40-60DC-1 Y7-184259 184259 EN_184259.pdf 104 Kbytes +IZMX-M40-60DC-1 Y7-184259 184259 EN_184259.pdf
