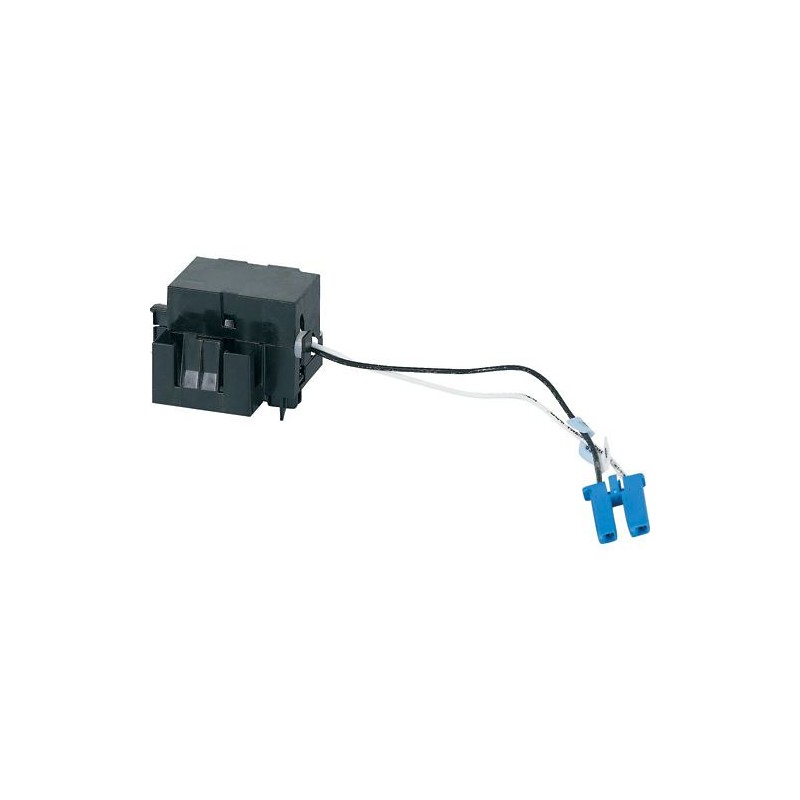

+IZMX-SR60DC-1 184284 67C2822G55 EATON ELECTRIC Closing electromagnet 60 VDC. Can only be sold assembled.
+IZMX-SR60DC-1
184284
Y7-184284
EATON-MOELLER
Closing electromagnet 60 VDC. Can only be sold assembled.
+IZMX-SR60DC-1
Closing release 60 VDC
Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 60 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 7.84 A, max. pull-in power (35ms) AC/DC 540 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
Low-voltage industrial components > Shunt release (for power circuit breaker)
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
60 V DC
30 ms (Us = 100%) (IZMX16…, INX16…)
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Additional information
Off-load switch
IZMX16..., IZMX40...
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 60 V |
| Voltage type for actuating (EF008242) | DC |
| Initial value of the undelayed short-circuit release - setting range (EF008187) | 0 A |
| End value adjustment range undelayed short-circuit release (EF008188) | 0 A |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for motor safety switch (EF005826) | No |
| Suitable for overload relay (EF001545) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| +IZMX-SR60DC-1 Y7-184284 184284 EN_184104.pdf | 8 Mbytes |
|
