View larger

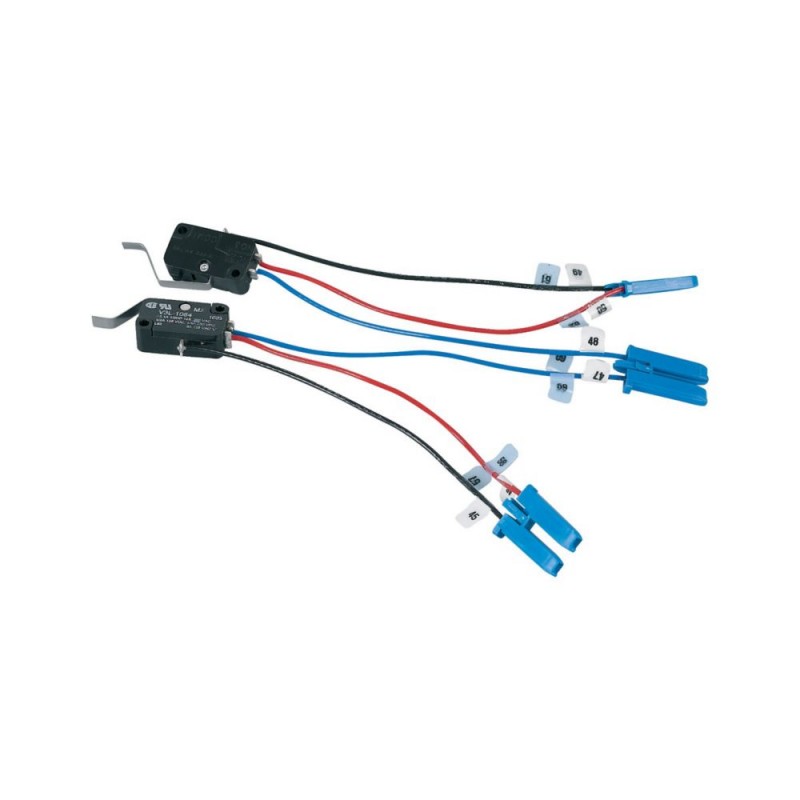

+IZMX-AS66-1 184169 67C2823G68 EATON ELECTRIC Auxiliary contacts, 6-switched
+IZMX-AS66-1
184169
Y7-184169
EATON-MOELLER
Auxiliary contacts, 6-switched. Can only be sold assembled.
+IZMX-AS66-1
Signalling switch ON-OFF, 6W
Circuit Breakers IZM
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Signalling switch ON-OFF, 6W
Accessories, Standard auxiliary switch for On-Off signaling, The basic device already contains two changeover contacts., 6 additionally integrated changeover contacts are included., For use with IZMX40..., INX40..., 6 changeover contacts
General specifications
Product name
Eaton Moeller series IZMX/INX auxiliary contact block
Part no.
+IZMX-AS66-1
EAN
4015081796762
Product Length/Depth
100 millimetre
Product height
100 millimetre
Product width
100 millimetre
Product weight
0.204 kilogram
Compliances
RoHS conform
Product Tradename
IZMX/INX
Product Type
Accessories
Product Sub Type
Auxiliary contact block
Delivery program
Type
Accessory
Model
Integrable
Special features
6 changeover contacts
The basic device already contains two changeover contacts.
6 additionally integrated changeover contacts are included.
The basic device already contains two changeover contacts.
6 additionally integrated changeover contacts are included.
Used with
IZMX40...
INX40...
INX40...
Technical Data - Electrical
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
10 A
Rated breaking capacity (inductive load)
10 A (250 V AC)
0.5 A (125 V DC)
0.25 A (250 V DC)
0.5 A (125 V DC)
0.25 A (250 V DC)
Electric connection type
Flat plug-in connection
Technical Data - Mechanical
Mounting Method
Other
Number of contacts (change-over contacts)
6
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Accessory/spare part type
Auxiliary contact
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| +IZMX-AS66-1 67C2823G68 184169 EN_184169.pdf | 103 Kbytes |
|
