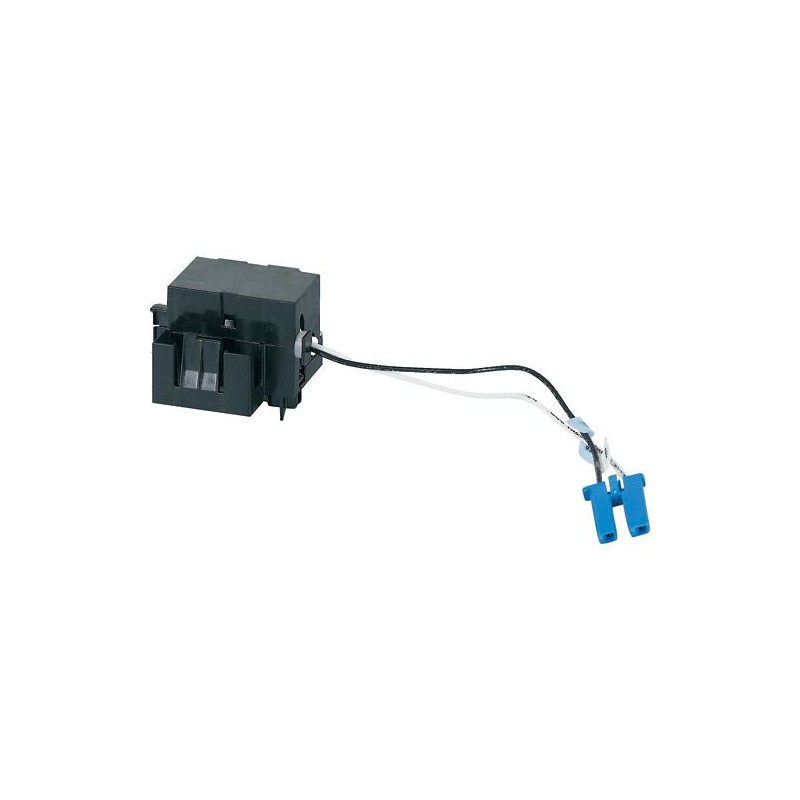

+IZMX-SR48DC-1 184282 67C2822G54 EATON ELECTRIC Closing electromagnet 48 VDC
+IZMX-SR48DC-1
184282
67C2822G54
EATON-MOELLER
Closing electromagnet 48 VDC. Can only be sold assembled.
+IZMX-SR48DC-1
Closing release 48 VDC
Circuit Breakers IZM
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Closing release 48 VDC
Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 48 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 10 A, max. pull-in power (35ms) AC/DC 530 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
General specifications
Product name
Eaton Moeller series IZMX/INX closing release
Part no.
+IZMX-SR48DC-1
EAN
4015081797097
Product Length/Depth
100 millimetre
Product height
100 millimetre
Product width
100 millimetre
Product weight
0.068 kilogram
Compliances
RoHS conform
Product Tradename
IZMX/INX
Product Type
Accessories
Product Sub Type
Closing release
Delivery program
Type
Accessory
Special features
Can be combined with a shunt release and an undervoltage release.
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Suitable for
Off-load switch
Power circuit breaker
Power circuit breaker
Used with
IZMX16..., IZMX40...
INX16..., INX40...
INX16..., INX40...
Technical Data - Electrical
Voltage type
DC
Control voltage operating range
0.85 - 1.1 x Us
48 V DC
48 V DC
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
48 V
Rated control supply voltage (Us) at DC - max
48 V
Adjustment range undelayed short-circuit release (end value) - max
0 A
Pick-up power consumption at 35 ms - max
530 VA/W
Circuit breaker total switching time
35 ms (Us = 100%) (IZMX40…, INX40…)
30 ms (Us = 100%) (IZMX16…, INX16…)
30 ms (Us = 100%) (IZMX16…, INX16…)
Initial value of the undelayed short-circuit release - min
0 A
Electric connection type
Flat plug-in connection
Technical Data - Mechanical
Number of actuation per minute - max
3
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Accessory/spare part type
Remote switching
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| +IZMX-SR48DC-1 67C2822G54 184282 EN_184282.pdf | 105 Kbytes |
|
