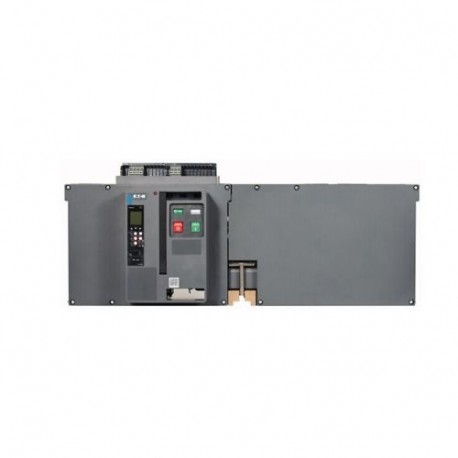

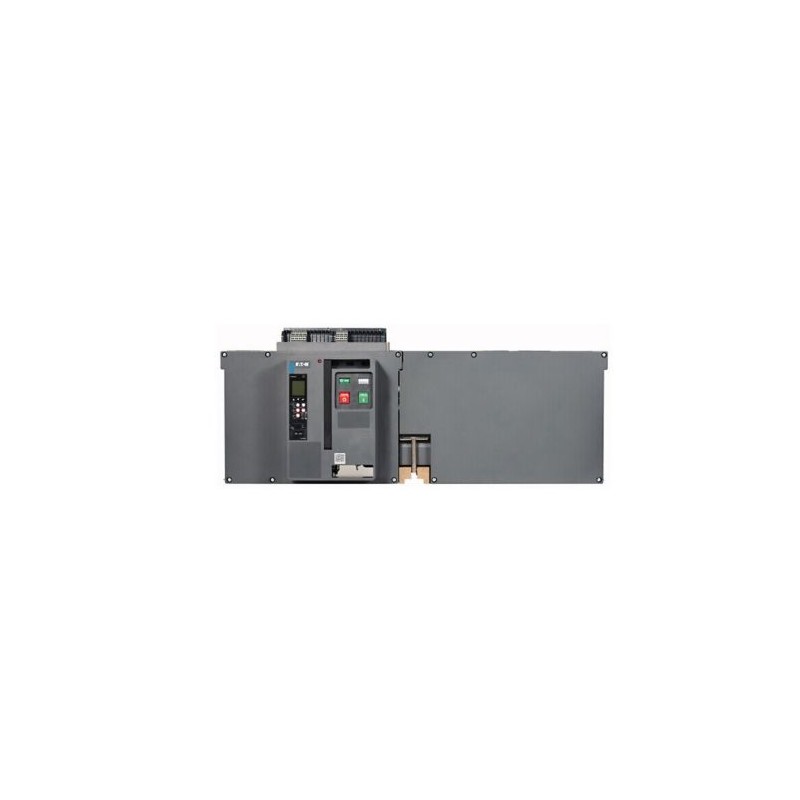

IZM63N4-V63F-1 303664 Y7-303664 EATON ELECTRIC Automatic int. IZM63N PXR20, 4P, 6300A, fixed mount
IZM63N4-V63F-1
303664
Y7-303664
EATON-MOELLER
Automatic int. IZM63N PXR20, 4P, 6300A, fixed mount
Circuit-breaker, 4p, 6300 A, fixed
Circuit-breaker IZM63 ( Air circuit-breakers/switch-disconnectors), 4 pole, Current Range: 4000 to 6300 A, Rated current = rated uninterrupted current( In = Iu): 6300 A, Rated ultimate short-circuit breaking capacity up to 440V/690V 42/42( Icu): 85 kA, Rated service short-circuit breaking capacity up to 440V/690V 42/42( Ics): 85 kA, Overload release, min.( Ir): 2520 A, Overload release, max.( Ir): 6300 A, Installation type: Fixed, Standard/Approval: IEC, Protective function: Selective operation
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Delivery program
[Ii= Inx …]
[Isd= Irx …]Design verification as per IEC/EN 61439
| Feature Name | Feature Value |
|---|---|
| Overload release current setting (EF002336) | 2520 A |
| Integrated earth fault protection (EF007296) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Complete device with protection unit (EF008906) | No |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | No |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IZM63N4-V63F-1 Y7-303664 303664 EN_303664.pdf | 142 Kbytes |
|
