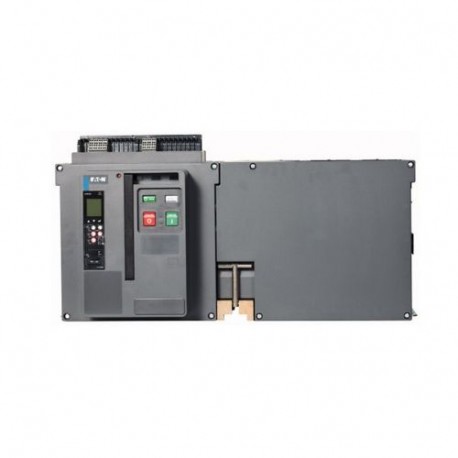

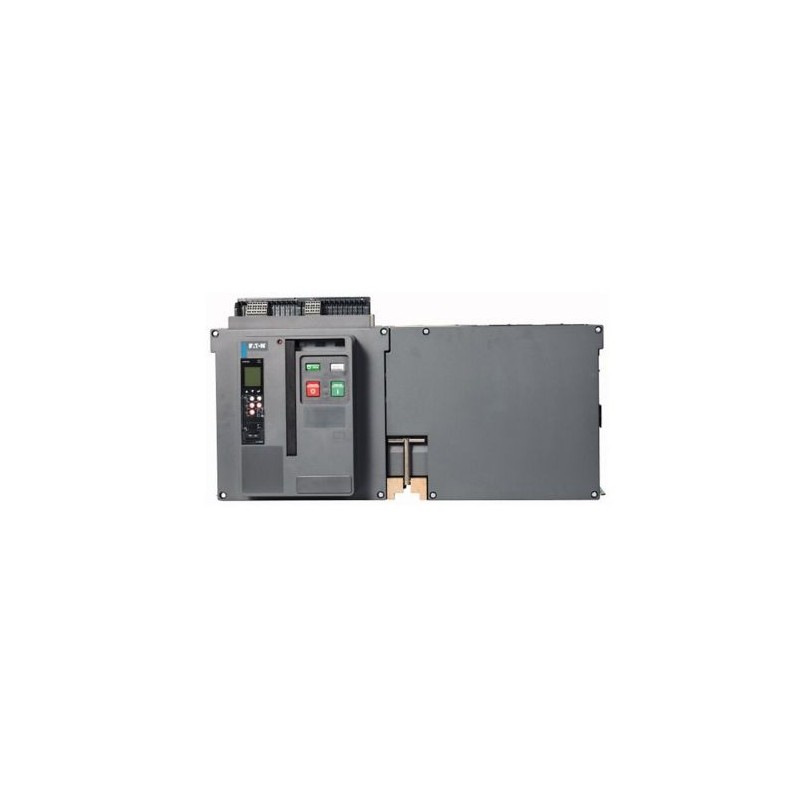

IZM63N3-V63F-1 303645 EATON ELECTRIC Automatic int. IZM63N PXR20, 3P, 6300A, fixed mount
IZM63N3-V63F-1
303645
EATON-MOELLER
Automatic int. IZM63N PXR20, 3P, 6300A, fixed mount
Circuit-breaker, 3p, 6300 A, fixed
Circuit Breakers IZM
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Circuit-breaker, 3p, 6300 A, fixed
Circuit-breaker IZM63 ( Air circuit-breakers/switch-disconnectors), 3 pole, Current Range: 4000 to 6300 A, Rated current = rated uninterrupted current( In = Iu): 6300 A, Rated ultimate short-circuit breaking capacity up to 440V/690V 42/42( Icu): 85 kA, Rated service short-circuit breaking capacity up to 440V/690V 42/42( Ics): 85 kA, Overload release, min.( Ir): 2520 A, Overload release, max.( Ir): 6300 A, Installation type: Fixed, Standard/Approval: IEC, Protective function: Selective operation
General specifications
Product name
Eaton Moeller series IZMX/INX circuit-breaker
Part no.
IZM63N3-V63F-1
EAN
9010238191341
Product Length/Depth
372 millimetre
Product height
426 millimetre
Product width
887 millimetre
Product weight
125.2 kilogram
Compliances
IEC
RoHS conform
RoHS conform
Product Tradename
IZMX/INX
Product Type
Circuit-breaker
Product Sub Type
None
Delivery program
Type
Air circuit breakers/switch-disconnector
Open circuit breaker
Open circuit breaker
Number of poles
Three-pole
Amperage Rating
6300 A
Frame
IZM63
Technical Data - Electrical
Overload release current setting - min
2520 A
Overload release current setting - max
6300 A
Technical Data - Mechanical
Mounting Method
Fixed
Degree of protection
IP20
IP41 with door sealing frame
IP54 with protective cover
IP41 with door sealing frame
IP54 with protective cover
Protection
Selective operation
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| IZM63N3-V63F-1 303645 EN_303645.pdf | 149 Kbytes |
|
