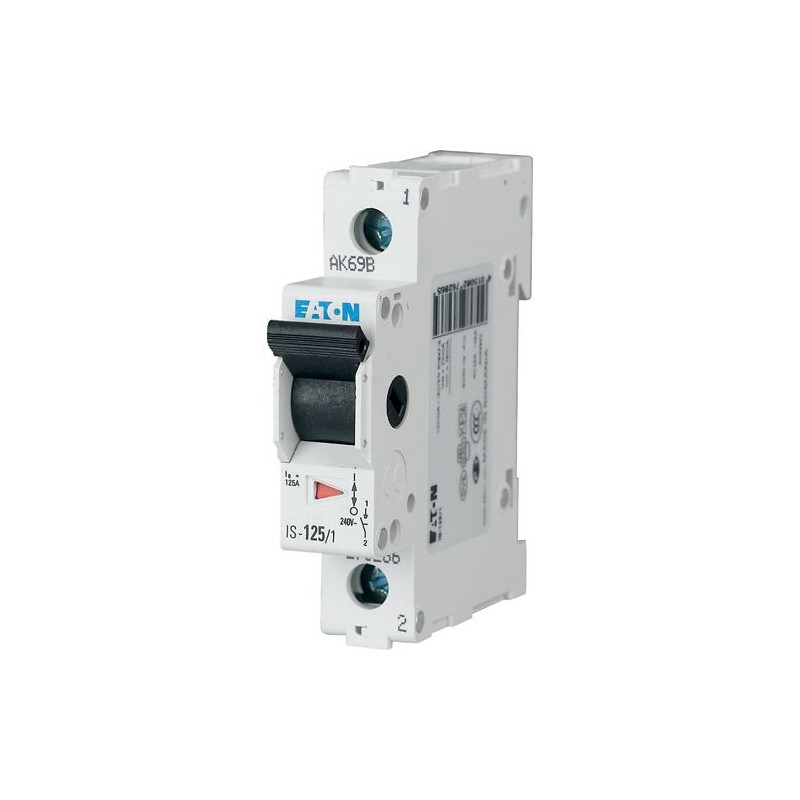

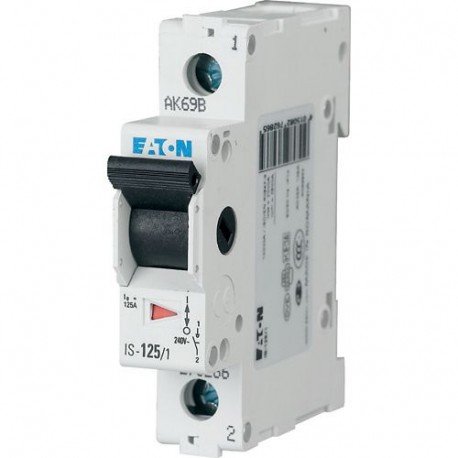

IS-25/1 276262 Y7-276262 EATON ELECTRIC Switch-Disconnector, 1P, 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

IS-25/1 276262 Y7-276262 EATON ELECTRIC Switch-Disconnector, 1P, 25A

IS-25/1

276262

Y7-276262

EATON-MOELLER

Switch-Disconnector, 1P, 25A

IS-25/1

Main load disconnector Switch with isolation function, highly wear resistant contacts and classified for the use in rail rolling stock, 240 V, 25 A, 1P

More details


Modular Switchgear – Others and Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $19.17
Unit price: $19.17
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series IS Disconnector
Catalog Number
276262
Model Code
IS-25/1
EAN
4015082762629
Product Length/Depth
60 mm
Product Height
80 mm
Product Width
17.7 mm
Product Weight
0.1 kg
Compliances
RoHS conform
Certifications
EN45545-2
IEC 61373

Product specifications

Type
IS. Main load disconnector switch
Application
Switchgear for industrial and advanced commercial applications
Degree of protection
IP40
IP10
Terminals
Lift terminal
Equipment heat dissipation, current-dependent
0.5 W
Imprint/indication
Symbol "arrows"
Lamp socket
Other
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Built-in depth
69.5 mm
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0.8 W
Lamp power
0 W
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Amperage rating
25 A
Color calotte
Other
Switch type
Other
Rated short-time withstand current (Icw)
1 kA
Voltage type
AC
Lamp type
Other
Number of contacts (normally open contacts)
1
Rated operational current for specified heat dissipation (In)
25 A
Rated operational voltage (Ue) - max
240 V
Rated switching capacity
12.5 kA
Static heat dissipation, non-current-dependent
0 W
Voltage rating - min
240 V
Width in number of modular spacings
1
Number of poles
Single-pole

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
IS-25/1 Y7-276262 276262 EN_276262.pdf 107 Kbytes IS-25/1 Y7-276262 276262 EN_276262.pdf
