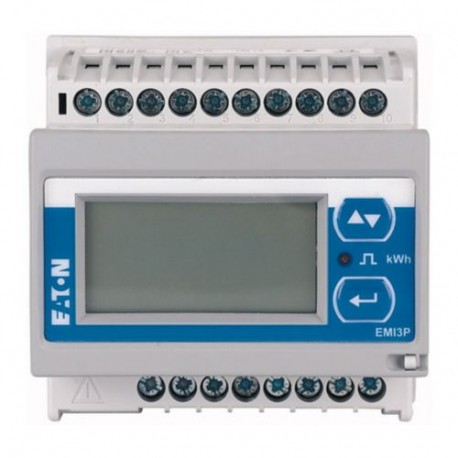

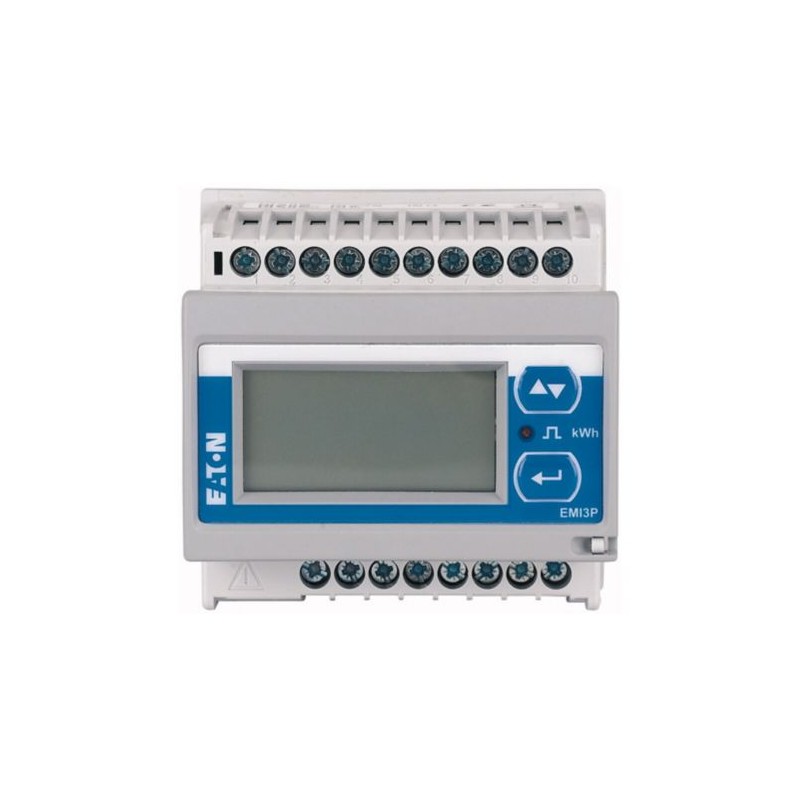

EMI3P-Y2R0 EATON ELECTRIC Measuring device, 3P, DIN/Panel, ModB, Rog
EMI3P-Y2R0
EATON-MOELLER
Measuring device, 3P, DIN/Panel, ModB, Rog
EMI3P-Y2R0
Eaton Distribution parts. Meter, 3P, DIN/Panel, ModB, Rog
Energy meter, 3-Phase, DIN-Rail and Panel mounting, Modbus RTU, Class 1 (kWh) acc. to EN62053-21, IEC and cULus (Kanada and USA) approval, for EMI3P Rogowski-coils
Meters > Kilowatt-hour meter
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
1 (NEMA)
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 0 A |
| Max. current (Imax) (EF000877) | 0 A |
| Nominal voltage (Un) N-L (EF008871) | 160 V |
| Nominal voltage (Un) L-L (EF008872) | 277 V |
| Frequency (EF000416) | 45 Hz |
| Accuracy class (EF008842) | B |
| Pole type (EF008843) | Three conductor/four conductor |
| Model (EF000010) | Measurement transformer |
| Energy type (EF007135) | Effective power and reactive power |
| Suitable for (EF000073) | Purchase/supply |
| Measurement type load profile (EF008844) | No |
| Escapement mechanism (EF008835) | No |
| Calibrated (EF008836) | No |
| Pulse output (EF008838) | Electrical |
| Pulse type (EF008839) | S0 |
| Pulse rate (EF008840) | 0.1 Imp/kWh (kvarh) |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | Front mounting |
| Width in number of modular spacings (EF002950) | 4 |
| Width (EF000008) | 71.7 mm |
| Depth (EF000049) | 64.6 mm |
| Height (EF000040) | 71.7 mm |
| Type of interface (EF006977) | Modbus |
| EEC40 signature (EF008845) | No |
| With lock code (EF008846) | Yes |
| Number of positions total (counter) (EF004442) | 7 |
| Degree of protection (IP) (EF005474) | IP40 |
| Degree of protection (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMI3P-Y2R0 EMI3P-Y2R0 EMI3P-Y2R0 EN_EMI3P-Y2R0.pdf | 109 Kbytes |
|
