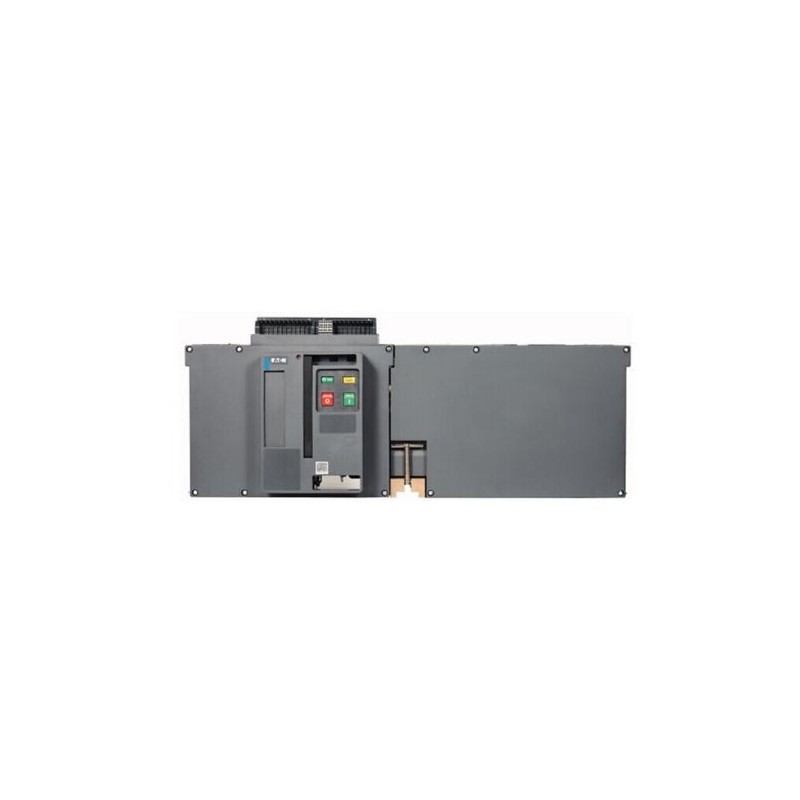

IN63H4-50F-1 303690 Y7-303690 EATON ELECTRIC Int.-Disconnector IN63H,4P,5000A,fixed
IN63H4-50F-1
303690
Y7-303690
EATON-MOELLER
Int.-Disconnector IN63H,4P,5000A,fixed
Switch-disconnector, 4p, 5000 A, fixed
Switch-disconnector, Air circuit-breakers/switch-disconnectors, Open switch-disconnectors, 5000 A, without protection, Fixed, Construction size: IN63, Standard/Approval: IEC, Number of poles: 4 pole, Degree of Protection: IP20, IP55 with protective cover, Rated current = rated uninterrupted current: In = Iu 5000 A, up to 440 V 50/60 Hz: Icm 217 kA, t = 1 s: Icw 100 kA
Low-voltage industrial components > Switch disconnector
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲RoHS conform
Open switch-disconnector
IP41 with door sealing frame
IP54 with protective cover
8000 operations (switching capacity, with maintenance)
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of poles (EF001391) | 4 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Interlockable (EF006281) | No |
| With pre-assembled cabling (EF016444) | No |
| Width (EF000008) | 1120 mm |
| Height (EF000040) | 426 mm |
| Depth (EF000049) | 372 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IN63H4-50F-1 Y7-303690 303690 EN_303690.pdf | 107 Kbytes |
|
