> EATON - MOELLER>Disconnectors and Cam Switches>EZ/S-E-TM 046995 ELECTRIC Front element, for TM switch, EZ-, key operation lock mechanism, kaba no.E
Previous Product Next Product

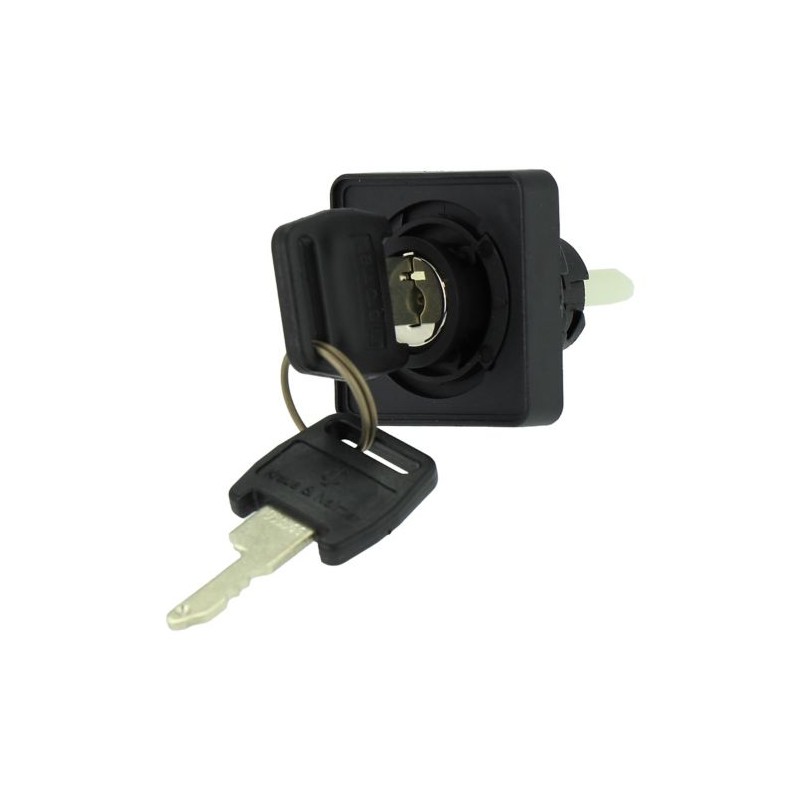

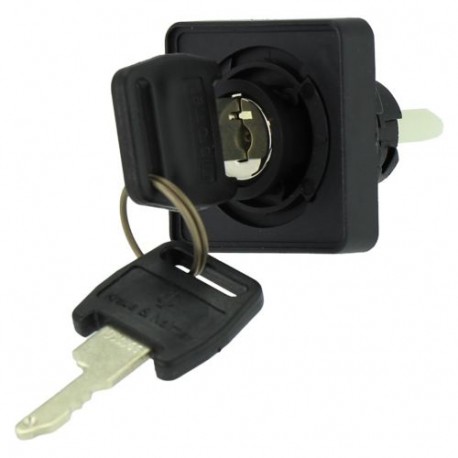

EZ/S-E-TM 046995 EATON ELECTRIC Front element, for TM switch, EZ-, key operation lock mechanism, kaba no.E View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EZ/S-E-TM 046995 EATON ELECTRIC Front element, for TM switch, EZ-, key operation lock mechanism, kaba no.E

EZ/S-E-TM

046995

EATON-MOELLER

Front element, for TM switch, EZ-, key operation lock mechanism, kaba no.E

Elementro front; For switches TM; EZ; locking Mechanism with key; KABA-No.And

More details


Low-voltage industrial components > Handle for power circuit breaker

Disconnectors and Cam Switches

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $104.62
Unit price: $104.62

Quantity Price
1+$104.62
2+$89.01
3+$82.45
4+$80.21
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Front element, for TM switch, EZ-, key operation lock mechanism, MICROMEC no.E
Front element for TM switch, Basic function: Locking arrangements, Function: Key operation lock mechanism, MICROMEC lock 90 Grad, For use with: Centre mounting (EZ)

General specifications
Product name
Eaton Moeller® series EZ Accessory Front element for TM switch
Part no.
EZ/S-E-TM
EAN
4015080469957
Product Length/Depth
20 millimetre
Product height
30 millimetre
Product width
30 millimetre
Product weight
0.027 kilogram
Compliances
CE
Product Tradename
EZ
Product Type
Accessory
Product Sub Type
Front element for TM switch
Features & Functions
Color
Black
Features
Lockable
Fitted with:
Key lock
Functions
Key operation lock mechanism
Locking facility
MICROMEC lock (90°)
General information
Degree of protection
NEMA Other
Suitable for
Switch disconnector
Type
Locking arrangements
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Handle for power circuit breaker (EC000229)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Handle for switch devices (ecl@ss13-27-37-04-14 [AKF012019])
With restart blockage
No
With key lock
Yes
Padlock locking
No
Colour
Black
Suitable for emergency stop
No
With extension shaft
No
Suitable for power circuit breaker
No
Suitable for switch disconnector
Yes
Degree of protection (NEMA)
Other

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SAFE SWITCHING EN.pdf 928 Kbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
EZ/S-E-TM 046995 EN_046995.pdf 191 Kbytes EZ/S-E-TM 046995 EN_046995.pdf
