> EATON - MOELLER>Sezionatori e interruttori a camme>EZ/S-E-TM 046995 ELECTRIC Elemento frontale, per interruttore TM-, EZ-, comando a chiave, kaba Nr.E
Prodotto precedente Prodotto successivo

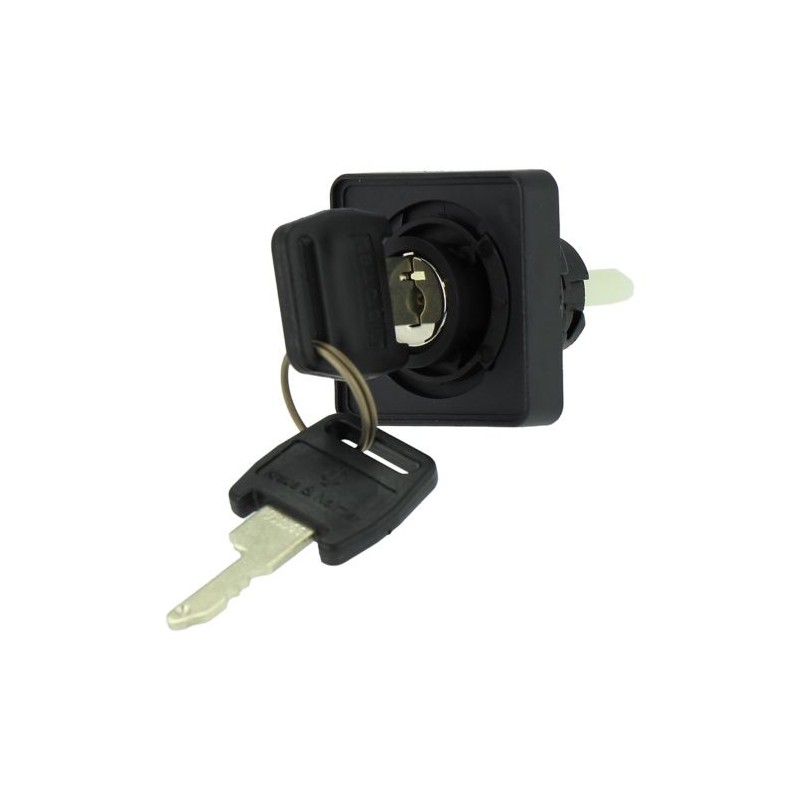

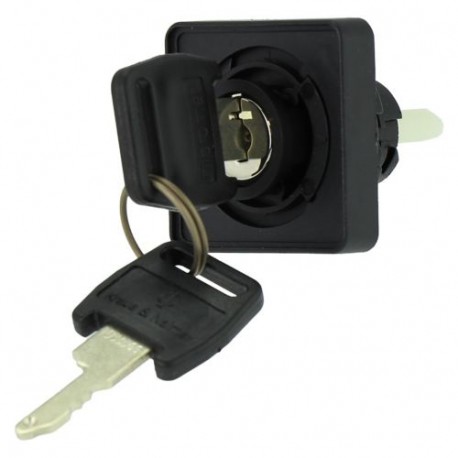

EZ/S-E-TM 046995 EATON ELECTRIC Elemento frontale, per interruttore TM-, EZ-, comando a chiave, kaba Nr.E Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

EZ/S-E-TM 046995 EATON ELECTRIC Elemento frontale, per interruttore TM-, EZ-, comando a chiave, kaba Nr.E

EZ/S-E-TM

046995

EATON-MOELLER

Elemento frontale, per interruttore TM-, EZ-, comando a chiave, kaba Nr.E

Elementro anteriore; Per gli interruttori TM; EZ; Meccanismo di chiusura con chiave; KABA-No.E

Eaton Moeller® series EZ Front element, for TM switch, EZ-, key operation lock mechanism, MICROMEC no.E EZ/S-E-TM

Maggiori dettagli


apparecchi elettrici a bassa tensione > Maniglia per interruttore di potenza

Sezionatori e interruttori a camme

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $106.04
Prezzo unitario: $106.04

Quantità Prezzo
1+$106.04
2+$90.50
3+$83.85
4+$81.31
*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series EZ Accessory Front element for TM switch
Catalog Number
046995
EAN
4015080469957
Product Length/Depth
20 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.027 kg
Compliances
CE
Model Code
EZ/S-E-TM

Specifiche del prodotto

Type
Locking arrangements
Features
Lockable
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Key lock
Color
Black
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
NEMA Other
Suitable for
Switch disconnector
Locking facility
MICROMEC lock (90°)
Functions
Key operation lock mechanism

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SAFE SWITCHING EN.pdf 928 Kbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
EZ/S-E-TM 046995 IT_046995.pdf 110 Kbytes EZ/S-E-TM 046995 IT_046995.pdf
