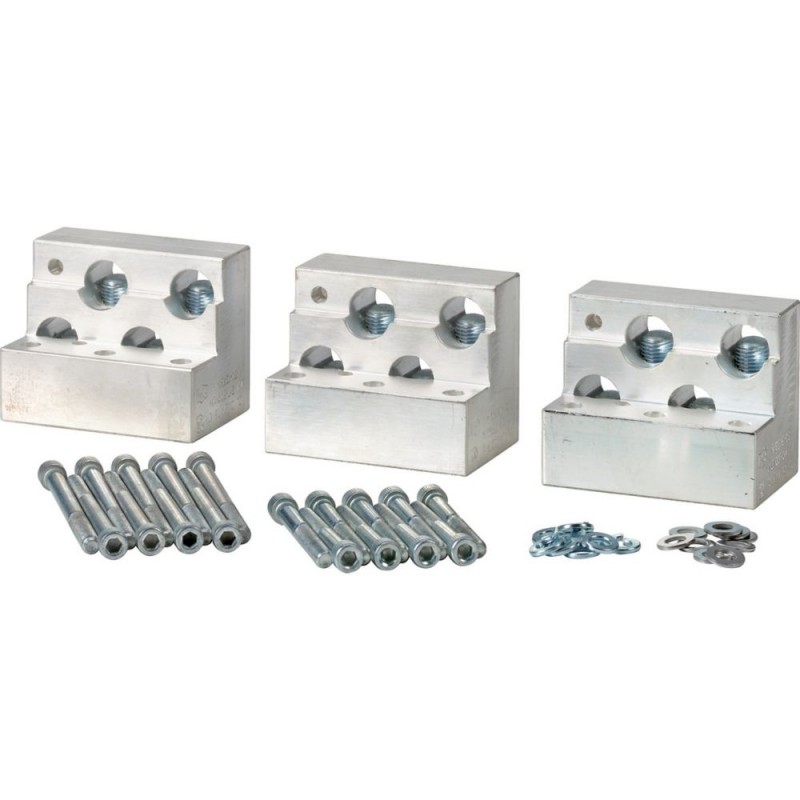

EML33 127669 Y7-127669 EATON ELECTRIC Terminal block for S801+ and S811+ soft starters View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EML33 127669 Y7-127669 EATON ELECTRIC Terminal block for S801+ and S811+ soft starters

EML33

127669

Y7-127669

EATON-MOELLER

Terminal block for S801+ and S811+ soft starters

EML33

Eaton EML Terminal block, 4 x 2/0-300 MCM, 4 x 70-150 mm², For use with: S801+, S811+, frame size V

Terminal block for S801+ and S811+ soft starters, for size S8x1+V, 4x150mm²

More details


Low-voltage industrial components > Connection vane/phase spreader

High Performance Soft Starters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $482.28
Unit price: $482.28
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton S811 Accessory Terminal block
Catalog Number
127669
Model Code
EML33
EAN
4015081250776
Product Length/Depth
190.5 mm
Product Height
101.6 mm
Product Width
114.3 mm
Product Weight
1.836 kg
Certifications
CSA File No.: LR 353
CSA-C22.2 No. 65
CSA
UL Category Control No.: NMFT
UL508
CSA Class No.: 6223-02
UL
UL File No.: E202571
Catalog Notes
1 set required for each connection side.

Climatic environmental conditions

Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 127669 Low-voltage industrial controls and switchgear (EC002019)
Feature Name Feature Value
Suitable for number of poles (EF001589) 3

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
EML33 Y7-127669 127669 EN_127669.pdf 108 Kbytes EML33 Y7-127669 127669 EN_127669.pdf
