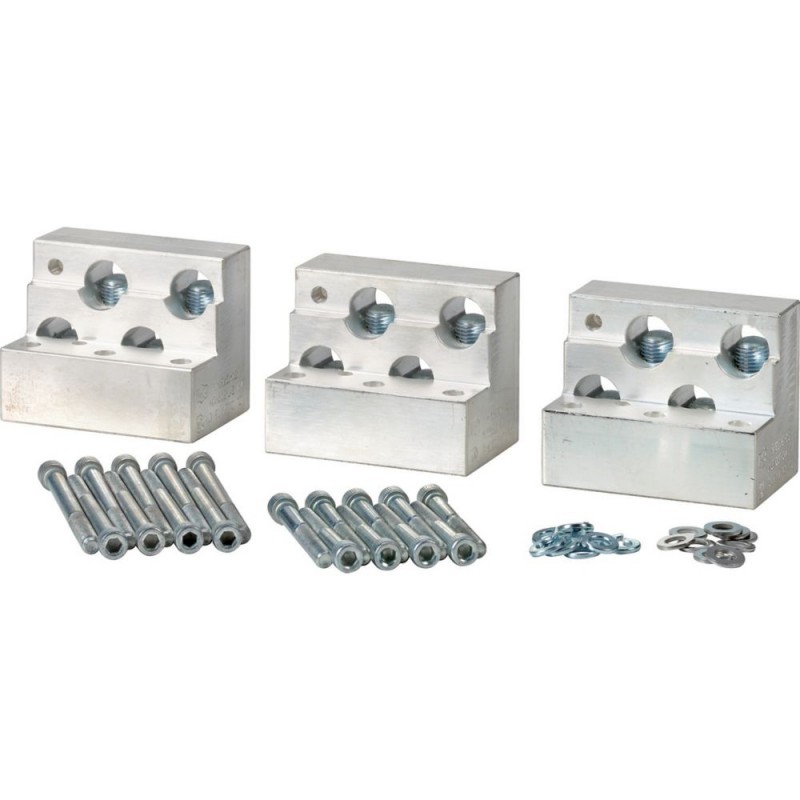

EML33 127669 EATON ELECTRIC Gruppo di morsetti 4 x 150 mm² per softstarter S8x1+ grandezza V
EML33
127669
EATON-MOELLER
Gruppo di morsetti 4 x 150 mm² per softstarter S8x1+ grandezza V
Morsettiera 4 x 70-150 mm² Per S811+ taglia V
Eaton EML Terminal block, 4 x 2/0-300 MCM, 4 x 70-150 mm², For use with: S801+, S811+, frame size V
apparecchi elettrici a bassa tensione > connettore di fase
Softstarter ad alte prestazioni
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Dettagli
▲General specifications
Product Name
Eaton S811 Accessory Terminal block
Catalog Number
127669
EAN
4015081250776
Product Length/Depth
190.5 mm
Product Height
101.6 mm
Product Width
114.3 mm
Product Weight
1.836 kg
Certifications
CSA File No.: LR 353
CSA-C22.2 No. 65
CSA
UL Category Control No.: NMFT
UL508
CSA Class No.: 6223-02
UL
UL File No.: E202571
CSA-C22.2 No. 65
CSA
UL Category Control No.: NMFT
UL508
CSA Class No.: 6223-02
UL
UL File No.: E202571
Catalog Notes
1 set required for each connection side.
Model Code
EML33
Condizioni ambientali e climatiche
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Verifica di progetto
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| EML33 EML33 127669 IT_127669.pdf | 108 Kbytes |
|
