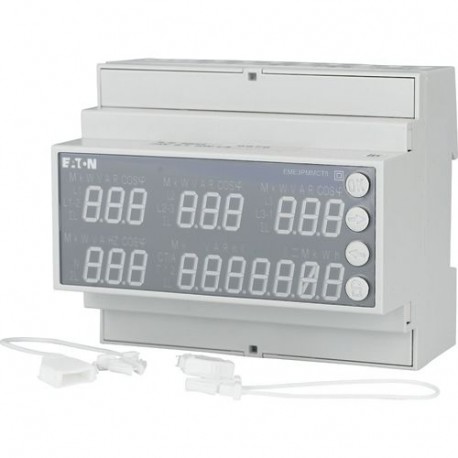

EME3PMMCT5 171631 EATON ELECTRIC Multi-/power meter, 49-51 Hz, 5 A x
EME3PMMCT5
171631
EATON-MOELLER
Multi-/power meter, 49-51 Hz, 5 A_x
Three-phase DIN rail multimeter
High-quality residual current circuit-breaker/miniature circuit-breaker with overcurrent protection independent of mains voltage; contact position display red-green; terminal rear plug protection; tri-stable slide catch—enables removal from an existing closure assembly; comprehensive accessory product range can be retrofitted; wide range of rated fault currents; rated operational currents up to 40 A; trip types B,C,D; rated switching capacity 10 kA; suitable for use in the free (on-site power and outdoor distribution board) to -25 °C; suitable for use in the free (on-site power and outdoor distribution board) to -25 °C
Meters > Kilowatt-hour meter
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Technical data ETIM 7.0
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 6 A |
| Max. current (Imax) (EF000877) | 6 A |
| Nominal voltage (Un) N-L (EF008871) | 300 V |
| Nominal voltage (Un) L-L (EF008872) | 480 V |
| Frequency (EF000416) | 50 Hz |
| Accuracy class (EF008842) | A |
| Pole type (EF008843) | Four conductor |
| Model (EF000010) | Measurement transformer |
| Energy type (EF007135) | Effective power and reactive power |
| Suitable for (EF000073) | Purchase/supply |
| Tariff type (EF007550) | Two-tariff |
| Tariff control (EF008834) | External |
| Measurement type load profile (EF008844) | No |
| Escapement mechanism (EF008835) | No |
| Calibrated (EF008836) | No |
| Pulse output (EF008838) | Electrical |
| Pulse type (EF008839) | S0 |
| Pulse rate (EF008840) | 0 Imp/kWh (kvarh) |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Width in number of modular spacings (EF002950) | 4 |
| Width (EF000008) | 108 mm |
| Depth (EF000049) | 90 mm |
| Height (EF000040) | 70 mm |
| Type of interface (EF006977) | Other |
| EEC40 signature (EF008845) | No |
| With lock code (EF008846) | No |
| Number of positions total (counter) (EF004442) | 8 |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EME3PMMCT5 EME3PMMCT5 171631 EN_171631.pdf | 156 Kbytes |
|
