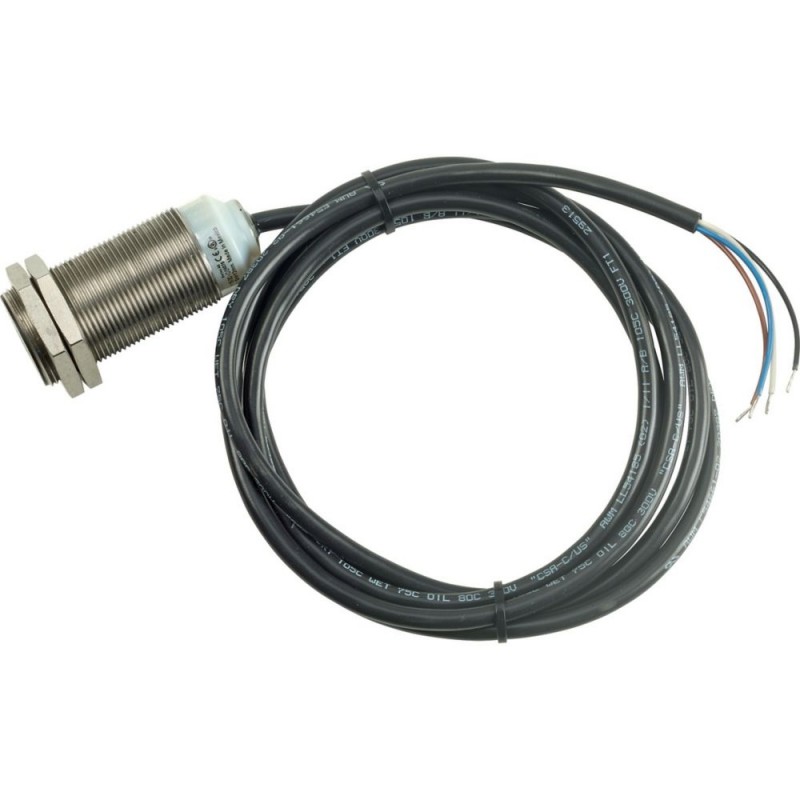

E59-A30A112C02-CV 166719 EATON ELECTRIC Proximity switch Inductive M30 Analog Sn 1-12mm 15 30 V DC 0 20mA 0 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E59-A30A112C02-CV 166719 EATON ELECTRIC Proximity switch Inductive M30 Analog Sn 1-12mm 15 30 V DC 0 20mA 0 ..

E59-A30A112C02-CV

166719

EATON-MOELLER

Proximity switch Inductive; M30; Analog; Sn=1-12mm; 15 - 30 V DC; 0 - 20mA; 0 - 10V; Cable 2m

E59-A30A112C02-CV

Proximity Sensor, M30, analog, Sn=1-12mm, 15-30VDC, 0-20mA, 0-10V, line 2m

More details


Sensors > Inductive proximity switch

Sensors

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $168.37
Unit price: $168.37

Quantity Price
1+$168.37
2+$147.01
3+$144.75
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Proximity Sensor, M30, analog, Sn=1-12mm, 15-30VDC, 0-20mA, 0-10V, line 2m
Proximity Sensor, Inductive Sensors, Product range: E59 AccuProx Series, Description: Current output (0 - 20 mA) and voltage output (0 - 10 V), Connection: 3-wire/4-wire, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 15 - 30 V DC, Rated switching distance: Sn= 1 - 12 mm, Type of mounting: Flush, Switching type: Analog, 2 m connection cable, Material: Stainless steel, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2

General specifications
Product name
Eaton E59 AccuProx analog inductive proximity sensor
Part no.
E59-A30A112C02-CV
EAN
4015081643684
Product Length/Depth
152.4 millimetre
Product height
44.45 millimetre
Product width
127 millimetre
Product weight
0.45 kilogram
Certifications
IEC/EN 60947-5-2
CSA Class No.: 3211-03
CE
CSA-C22.2 No. 14
UL
UL File No.: E166051
UL Category Control No.: NRKH, NRKH7
CSA
CSA File No.: 50513
UL 508
Product Tradename
E59 AccuProx
Product Type
Analog inductive proximity sensors
Product Sub Type
None
Public Consumption
Yes
PDH Status
Active
Product Family Description
ES-PCD-Eaton E59 AccuProx analog inductive proximity sensors
Globally Marketable
Yes
Product Specification Details
Actuation type
Metallic Target
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Category (EN 954-1)
B
Connection type
2 m connection cable
3-wire/4-wire
Degree of protection
IP67
NEMA 4X, 6, 13
Diameter sensor
30 mm
Diameter sensor [7EF007111]
mm
Electric connection type
Cable
Enclosure material
Metal
Enclosure material finishing
Other
Enclosure type
Cylinder, screw-thread
Explosion safety category for dust
None
Explosion safety category for gas
None
Height of sensor [7EF007283]
mm
Installation type
Concise
Interface type
None
LED indicator
Status indication of Operating voltage: Green LED
Status indication of Switching state: Red LED
Length of sensor [7EF007334]
mm
Material
Stainless steel
Max. output current at protected output [7EF004035]
mA
Mounting method
Flush mounting
Number of contact energized outputs with signalling function
0
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
0
Output current
0 - 20 mA
Output current at protected output - max
20 mA
Output voltage
0 - 10 V
Product category
E59 AccuProx Series
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
30 V
Rated control supply voltage (Us) at DC - min
15 V
Rated control supply voltage Us at AC 50HZ [7EF003978]
V
Rated control supply voltage Us at AC 60HZ [7EF003979]
V
Rated control supply voltage Us at DC [7EF003980]
V
Rated switching distance (Sn) - max
12 mm
Rated switching distance (Sn) - min
1 mm
Repeatability
1 %
Safety performance level (EN ISO 13849-1)
None
Sensor height
0 mm
Sensor length
69.6 mm
Shock resistance
30 g, Mechanical, Shock duration 11 ms
SIL (IEC 61508)
None
Supply voltage - max
30 V
Supply voltage - min
15 V
Supply voltage [7EF004127]
V
Switch function type
Other
Switching distance [7EF003647]
mm
Switching frequency
140 Hz
Switching frequency [7EF003587]
Hz
Switching output type
Analog
Temperature drift of sn
10 %
Type
Inductive sensor
Voltage rating - max
30 V
Voltage type
DC
Width sensor
0 mm
Width sensor [7EF007094]
mm

Technical data ETIM 8.0

Sensors (EG000026) / Inductive proximity switch (EC002714)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Safety-related proximity switch / Safety-related inductive proximity switch ([email protected] [AKE630014])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
69.6 mm
Diameter sensor
30 mm
Mechanical mounting condition for sensor
Concise
Switching distance
12 mm
Suitable for safety functions
No
Type of switch function
Other
Type of switching output
Other
Type of electric connection
Cable
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Metallic Target
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Max. output current at protected output
20 mA
Supply voltage
15 - 30 V
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
15 - 30 V
Voltage type
DC
Switching frequency
140 Hz
With monitoring function downstream switching devices
No
Material housing
Metal
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Interference resistance to magnetic fields
Degree of protection (NEMA)
4X, 6, 13
