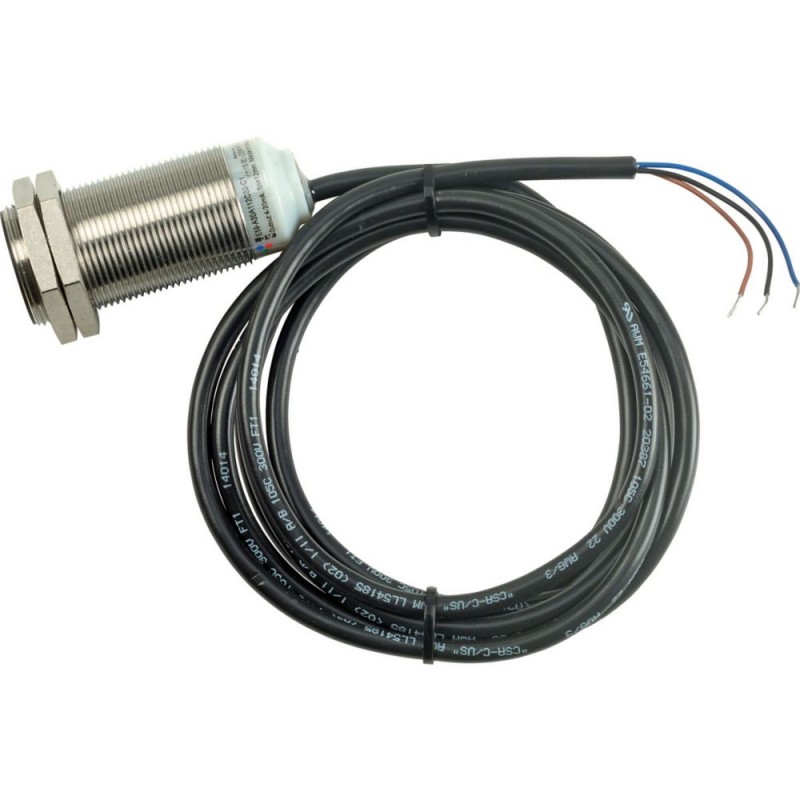

E59-A30A112C02-C1 166809 EATON ELECTRIC Proximity switch Inductive M30 Analog Sn 1-12mm 15 30 V DC 4 20mA Ca.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E59-A30A112C02-C1 166809 EATON ELECTRIC Proximity switch Inductive M30 Analog Sn 1-12mm 15 30 V DC 4 20mA Ca..

E59-A30A112C02-C1

166809

Y7-166809

EATON-MOELLER

Proximity switch Inductive; M30; Analog; Sn=1-12mm; 15 - 30 V DC; 4 - 20mA; Cable 2m

E59-A30A112C02-C1

Eaton Moeller® series E59 Proximity Sensor, M30, analog, Sn=1-12mm, 15-30VDC, 4-20mA, line 2m

More details


Sensors > Inductive proximity switch

Sensors

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $166.19
Unit price: $166.19

Quantity Price
1+$166.19
2+$144.98
3+$141.76
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton E59 AccuProx analog inductive proximity sensor
Catalog Number
166809
Model Code
E59-A30A112C02-C1
EAN
4015081643493
Product Length/Depth
152.4 mm
Product Height
44.45 mm
Product Width
127 mm
Product Weight
0.45 kg
Certifications
UL
UL File No.: E166051
CSA
CSA File No.: 50513
UL Category Control No.: NRKH, NRKH7
UL 508
CE
CSA-C22.2 No. 14
IEC/EN 60947-5-2
CSA Class No.: 3211-03

Product specifications

Type
Inductive sensor
Electric connection type
Cable
Enclosure material finishing
Other
Actuation type
Metallic Target
Enclosure material
Metal
Enclosure type
Cylinder, screw-thread
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Diameter sensor
30 mm
Number of contact energized outputs with signalling function
0
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
0
Output current at protected output - max
20 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Output current
4 - 20 mA
Voltage type
DC
Mounting method
Flush mounting
Material
Stainless steel
Connection type
3-wire/4-wire
2 m connection cable
Installation type
Concise
Degree of protection
IP67
NEMA 4X, 6, 13
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Status indication of Operating voltage: Green LED
Switch function type
Other
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
140 Hz
Voltage rating - max
30 V
Width sensor
0 mm
Product category
E59 AccuProx Series
Switching output type
Analog
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
30 V
Rated control supply voltage (Us) at DC - min
15 V
Rated switching distance (Sn) - max
12 mm
Rated switching distance (Sn) - min
1 mm
Repeatability
1 %
Sensor height
0 mm
Sensor length
69.6 mm
Supply voltage - max
30 V
Supply voltage - min
15 V

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SENSORS EN.pdf 27 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
E59-A30A112C02-C1 Y7-166809 166809 ES_166804.pdf 1 Mbytes E59-A30A112C02-C1 Y7-166809 166809 ES_166804.pdf
