> EATON - MOELLER>Connection Accessories for Enclosures>CU-BAND5X24X1-BK 119032 Y7-119032 ELECTRIC Copper band 400A, 5x24x1mm, black
Previous Product Next Product

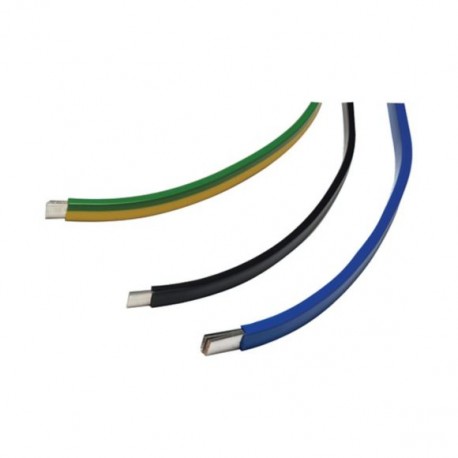

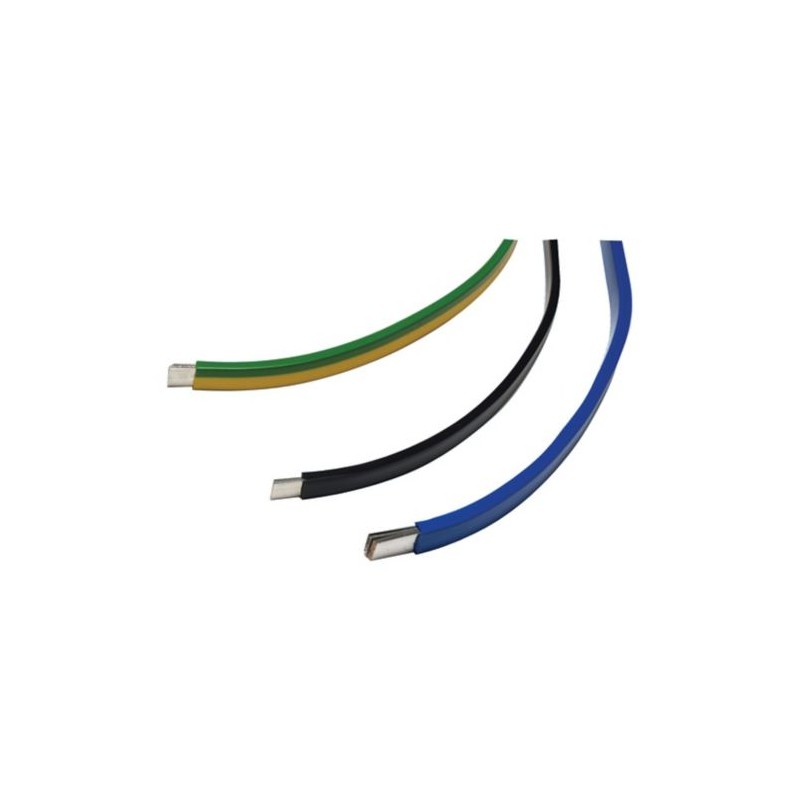

CU-BAND5X24X1-BK 119032 Y7-119032 EATON ELECTRIC Copper band 400A, 5x24x1mm, black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

CU-BAND5X24X1-BK 119032 Y7-119032 EATON ELECTRIC Copper band 400A, 5x24x1mm, black

CU-BAND5X24X1-BK

119032

Y7-119032

EATON-MOELLER

5

Copper band 400A, 5x24x1mm, black

CU-BAND5X24X1-BK

Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=5x24x1mm, color black, rated operational current Ie=400 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC

More details


Energy distribution systems > Wiring band

Connection Accessories for Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $1,579.31
Unit price: $315.86
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Copper band 400A, 5x24x1mm, black
Copper band isolated, laminated conductor E-Cu, tinned, UL approved up to max. 600VAC, insulating material heat resistant up to +105 °C, dimensions (number of layersxwidthxthickness)=5x24x1mm, color black, rated operational current Ie=400 A, self-extinguishing according to UL 94 V0, insulation resistance to IEC 60243-1 20 kV/mm, rated operating voltage Ue=690VAC

General specifications
Product name
Eaton xEffect Multi-Layer Copper Band Enclosures Switch- & Controlgear Enclosure
Part no.
CU-BAND5X24X1-BK
EAN
4015081171590
Product Length/Depth
2000 millimetre
Product height
5 millimetre
Product width
24 millimetre
Product weight
2.3 kilogram
Compliances
EN 60439-1
UL 758
UL CSA09 (max. 105 °C)
CE marking
EN 60439-3
RoHS conform
Certifications
UL (Category Control Number AVLV2)
North America (UL listed, certified by UL for use in Canada)
UL (File No. E248096)
Product Tradename
xEffect Multi-Layer Copper Band
Product Type
Enclosures
Product Sub Type
Switch- & Controlgear Enclosure
Delivery program
Type
General switchboard accessory
Accessory/spare part type
Copper band insulated
Color
Black, similar to RAL 9005
Amperage rating
400 A
Technical Data - Electrical
Voltage rating
1000 V AC, 1500 V DC
Voltage rating (UL CSA 13)
Max. 600 V AC, 750 V DC
Rated operation current (Ie)
400 A
Dielectric strength
20 kV/mm
Technical Data - Mechanical
Cross section
120 mm²
Number of fuse holders (knife blade)
5
Busbar thickness
9 mm
Dimensions - band specification
5 mm x 24 mm x 1 mm
Lamella thickness
1 mm
Additional information
Features
Self-extinguishing acc. UL 94 V0
Laminated
Special features
E‐Cu laminated conductor, tin-plated
UL approved up to max. 600 V AC
Insulating material heat resistant up to +105 °C
Used with
Appliance wiring material
Copper band isolated

Technical data ETIM 9.0

Energy distribution systems (EG000015) / Wiring band (EC001898)
Electric engineering, automation, process control engineering / Electrical insulation and connecting material / Energy distribution system / Wiring band (ecl@ss13-27-40-06-12 [ACO387016])
Rated operation current
400 A
Length
2000 mm
Width
24 mm
Thickness
9 mm
Laminated
Yes
Lamella thickness
1 mm
Number of lamellas
5

ETIM for 119032 Power distribution systems (EC001898)
Feature Name Feature Value
Rated operation current (EF007679) 400 A
Length (EF001438) 2000 mm
Width (EF000008) 24 mm
Thickness (EF000125) 9 mm
Laminated (EF005508) Yes
Lamella thickness (EF006537) 1 mm
Number of lamellas (EF006538) 5
